MA25400A mm-Wave Module 2-2 MA25400A mm-Wave Module and Bracket
VectorStar ME7838x/x4 Modules RM PN: 10410-00311 Rev. F 2-3
Index Description
1 MA25400A Millimeter-Wave Module in Bracket as-shipped.
2
0.6 mm Flange Connector
• Tighten using a hex torque wrench set to 6 cN·m (0.5 lbf-in).
• Recommended is Anritsu 01-530-R.
3
Knurled Head Thumbscrews (4 total) M3 × 8 mm.
• Threaded hole in module is 10 mm deep.
• Tighten finger tight. Do not over-torque. Do not bottom out screws.
• If the module is installed in a user-provided bracket, use hand tightening, making sure that between
5 mm and 6 mm of screw threads are engaged in the module body.
4 Module Mounting Bracket
5 Module Power/Signal Cable Restraint
6 Power/Signal Latching Bi-Lobe™ Connector
7
TEST SSMC Connector
• To tighten, use a 4 mm (5/32 in) torque end wrench set to less than 0.17 N·m (1.5 lbf·in).
• Recommended is Anritsu 01-529-R torque wrench.
8
LO K Connector
• To tighten, use an 8 mm (5/16”) torque end wrench set to 0.9 N·m (8 lbf·in).
• Recommended is Anritsu 01-201.

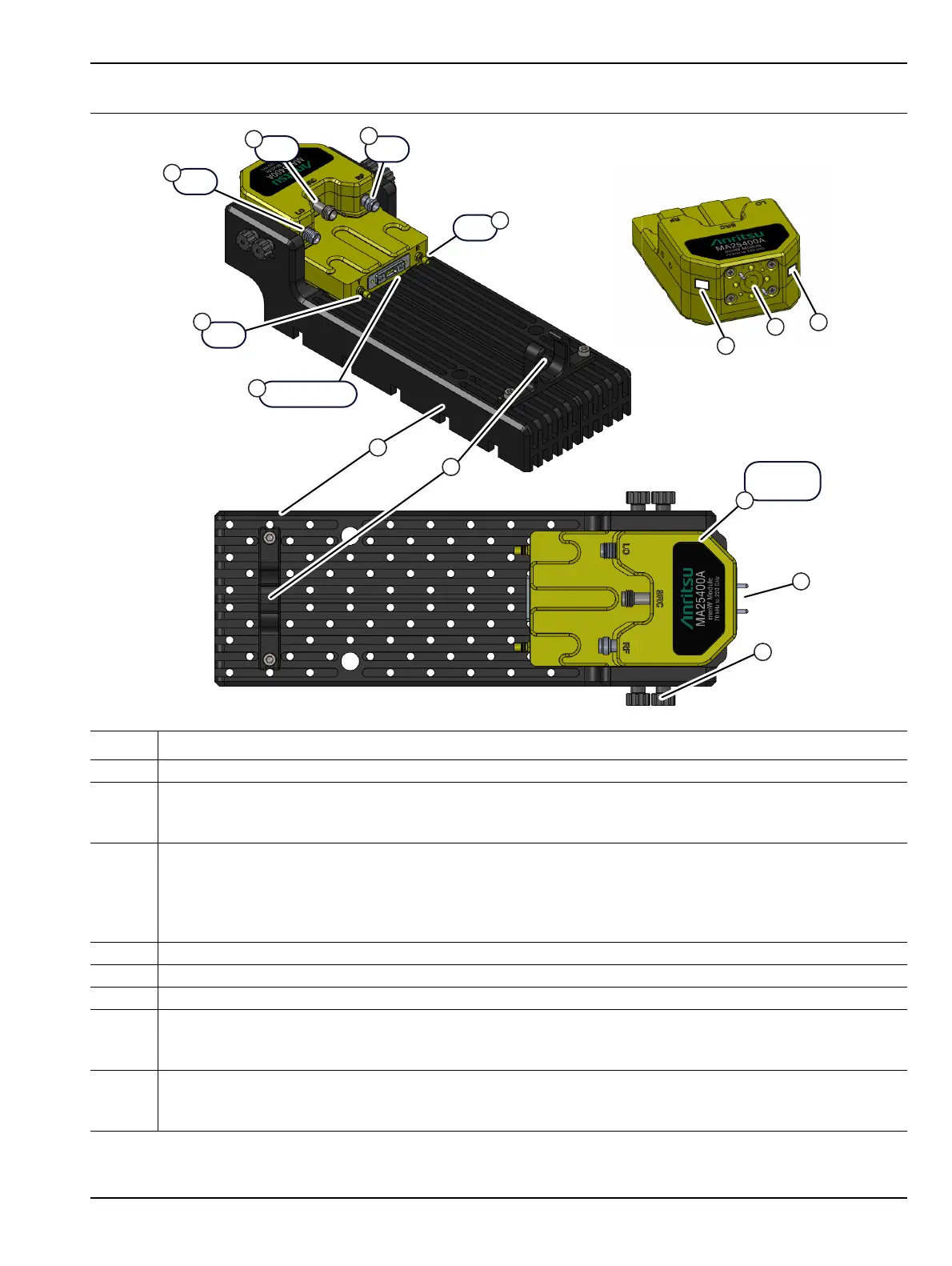

Figure 2-3. MA25400A Millimeter-Wave Module Description (1 of 2)
MA25400A
Module
1
2
3
5
4
2
12
13
Power/Signal
6
TEST
7
RF
10
SRC
9
REF
11
LO
8
