Mounting in User-Supplied Bracket 8-4 MA25300A Module Outline
VectorStar ME7838x/x4 Modules RM PN: 10410-00311 Rev. F 8-3
8-4 MA25300A Module Outline
Figure 8-2 shows the outline mechanical requirements for the MA25300A Millimeter-Wave Module.
All dimensions in millimeters.
1 – For mounting, use M3 screws sufficient length that use the maximum number of module housing threads.
A thread engagement of 5 to 6 mm is recommended.
Do not bottom out fasteners.
2 – The module housing is copper. Do not over-torque screws.
3 – The threaded module mounting holes are M3 tapped x 10 mm deep, two each side, four total.

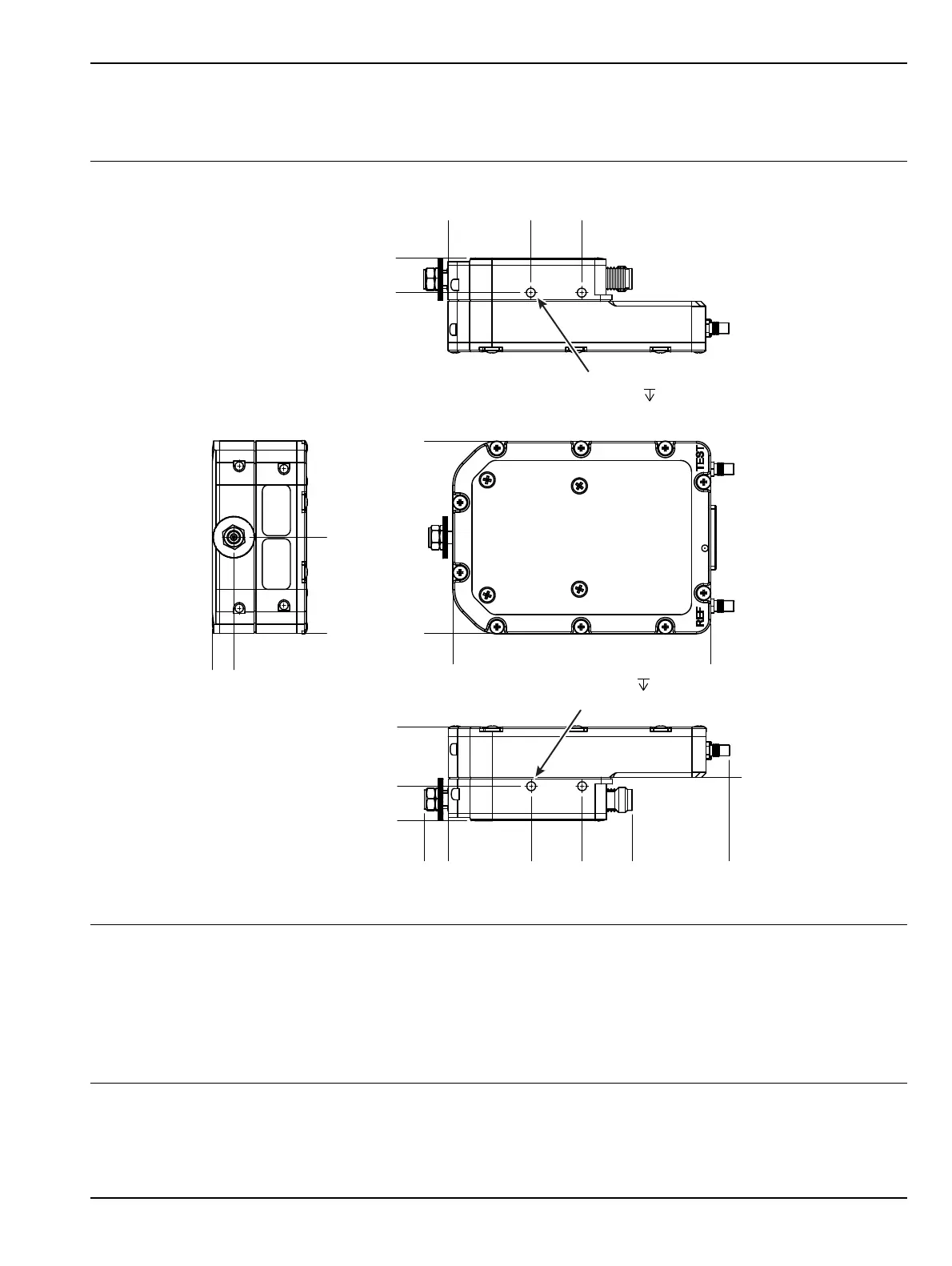

Figure 8-2. MA25300A Millimeter-Wave Module Outline Drawing
2X
M3 TAPPED HOLES
10.0
FOR MOUNTING HEAT SINK
2X
M3 TAPPED HOLES
10.0
FOR MOUNTING HEAT SINK
0
2X 9.72
26.4
12.2
0
6.8
23.23
37.53
51.5
78.7
0
2X 9.72
0
23.23
37.53
0
72.3
0
54.0
0
6.0
0
27.0
