Waveguide Adapter Kit Instructions 7-2 Adapter Installation
VectorStar ME7838x/x4 Modules RM PN: 10410-00311 Rev. F 7-3
7-2 Adapter Installation
During installation, refer to Figure 7-3 for item number reference.
Caution
To avoid connector damage or inaccurate measurements, before making any connections, ensure
the connectors are clean, undamaged, and meet pin depth specification. Observe connector torque
requirements where indicated in this guide.
Note
The following required items are not included in the Waveguide Adapter Kit.
• 01-201 Torque Wrench 0.90 N·m (8 lbf·in) for V and K connector)
• 01-504 Torque Wrench 0.45 N·m (4 lbf·in) for 1 mm connector)
Index Description
Part
Number Index Description
Part
Number
4
Set Screws M2 x 3 mm long
(quantity 3 installed on bracket (9)
+ quantity 3 spares in vial)
3-905-2779 11 mmW Module
3744x-EE
3744x-EW
7
Socket Head Screw (installed on
bracket (item 9)), M3 x 9 mm long
3-74212 12 Heat Sink Assembly
3-73611
3-73612
8
Waveguide Adapter – WR-10
Waveguide Adapter – WR-12
Waveguide Adapter – WR-15
3-1091-400
3-1091-401
3-1091-402
13
Thumb Screws
(Part of Heat Sink Assembly, Qty – 6)
3-73615
9
Adapter Bracket (W band)
Adapter Bracket (E band)
Adapter Bracket (V band)
3-74057-1
3-74057-2
3-74057-3
14
01-201 Torque Wrench
0.90 N·m (8 lbf·in) for V and K
connector
Not included in WG Adapter Kit
10 V Termination V210 15
01-504 Torque Wrench
0.45 N·m (4 lbf·in) for 1 mm
connector
Not included in WG Adapter Kit

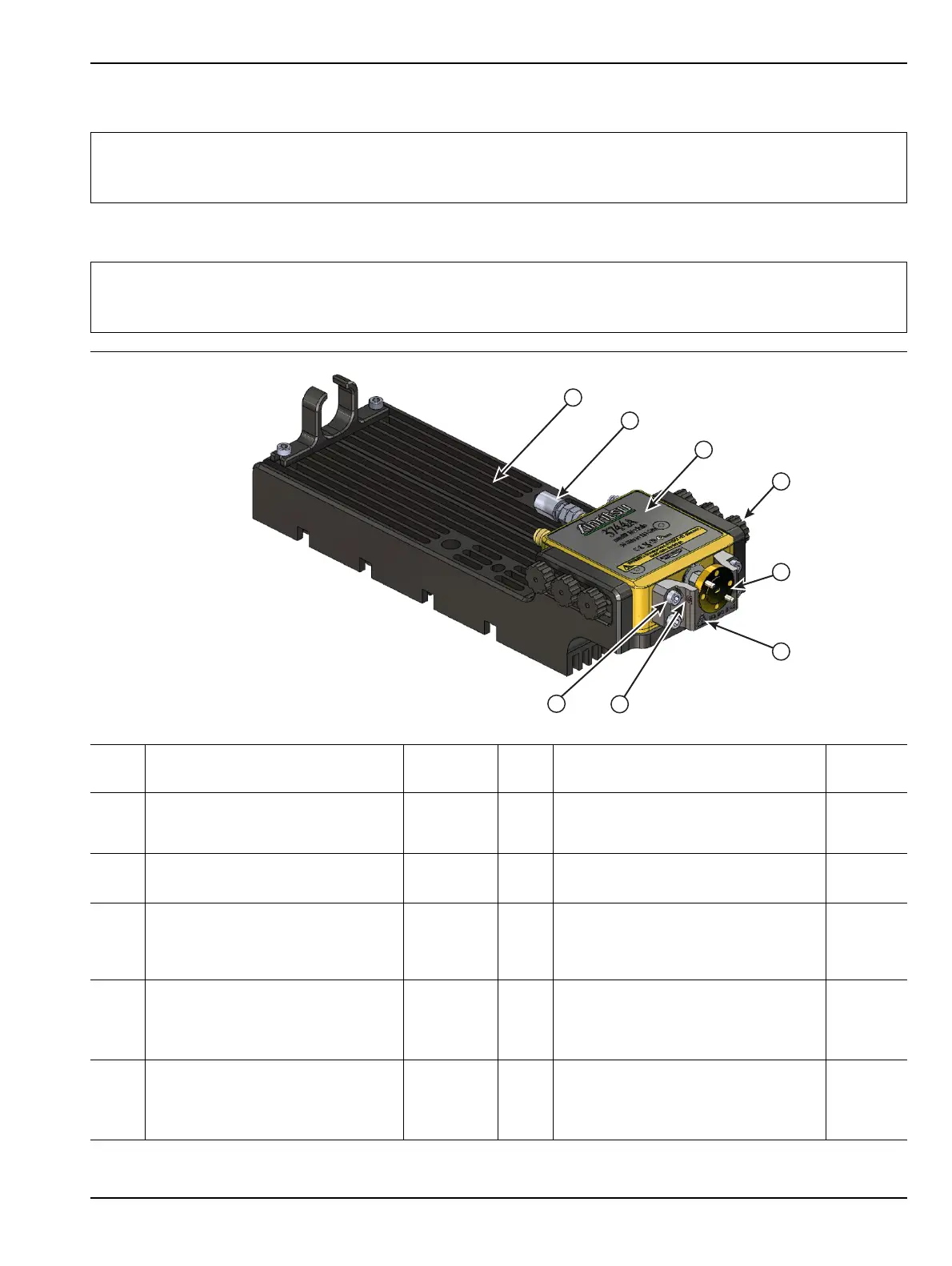

Figure 7-3. Waveguide Installation Reference
