Anritsu MA25400A - 3744 X-Ee;3744 X-EW Module Outline

Mounting in User-Supplied Bracket 8-6 3744x-EE/3744x-EW Module Outline
VectorStar ME7838x/x4 Modules RM PN: 10410-00311 Rev. F 8-5
8-6 3744x-EE/3744x-EW Module Outline
Figure 8-4 shows the outline mechanical requirements for the 3744A-EE, 3744A-EW, 3744E-EE and
3744E-EW Millimeter-Wave Modules.
All dimensions in millimeters.
1 – For mounting, use M2 screws sufficient length that use the maximum number of module housing threads.
A thread engagement of 5 to 6 mm is recommended.
Do not bottom out fasteners.
2 – The module housing is copper. Do not over-torque screws.
3 – The threaded module mounting holes are M2 tapped x 8.6 mm deep, three each side, six total.

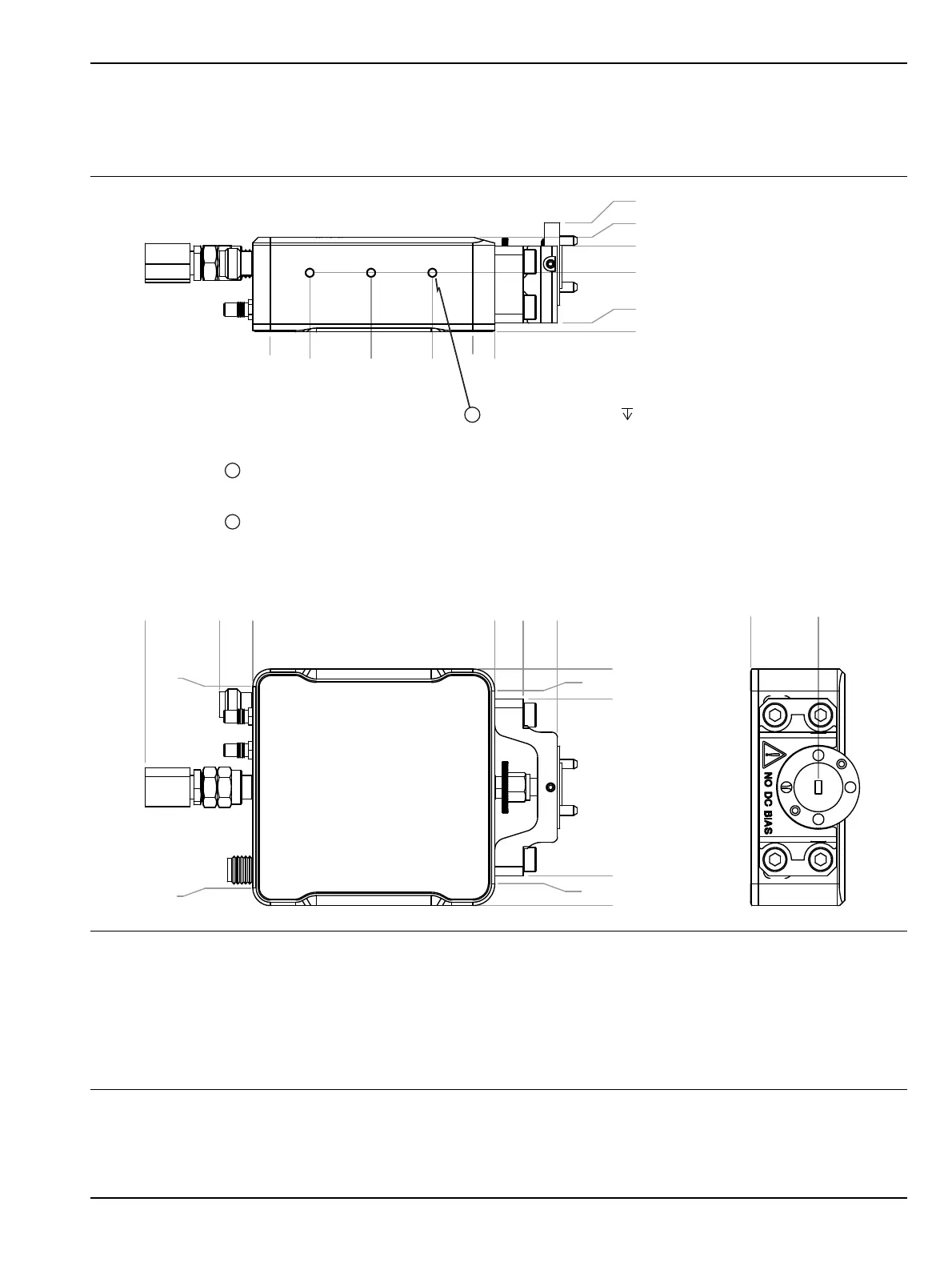

Figure 8-4. 3744x-EE/3744x-EW Millimeter-Wave Module Outline Drawing
0 55.3 63 80
0
54.00
6.8
47.2
6.5 14.3
0
14.26 28.26 42.26
0
1.97
13.47
21.51
24.88
19.60
0 15.5
5.0
4.0
50.0
49.0
Use M2 screws of sucient length for mounting that use the recommended
number of threads in the module housing. The recommended thread engagement
is 5 to 6 mm. Do not bottom out fastners.
The module housing material is copper. Do not over torque fasteners.
1
2
M2 TAPPED HOLES 8.6
3 EACH SIDE
3
51.3
5.0
