MA25300A mm-Wave Module 3-2 MA25300A mm-Wave Module and Bracket
VectorStar ME7838x/x4 Modules RM PN: 10410-00311 Rev. F 3-3
Alternate Configuration
If required, the module can be turned over for different 0.8 mm connector access as shown in Figure 3-2.
9
SRC Connector
To tighten, use an 8 mm (5/16”) torque end wrench set to 0.9 N·m (8 lbf·in).
Recommended is Anritsu 01-201.
10
RF V Connector
To tighten, use an 8 mm (5/16”) torque end wrench set to 0.9 N·m (8 lbf·in).
Recommended is Anritsu 01-201.
11
REF SSMC Connector
To tighten, use a 4 mm (5/32 in) torque end wrench set to less than 0.17 N·m (1.5 lbf·in).
Recommended is Anritsu 01-529-R torque wrench.
12 Factory Calibrated Port Assignment Label
13 Module Serial Number Label
Index Description
1 The module can be mounted in an alternate position by removing the knurled thumbscrews and turning
the module upside down.
In this orientation, the 0.8 mm connector is farthest from the top of the bracket.
For ease of connection, attach the cables before mounting the module in the bracket.
2 Before attaching the module to the bracket, connect to the bottom row of connectors first, starting with
the middle and using torque factors described above:
•RF
•SRC
•LO
3 Connect the top row of connectors left and right side, the middle. Use the torque factors described
above:
•REF
•Power/Signal
TEST

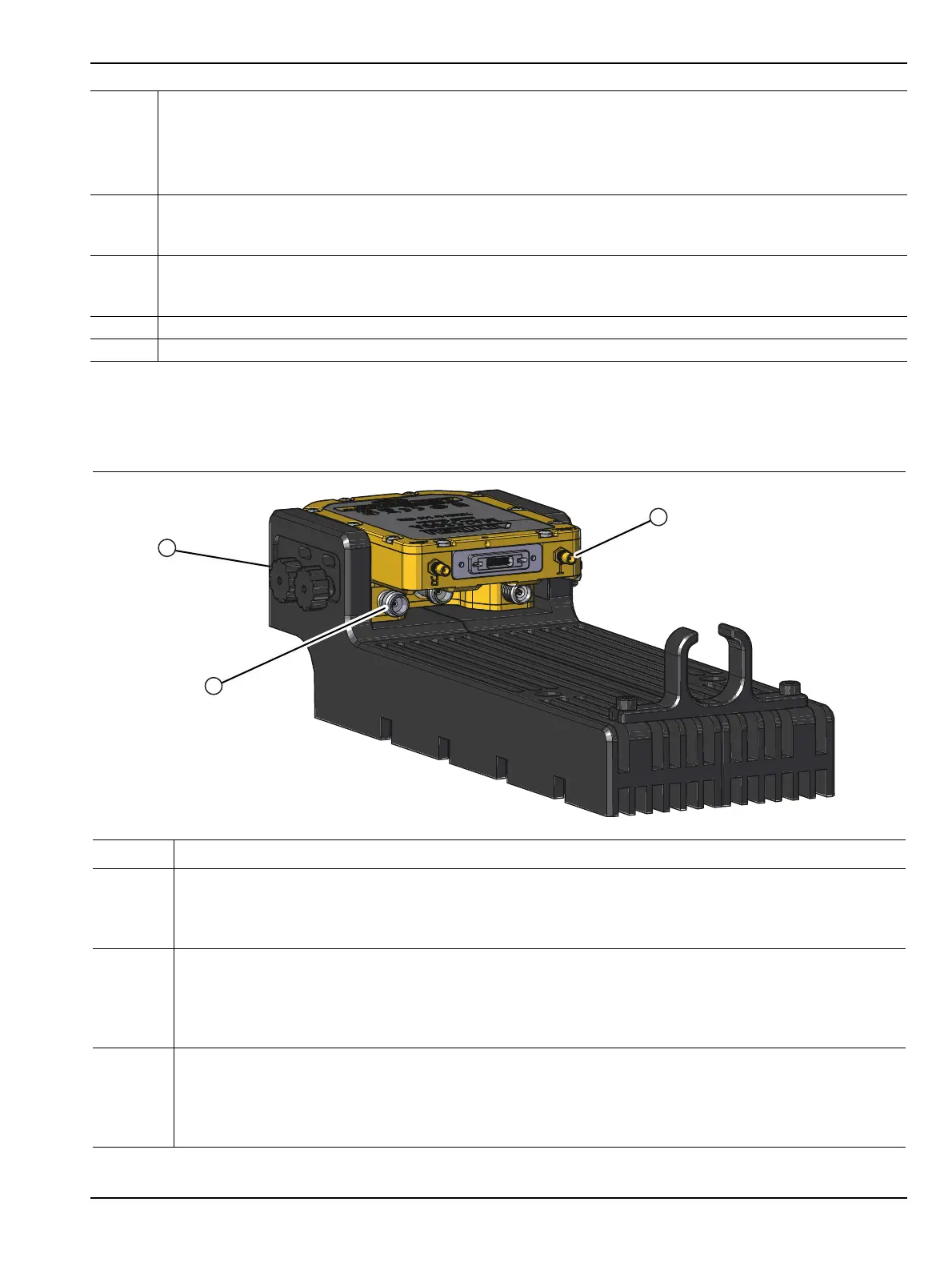

Figure 3-2. MA25300A Millimeter-Wave Module – In Bracket – Alternate Module Orientation
Figure 3-1. MA25300A Millimeter-Wave Module Description (2 of 2)
2
3
1
