3-2 MA25300A mm-Wave Module and Bracket MA25300A mm-Wave Module
3-2 PN: 10410-00311 Rev. F VectorStar ME7838x/x4 Modules RM
Index Description
1 MA25300A Millimeter-Wave Module in Bracket as-shipped.
2
0.8 mm Connector
• To tighten, use a torque end wrench and a plain end wrench.
• 0.8 – 6 mm Torque End Wrench set to 0.45 N·m (4 lbf·in). Recommended is Anritsu 01-524.
• 0.8 – 6 mm / 7 mm Open End Wrench. Recommended is Anritsu 01-525.
3
Knurled Head Thumbscrews (4 total) M3 × 8 mm.
• Threaded hole in module is 10 mm deep.
• Tighten finger tight. Do not over-torque. Do not bottom out screws.
• If the module is installed in a user-provided bracket, use hand tightening, making sure that between
5 mm and 6 mm of screw threads are engaged in the module body.
4 Module Mounting Bracket
5 Module Power/Signal Cable Restraint
6 Power/Signal Latching Bi-Lobe™ Connector
7
TEST SSMC Connector
• To tighten, use a 4 mm (5/32 in) torque end wrench set to less than 0.17 N·m (1.5 lbf·in).
• Recommended is Anritsu 01-529-R torque wrench.
8
LO K Connector
• To tighten, use an 8 mm (5/16”) torque end wrench set to 0.9 N·m (8 lbf·in).
• Recommended is Anritsu 01-201.

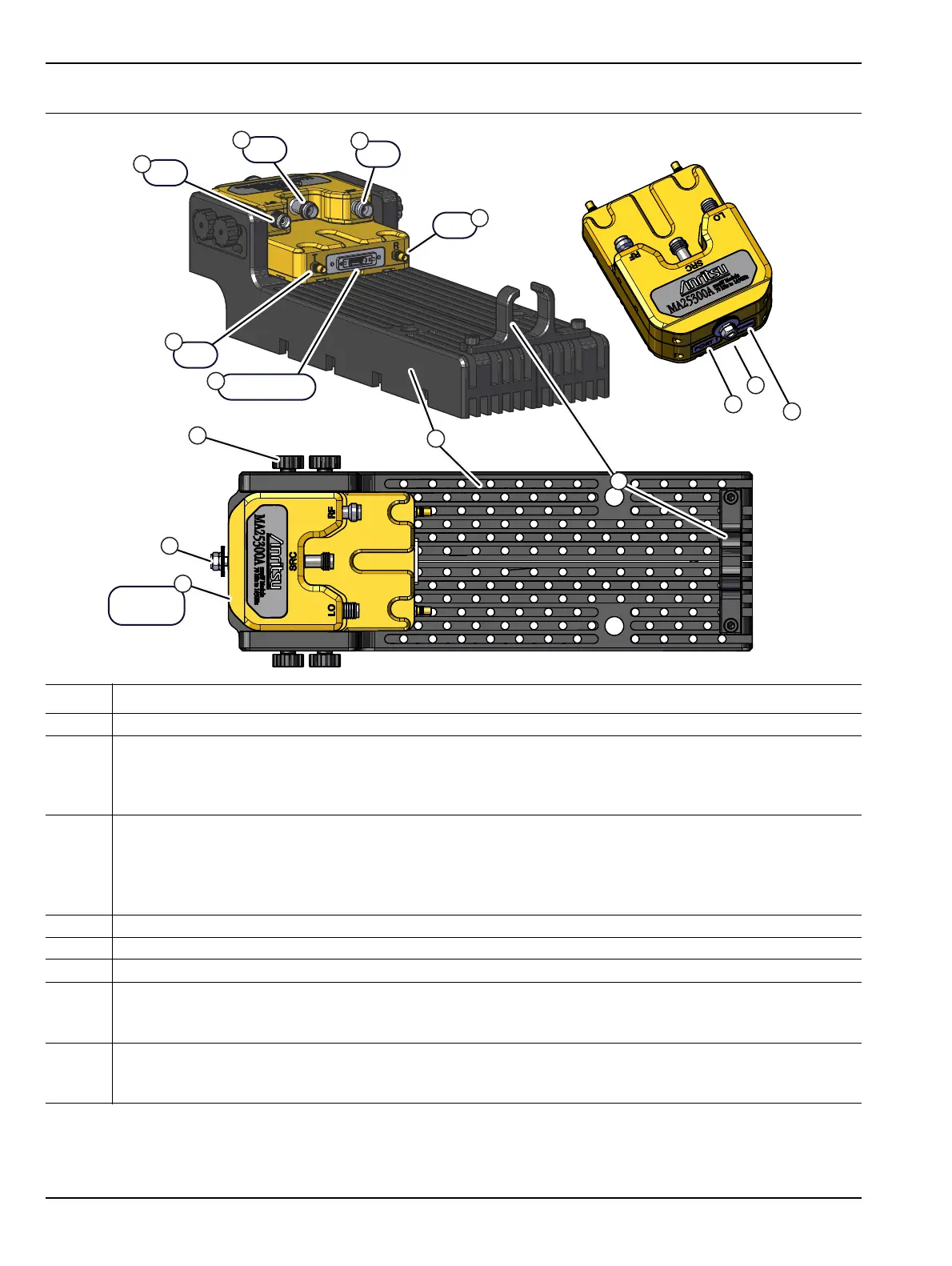

Figure 3-1. MA25300A Millimeter-Wave Module Description (1 of 2)
Power/Signal
MA25300A
Module
1
2
3
5
4
2
12
13
SRC
LO
6
RF
REF
TEST
7
10
9
11
8
