3743A/3743E mm-Wave Module 4-2 3743A/3743E mm-Wave Module and Bracket
VectorStar ME7838x/x4 Modules RM PN: 10410-00311 Rev. F 4-3
Alternate Configuration
If required, the module can be turned over for different W connector elevation as shown below in Figure 4-2.
9
REF SSMC Connector
• To tighten, use a 4 mm (5/32 in) torque end wrench set to less than 0.17 N·m (1.5 lbf·in).
• Recommended is Anritsu 01-529-R torque wrench.
10
TEST SSMC Connector
• To tighten, use a 4 mm (5/32 in) torque end wrench set to less than 0.17 N·m (1.5 lbf·in).
• Recommended is Anritsu 01-529-R torque wrench.
11 Power/Signal Latching Bi-Lobe™ Connector
12 Factory Calibrated Port Assignment Label
13 Module Serial Number Label
Index Description
1 The module can be placed in an alternate position by removing the Knurled Thumbscrews and turning
the module upside down.
• In this orientation, the W (1mm) connector is farthest from the bottom of the bracket.
•The W (1mm) connector is on the same plane as the SRC connector.
2 Connect the bottom row of connectors first, from middle to right side, and then left side, using torque
factors described above:
• REF
• TEST
• Power/Signal
3 Connect the top row of connectors last, from middle to right side, then left side, using torque factors
described above:
• SRC
• RF
• LO

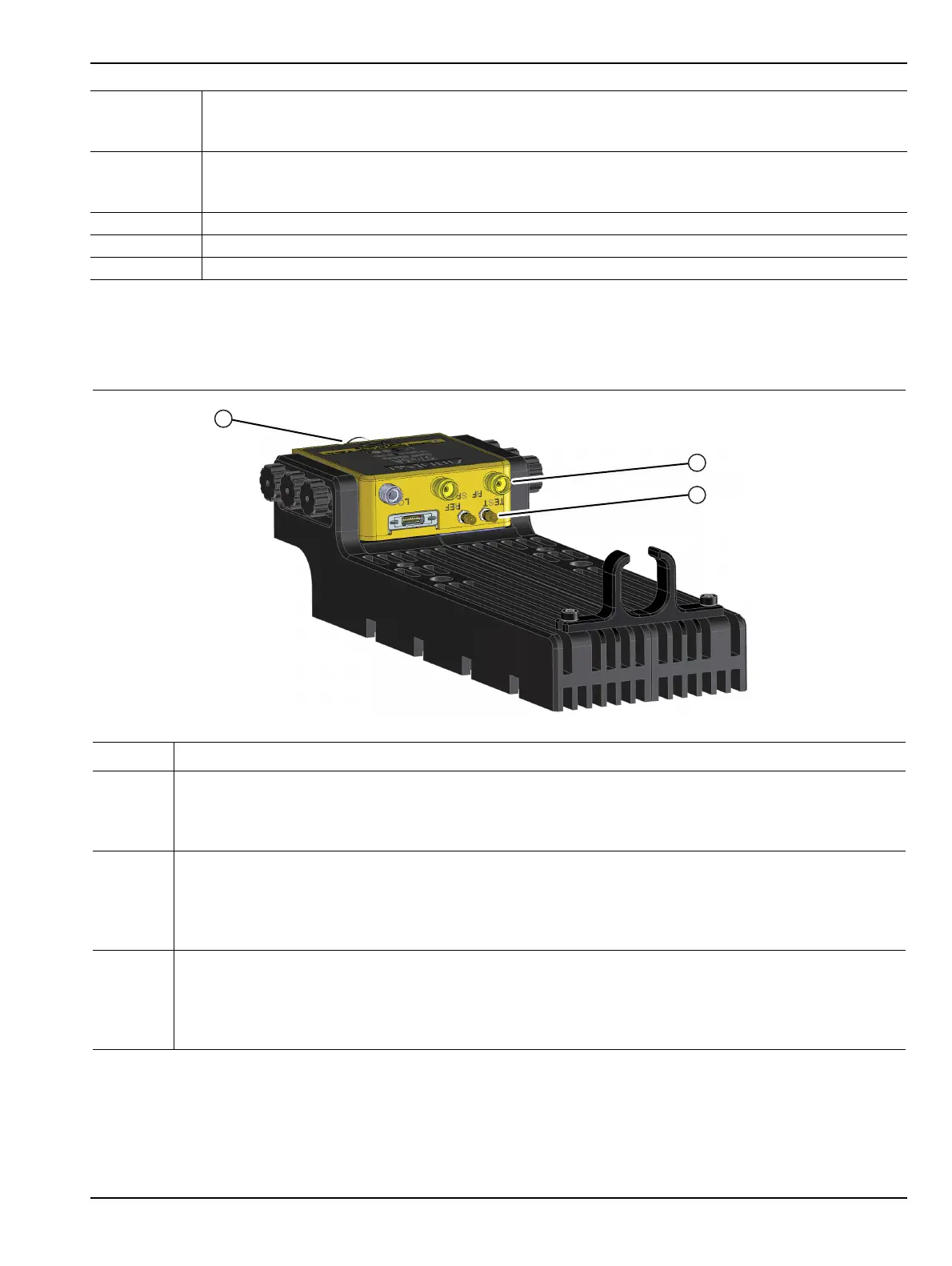

Figure 4-2. 3743A/E Millimeter-Wave Module – In Bracket – Alternate Module Orientation
Figure 4-1. 3743A/E Millimeter-Wave Module Description (2 of 2)
To Next Page
