5-2 3744x-EE/EW mm-Wave Module and Bracket 3744x-EE/EW mm-Wave Module
5-2 PN: 10410-00311 Rev. F VectorStar ME7838x/x4 Modules RM
Index Description
1 3744x-EE/EW Millimeter-Wave Module in bracket
2 WR-10 or WR-12 Waveguide Adapter to W (1mm) Connector
• Tighten using a torque end wrench and a plain end wrench.
• 6 mm Torque End Wrench set to 0.45 N·m (4 lbf·in). Recommended is Anritsu 01-504.
• 6 mm / 7 mm Open End Wrench. Recommended is Anritsu 01-505.
3 Knurled Head Thumbscrews (6 total) M2 × 8 mm.
• Threaded hole in module is 8.6 mm deep
• Tighten finger tight. Do not over-torque. Do not bottom out screws
• If the module is installed in a user-provided bracket, use hand tightening, making sure that between
5 mm and 6 mm of screw threads are engaged in the module body.
4 Module Mounting Bracket
5 Module Power/I/O Cable Restraint
6 RF V Connector
• To tighten, use an 8 mm (5/16”) torque end wrench set to 0.9 N·m (8 lbf·in).
• Recommended is Anritsu 01-201.
7 SRC V Connector (Terminated)
• To tighten, use an 8 mm (5/16”) torque end wrench set to 0.9 N·m (8 lbf·in).
• Recommended is Anritsu 01-201.
8 LO K Connector
• To tighten, use an 8 mm (5/16”) torque end wrench set to 0.9 N·m (8 lbf·in).
• Recommended is Anritsu 01-201.

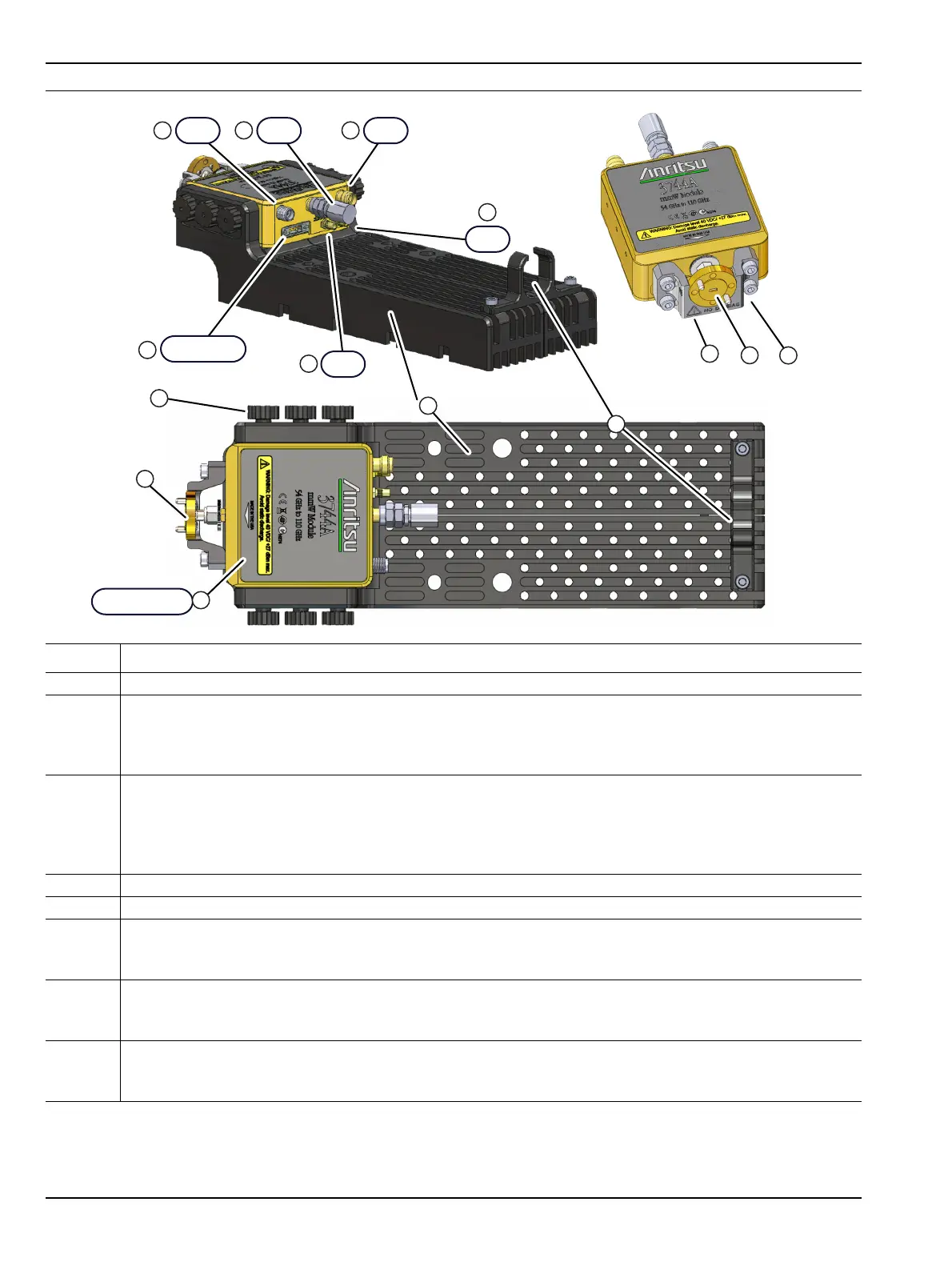

Figure 5-1. Millimeter-Wave 3744A/E-xx Module Description (1 of 2)
Test
7
LO
Power/Signal
6
RF
3744A/E Module
REF
SRC
1
2
3
5
9
11
4
8
2
10
12
13
