6-2 3744x-Rx Millimeter-Wave Module and Bracket 3744x-Rx Receiver Module
6-2 PN: 10410-00311 Rev. F VectorStar ME7838x/x4 Modules RM
Index Description
1 3744A/E-Rx Millimeter-Wave Module in bracket
2 W (1mm) Connector
• To tighten, use a torque end wrench and a plain end wrench.
• 6 mm Torque End Wrench set to 0.45 N·m (4 lbf·in). Recommended is Anritsu 01-504.
• 6 mm / 7 mm Open End Wrench. Recommended is Anritsu 01-505.
3 Knurled Head Thumbscrews (6 total) M2 × 8 mm.
• Threaded hole in module is 8.6 mm deep
• Tighten finger tight. Do not over-torque. Do not bottom out screws
• If the module is installed in a user-provided bracket, use hand tightening, making sure that between 5 mm
and 6 mm of screw threads are engaged in the module body.
4 Module Mounting Bracket
5 Module Power/I/O Cable Restraint
6 SRC V Connector – Not used
7 RF V Connector – Not used
8 LO – K Connector
• To tighten, use an 8 mm (5/16”) torque end wrench set to 0.9 N·m (8 lbf·in).
• Recommended is Anritsu 01-201.
9 REF SSMC – Not used
10 TEST SSMC Connector
• To tighten, use a 4 mm (5/32”) torque end wrench set to less than 0.17 N·m (1.5 lbf·in).
• Recommended is Anritsu 01-529-R torque wrench.
11 Power/Signal Latching Bi-Lobe™ Connector
12 Module Serial Number Label

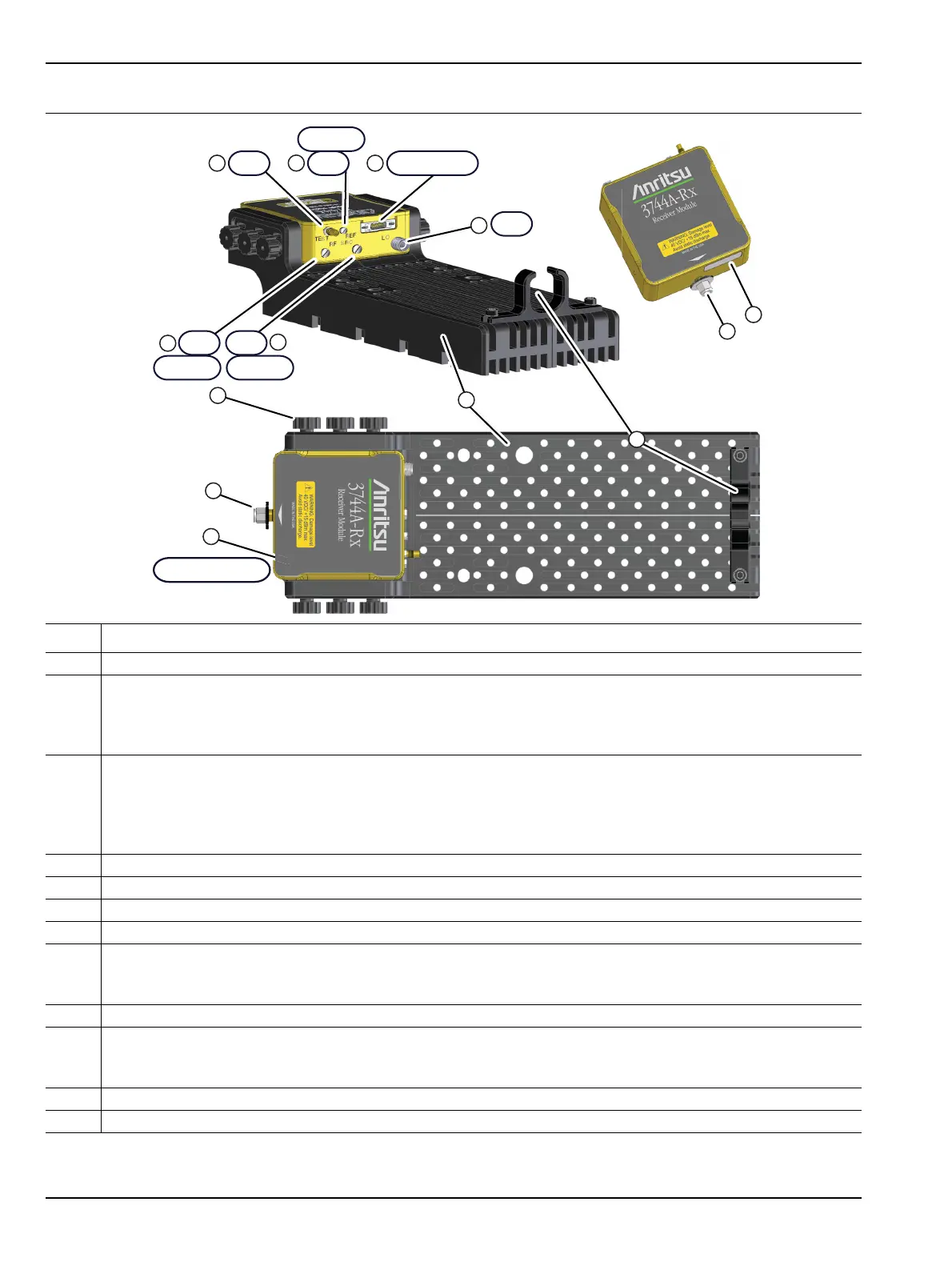

Figure 6-1. Millimeter-Wave 3744A/E-Rx Module Description
1
2
3
5
10
9
4
8
11
TEST
REF
7
SRC
LO
Power/Signal
6
RF
(Not used) (Not used)
(Not used)
3744A/E-Rx Module
2
12
