Setting Up Limit Lines
3-8 PN: 10580-00277 Rev. E Spectrum Master UG
Complex Limit Lines
Spectrum Analyzer and Interference Analysis Modes
Figure 3-2 shows an example of a complex limit line. After the right half of the limit line was
completed, the left half of the limit line was built by pressing the Limit Advanced submenu key
and then pressing the Limit Mirror submenu key.

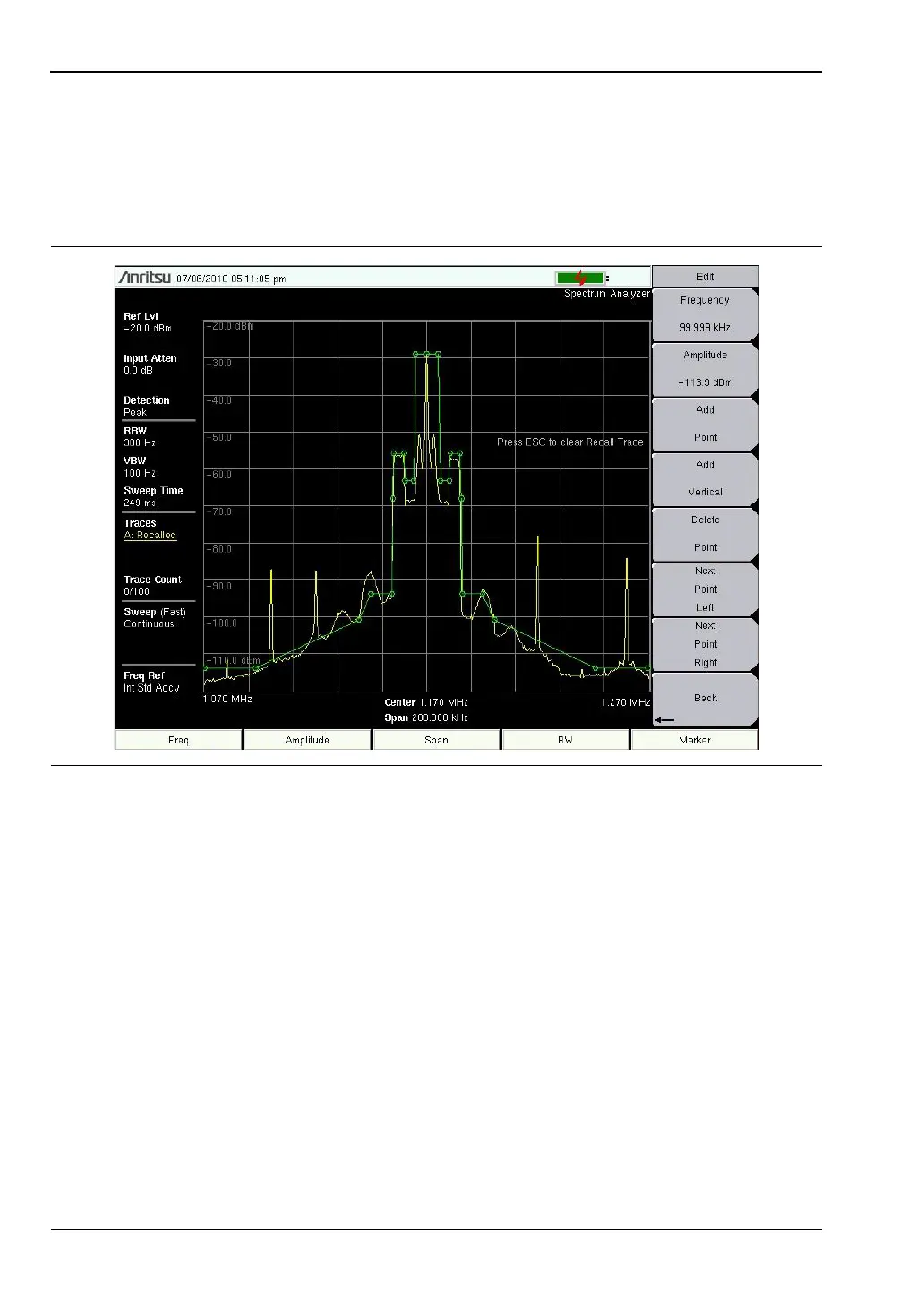

Figure 3-2. Complex Limit Line Example
