1
Panel

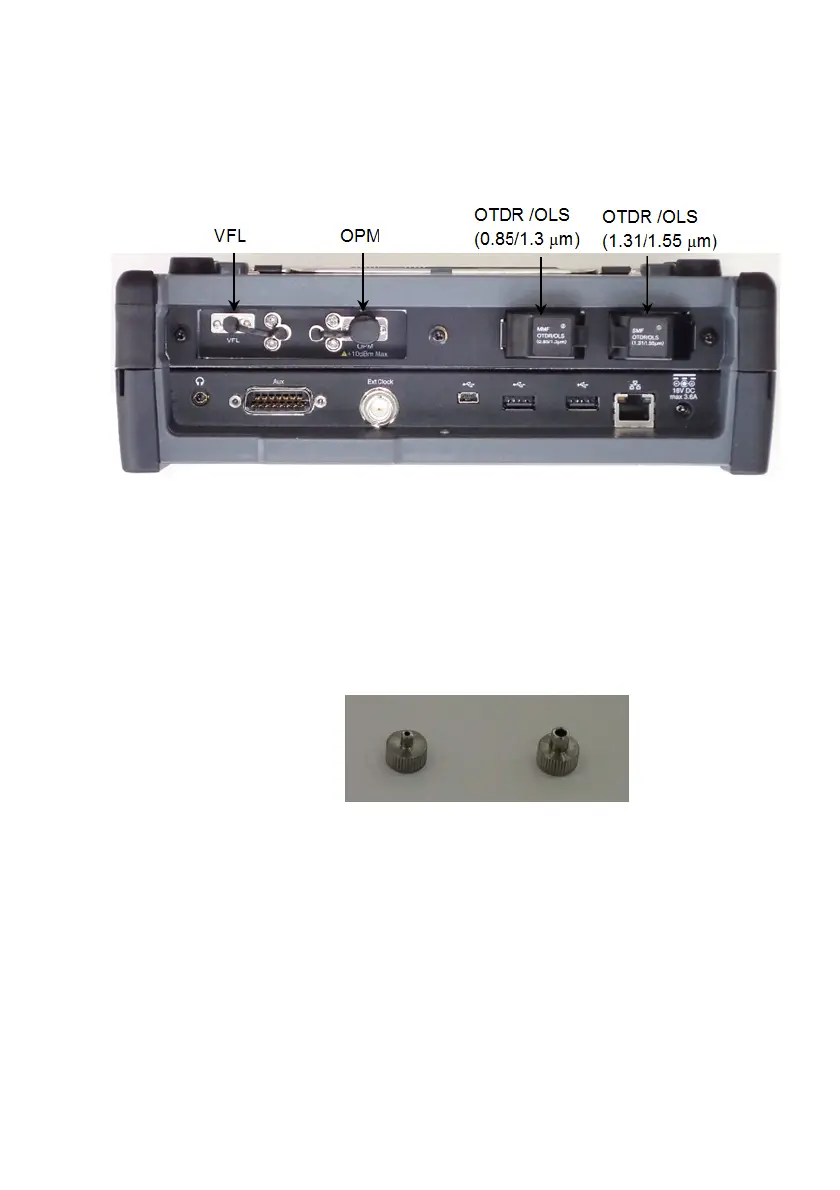

MU100021A panel is shown below. MU100020A and MU100022A do not
have the OTDR/OLS (0.85/1.3
m) connector.
*: OTDR/OLS (1.31/1.55/1.625
m) is printed on MU100022A.
VFL: Visual Fault Locator (Option 002)
Visible red light is output.
OPM: Optical Power Meter
Input port for the power measurement. 1.25 mm
or
2.5mm
ferrule can be connected by using the supplied
Universal Connectors.
Universal Connector
OTDR/OLS: Optical Time Domain Reflectometer / Optical Light Source
Port for the OTDR measurement and light source output.
SMF (Single mode fiber) OTDR/OLS connector depends on the
option:
•
Option 010: UPC Connector
•
Option 011: APC Connector
*
