ANTEK ECE10CM Series User Manual

Page 18 of 39 Technical Documentation ECE10CM, DC10CM

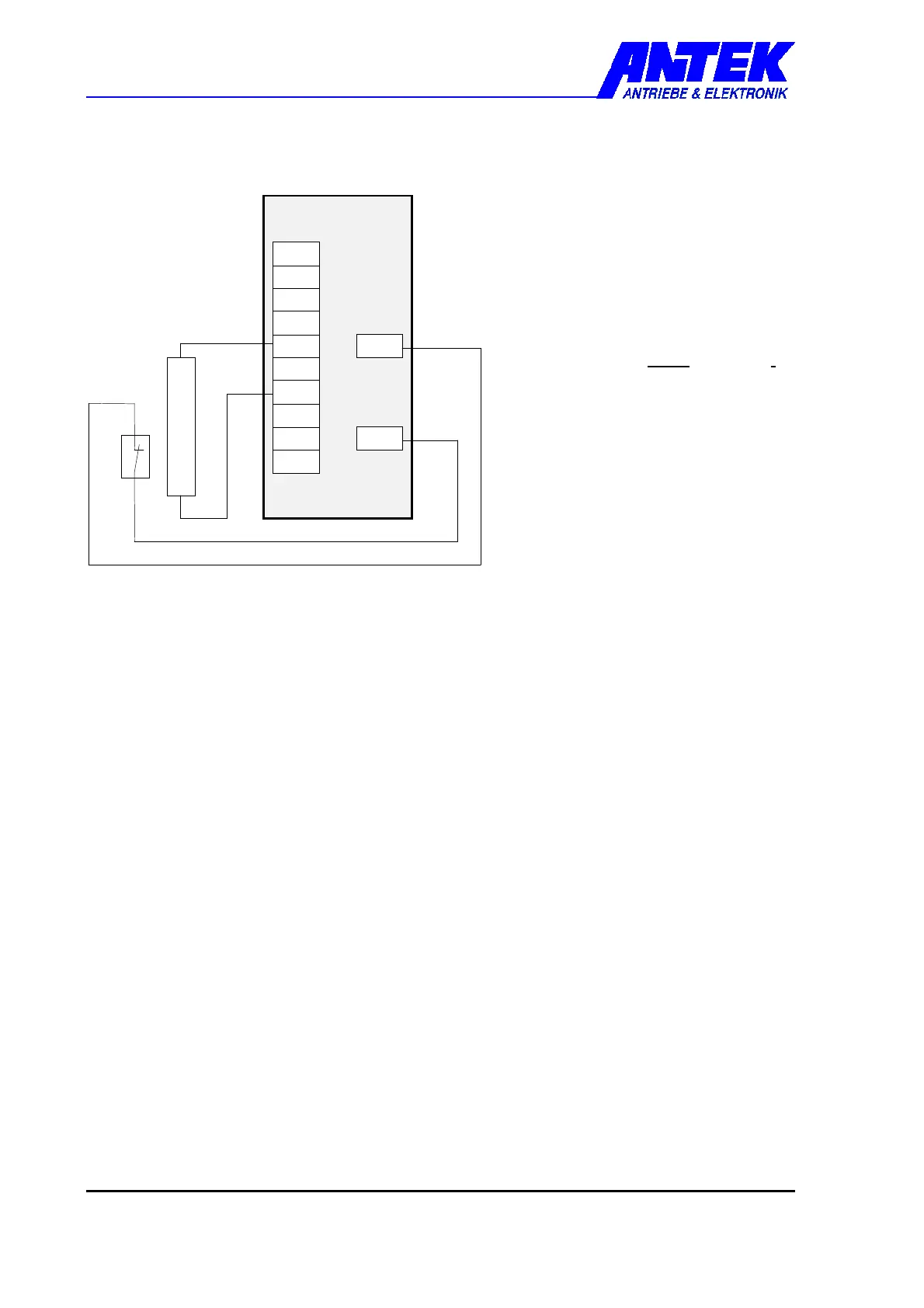

4.4.4 Ballast Resistor Connection
♦ The size of the ballast resistor
should be agreed with the
manufacturer.
♦ Monitoring the ballast resistor by
means of a thermal protection
contact is recommended.
If no thermal protection contact is
used, input X5-3 must be bridged to
HIGH potential e.g. +15V X6-3.
V
P E
R B
U
L 1
N
L -
P E
X 2
X 6 - 3
X 5 - 3
ϑ
W
L +
ballast resistor
drive control
