4.4 Connection

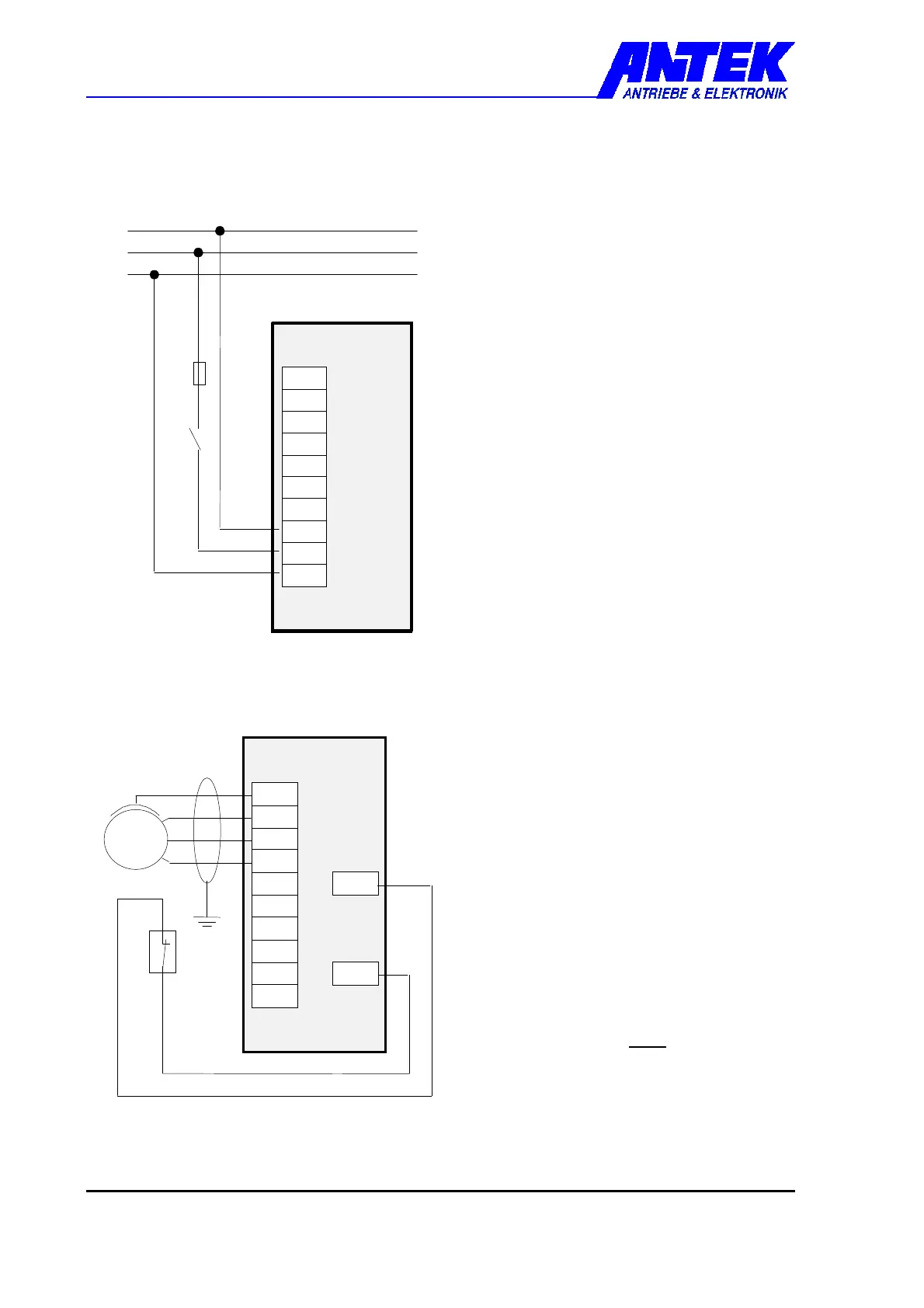

4.4.1Mains
♦ Min. cable cross-section 1.5 mm²
♦ Connect mains cable to plug-in terminals
N, L1, PE
(Starting torque: 0.5 - 0.6 Nm)
4.4.2Motor Connection
Permanently Excited Three-Phase-Synchronous Motor (ECE)
♦ Min. cable cross-section 1.5 mm²
♦ Connect motor cable to plug-in
terminals
PE, W, V, U
(Starting torque: 0.5 - 0.6 Nm)
♦ Insert screen correctly in accordance
with EMC wiring.
♦ For feedback system and sensor wire
connections see Chapter 4.4.8
♦ Monitoring the motor temperature by
means of a thermal protection contact
is recommended.
If no thermal protection contact is
used, input X5-2 must be bridged to
HIGH potential e.g. +15V X6-3.
P
E
L
-
R
B
U
L
1
N
L
+
P
E
2
L
1
N
P
E
F
1
K
1
W
Drive Control
P
E
L
-
R
B
U
L
1
N
L
+
P
E
X
2
E
C
E
1
0
C
M
M
3
~
X
6
-
3
X
5
-
2
W
drive control
