User Manual
23

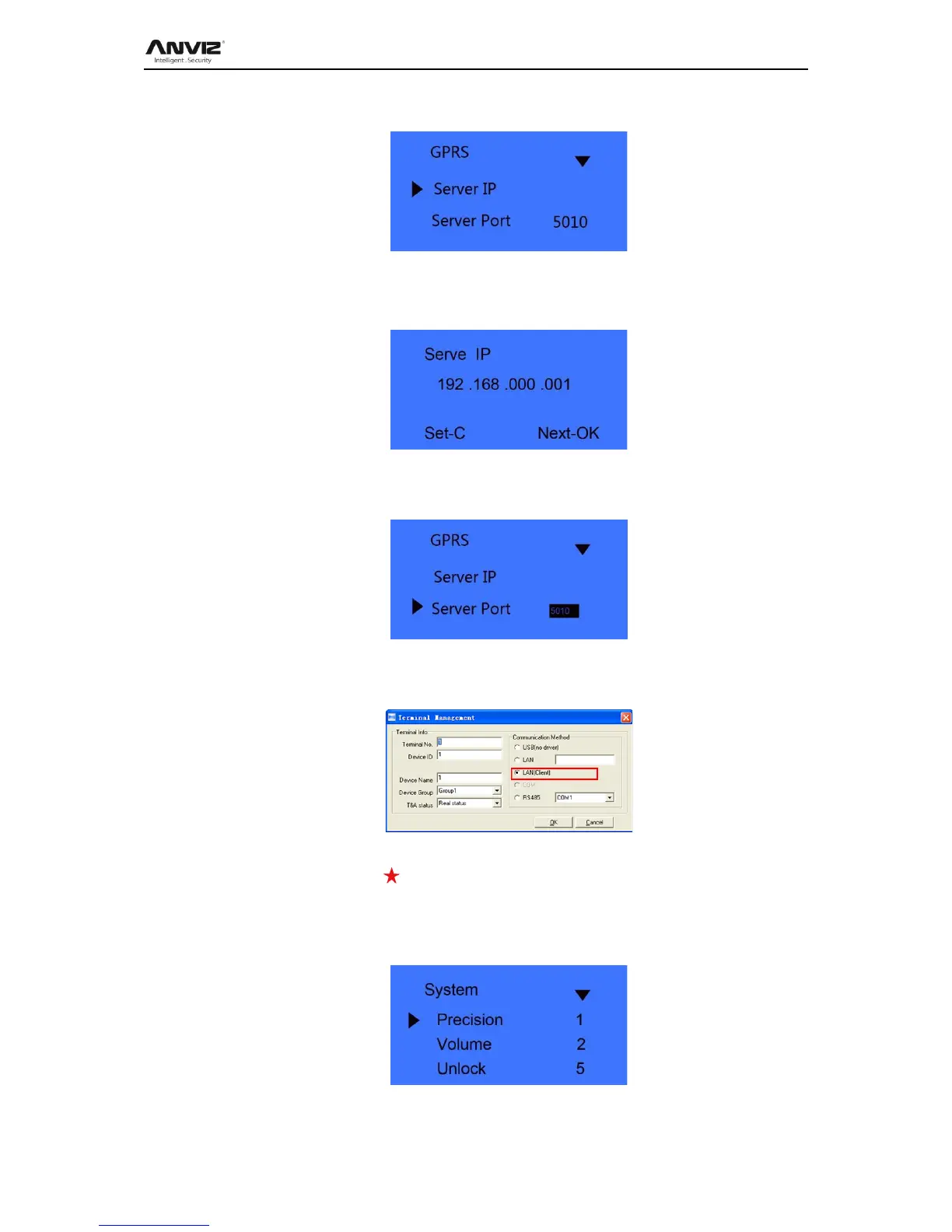

In the GPRS option there are two options:
Server IP: The server IP is the Public IP address (it is from ISP). It is the PC Server IP
that the T60/TC530 device will connected with.
Press ‘OK’ to enter IP setting interface. And input public IP address.
Server Port: The port is the software communication port. The device will send the
attendance data and get commands via this port to attendance software. (The default
port is 5010)
The next step need set the software. In the Prjcomm.exe software interf
ace, Please add
a termin
al first. Please notice you just select ‘LAN(Client)’ mode for device GPRS
communication.
2.5.1.11 Matching Precision
There are three fingerprint matching precision levels (0, 1, and 2). 0 is lower precision
(Basic) .1 is standard precision (Good). 2 is high precision (Excellent).
Press [
△
IN
] or [
OUT
] key to select [Precision] option.
Press [OK] key to enter precision setting interface.
△
