AOC C3583FQ User Manual

11
Using "MHL (Mobile High-Definition Link)"
1."MHL" (Mobile High-Definition Link)
This feature allows you to enjoy videos and photos (imported from a connected mobile device that supports MHL)
on the screen of the product.
 To use the MHL function, you need an MHL-certified mobile device. You can check if your mobile device is
MHL certified on the device manufacturer's website. To find a list of MHL-certified devices, visit the official
MHL website (http://www.mhlconsortium.org).
 To use the MHL function, the latest version of software must be installed on the mobile device.
 On some mobile devices, the MHL function may not be available depending on the device's performance or
functionality.
 Since the display size of the product is larger than those of mobile devices, the picture quality may degrade.
 This product is officially MHL-certified. If you encounter any problem when using the MHL function, please
contact the manufacturer of the mobile device.
 The picture quality may degrade when content (imported from the mobile device) with a low Resolution is
played on the product.
Using "MHL"

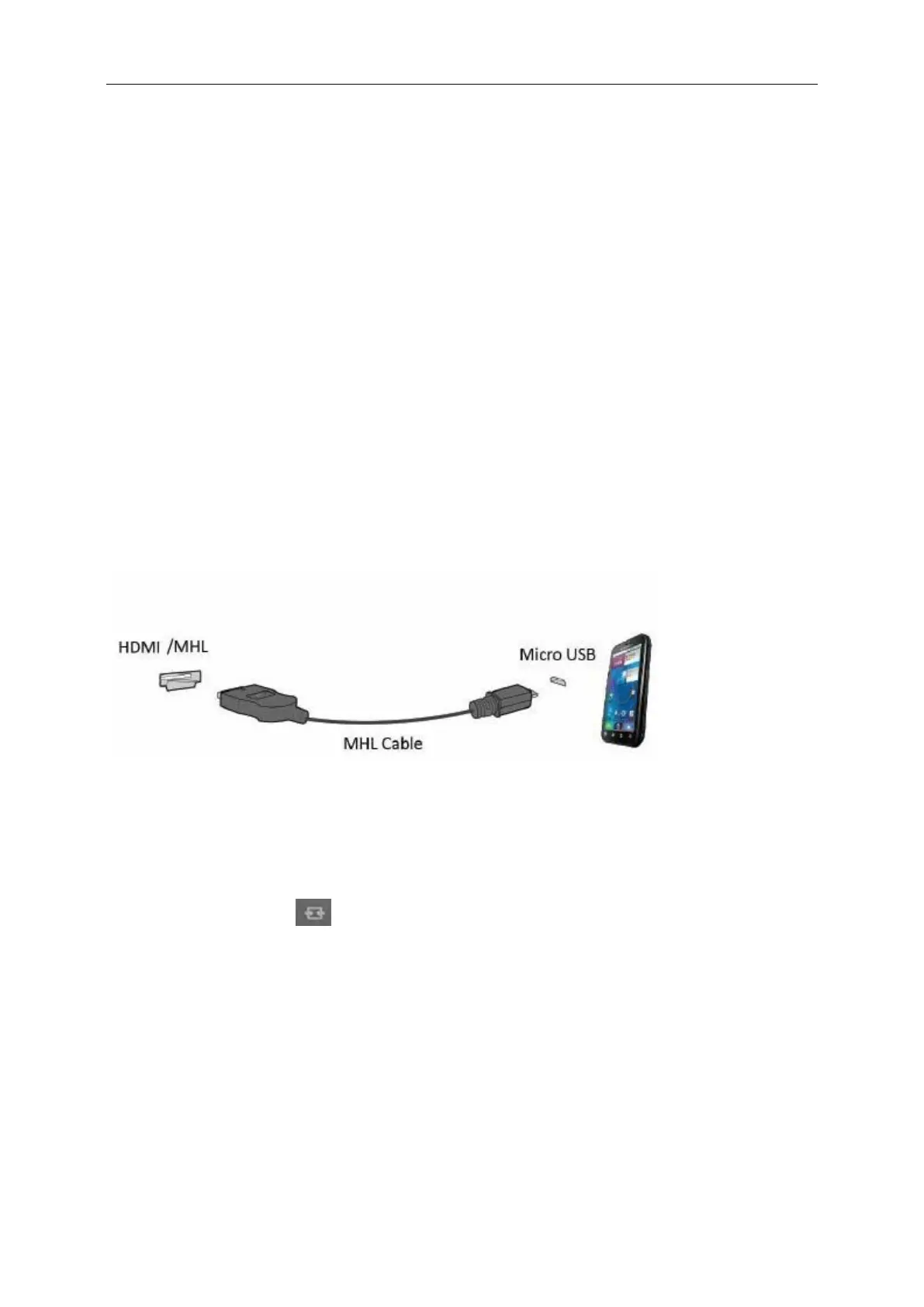

1. Connect the micro USB port on the mobile device to the [HDMI / MHL] port on the product using the MHL cable.
 When the MHL cable is used, [HDMI / MHL] is the only port on this monitor that supports the MHL function.
 Mobile device must be purchased separately.
2. Connect the AC power cord to the product and a power outlet.
3. Press the source button and switch to HDMI /MHL to activate MHL mode.
4. After about 3 seconds, the MHL screen will be displayed if MHL mode is active.
Remark: The indicated time "3 sec later" may vary depending on the mobile device.
When the mobile device is not connected or does not support MHL
 If MHL mode is not activated even though the mobile device supports MHL, check if mobile device MHL port is
MHL standard port otherwise an additional MHL-enabled adapter is required.

AOC C3583FQ Specifications

General

3D	No
HD type	QXGA
Panel type	MVA
Color depth	8 bit
Pixel pitch	0.32025 x 0.32025 mm
Aspect ratio	21:9
Backlight type	W-LED
Display surface	Matt
Display diagonal	35 \
Screen curvature	2000 mm
Display resolution	2560 x 1080 pixels
Display technology	LED
Vertical scan range	45 - 160 Hz
Horizontal scan range	30 - 170 kHz
Screen curvature rating	2000R
Viewable size, vertical	345.87 mm
Contrast ratio (dynamic)	50000000:1
Contrast ratio (typical)	2000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	819.84 mm
Display brightness (typical)	300 cd/m²
Supported graphics resolutions	2560 x 1080
HDCP	Yes
HDMI version	1.4
DisplayPort version	1.2
Headphone connectivity	3.5 mm
Certification	GOST
Product color	Black
Heavy metals free	Hg (mercury), Pb (lead)
Market positioning	-
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	95 W
Annual energy consumption	90 kWh
Power consumption (standby)	0.5 W
Power consumption (typical)	60 W
Tilt angle range	-3 - 15 °
Cable lock slot type	Kensington
Number of OSD languages	16
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE
Mean time between failures (MTBF)	30000 h
RMS rated power	5 W
Package type	Box
Package depth	280 mm
Package width	980 mm
Package height	610 mm
Package weight	Weight of the packaged product in gram.
Cables included	AC, Audio (3.5mm), DisplayPort, HDMI, VGA
Operating altitude	0 - 5000 m
Non-operating altitude	0 - 12192 m
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 93 %
Operating relative humidity (H-H)	10 - 85 %
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR

Weight and Dimensions

Depth (with stand)	213.6 mm
Width (with stand)	844.6 mm
Height (with stand)	458 mm
Weight (with stand)	11600 g
Depth (without stand)	- mm
Weight (without stand)	- g
