AOC C3583FQ User Manual

21

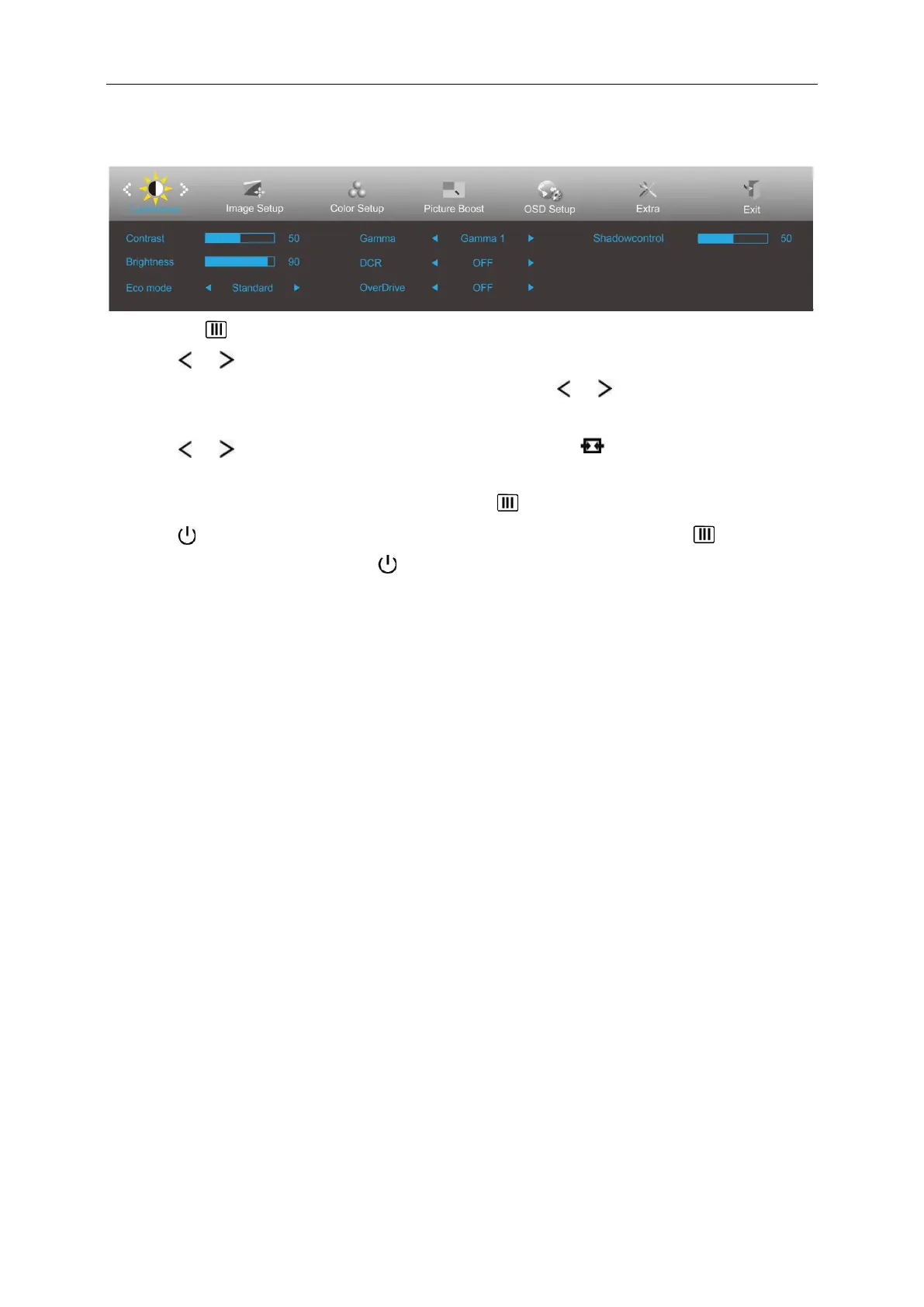

OSD Setting
Basic and simple instruction on the control keys.
1. Press the MENU-button to activate the OSD window.
2. Press or to navigate through the functions. Once the desired function is highlighted,
press the MENU-button to activate it. If there is a sub-menu, press or to navigate through the
sub-menu functions.
3. Press or to change the settings of the selected function. Press AUTO to exit. If you want to
adjust any other function, repeat steps 2-3.
4. OSD Lock Function: To lock the OSD, press and hold the MENU-button while the monitor is off and then
press power button to turn the monitor on. To un-lock the OSD - press and hold the MENU-button
while the monitor is off and then press power button to turn the monitor on.
Notes:
1. If the product has only one signal input, the item of "Input Select" is disabled.
2. If the product screen size is 4:3 or input signal resolution is native resolution, the item of "Image Ratio" is
disabled.
3. One of Clear vision, DCR, Color Boost, and Picture Boost functions is activated; the other three functions are
turned off accordingly.

AOC C3583FQ Specifications

General

3D	No
HD type	QXGA
Panel type	MVA
Color depth	8 bit
Pixel pitch	0.32025 x 0.32025 mm
Aspect ratio	21:9
Backlight type	W-LED
Display surface	Matt
Display diagonal	35 \
Screen curvature	2000 mm
Display resolution	2560 x 1080 pixels
Display technology	LED
Vertical scan range	45 - 160 Hz
Horizontal scan range	30 - 170 kHz
Screen curvature rating	2000R
Viewable size, vertical	345.87 mm
Contrast ratio (dynamic)	50000000:1
Contrast ratio (typical)	2000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	819.84 mm
Display brightness (typical)	300 cd/m²
Supported graphics resolutions	2560 x 1080
HDCP	Yes
HDMI version	1.4
DisplayPort version	1.2
Headphone connectivity	3.5 mm
Certification	GOST
Product color	Black
Heavy metals free	Hg (mercury), Pb (lead)
Market positioning	-
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	95 W
Annual energy consumption	90 kWh
Power consumption (standby)	0.5 W
Power consumption (typical)	60 W
Tilt angle range	-3 - 15 °
Cable lock slot type	Kensington
Number of OSD languages	16
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE
Mean time between failures (MTBF)	30000 h
RMS rated power	5 W
Package type	Box
Package depth	280 mm
Package width	980 mm
Package height	610 mm
Package weight	Weight of the packaged product in gram.
Cables included	AC, Audio (3.5mm), DisplayPort, HDMI, VGA
Operating altitude	0 - 5000 m
Non-operating altitude	0 - 12192 m
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 93 %
Operating relative humidity (H-H)	10 - 85 %
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR

Weight and Dimensions

Depth (with stand)	213.6 mm
Width (with stand)	844.6 mm
Height (with stand)	458 mm
Weight (with stand)	11600 g
Depth (without stand)	- mm
Weight (without stand)	- g
