Connecting the Monitor

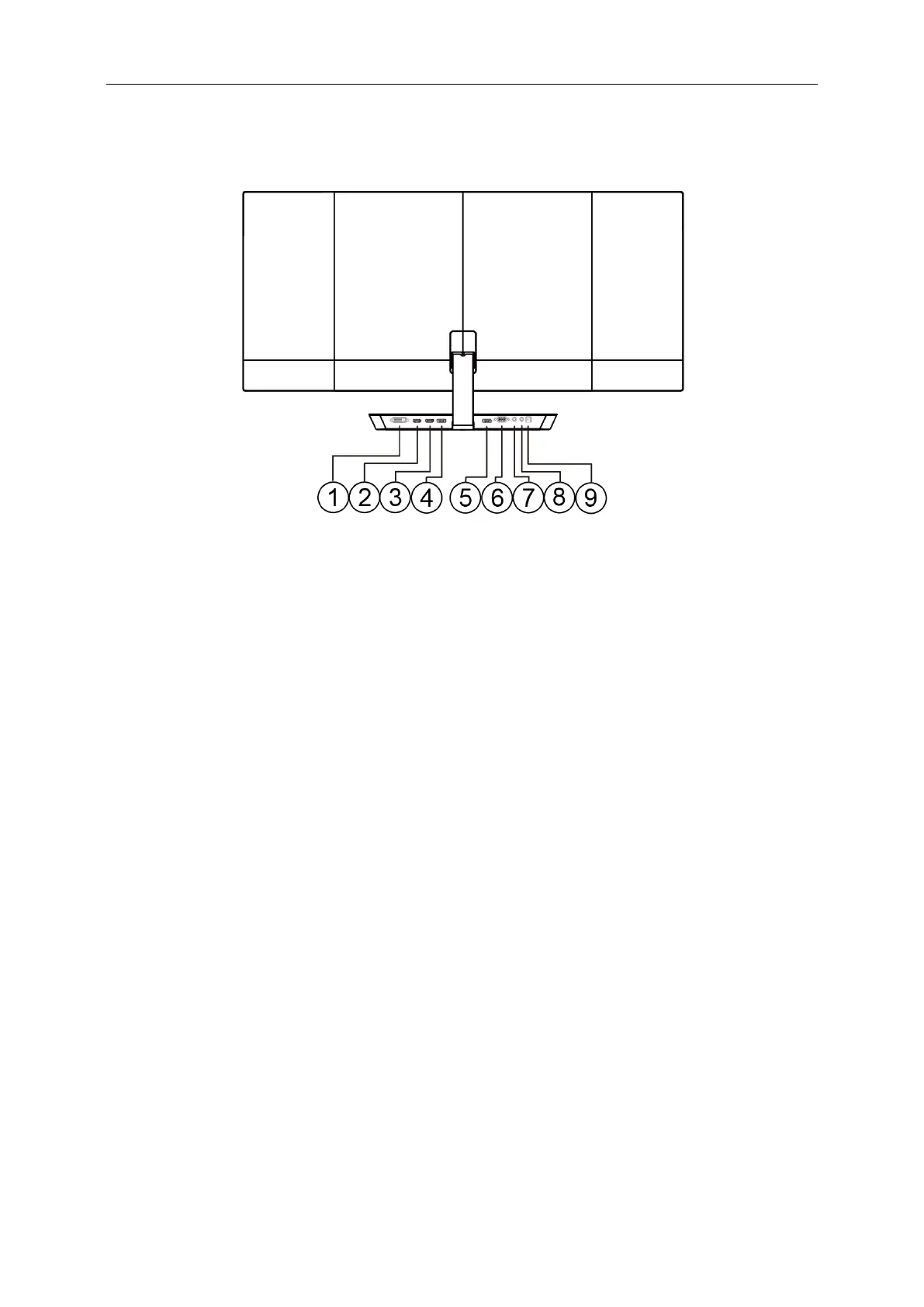

Cable Connections In Back of Monitor and Computer:
1 DVI-D (Dual link)
2 HDMI/MHL-2
3 HDMI/MHL-1
4 DP-2
5 DP-1
6 D-SUB
7 Audio in
8 Earphone out
9 Power
To protect equipment, always turn off the PC and LCD monitor before connecting.
1 Connect the power cable to the DC port on the back of the monitor.
2 Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the
computer's D-Sub port.
3 Optional – (Requires a video card with DVI port) – Connect one end of the DVI cable to the back of the monitor
and connect the other end to the computer’s DVI port.
4 Optional – (Requires a video card with HDMI port) – Connect one end of the HDMI cable to the back of the
monitor and connect the other end to the computer’s HDMI port.
5 Optional – (Requires a video card with DP port) – Connect one end of the DP cable to the back of the monitor
and connect the other end to the computer’s DP port.
6 Turn on your monitor and computer.
7 Video content supporting resolution:
(1) MHL: 1920 x 1080/60Hz (Maximum)
(2) D-sub/DVI Dual-Link/HDMI: 2560x1080/60Hz (Maximum)
(3) DP: 2560x1080/144Hz (Maximum)
If your monitor displays an image, installation is complete. If it does not display an image, please refer
Troubleshooting.
