AOC Pixel Policy
ISO 9241-307 Class 1
July 25
th
, 2013
AOC strives to deliver the highest quality products. We use some of the industry’s most advanced
manufacturing processes and practice stringent quality control. However, pixel or sub pixel defects on the
TFT monitor panels used in flat panel monitors are sometimes unavoidable. No manufacturer can guarantee
that all panels will be free from pixel defects, but AOC guarantees that any monitor with an unacceptable
number of defects will be repaired or replaced under warranty. This Pixel Policy explains the different types of
pixel defects and defines acceptable defect levels for each type. In order to qualify for repair or replacement
under warranty, the number of pixel defects on a TFT monitor panel must exceed these acceptable levels.
Pixels and Sub Pixel Definition

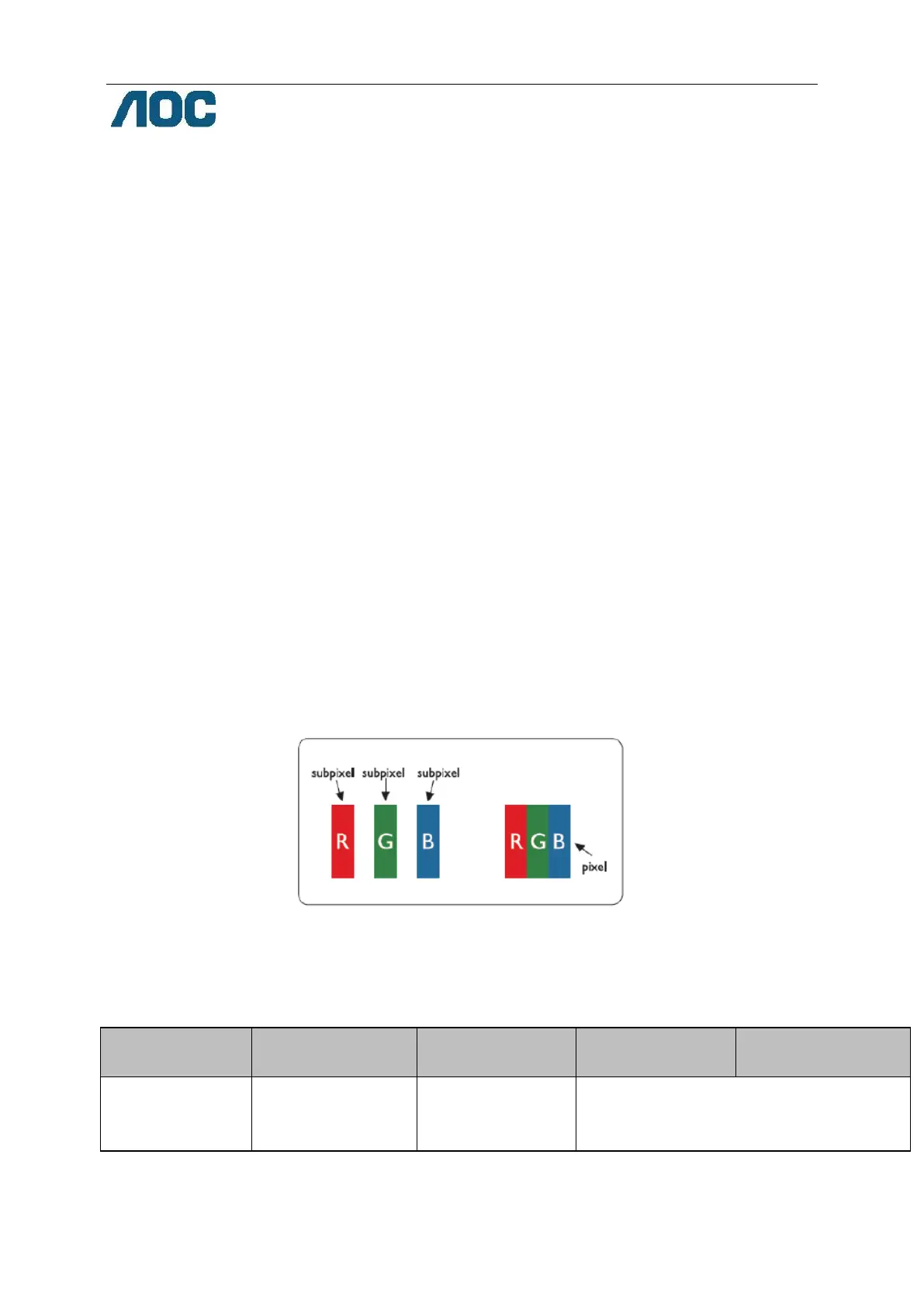

A pixel, or picture element, is composed of three sub pixels in the primary colors of red, green and blue.
When all sub pixels of pixel are lit, the three colored sub pixel together appear as a single white pixel. When
all are dark, the three colored sub pixels together appear as a single black pixel.
Types of Pixel Defects
 Bright Dot Defects: the monitor displays a dark pattern, sub pixels or pixels are always lit or “on”
 Black Dot Defects: the monitor displays a light pattern, sub pixels or pixels are always dark or “off”.
ISO 9241-307
Pixel Defect Class
Defect Type 1
Bright Pixel
Defect Type 2
Black Pixel
Defect Type 3
Bright Sub pixel
Defect Type 4 Black
Sub pixel
Class 1
1
1
2
1
0
+
+
+
1
3
5
AOC International (Europe) B.V.

AOC C3583FQ Specifications

General

3D	No
HD type	QXGA
Panel type	MVA
Color depth	8 bit
Pixel pitch	0.32025 x 0.32025 mm
Aspect ratio	21:9
Backlight type	W-LED
Display surface	Matt
Display diagonal	35 \
Screen curvature	2000 mm
Display resolution	2560 x 1080 pixels
Display technology	LED
Vertical scan range	45 - 160 Hz
Horizontal scan range	30 - 170 kHz
Screen curvature rating	2000R
Viewable size, vertical	345.87 mm
Contrast ratio (dynamic)	50000000:1
Contrast ratio (typical)	2000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	819.84 mm
Display brightness (typical)	300 cd/m²
Supported graphics resolutions	2560 x 1080
HDCP	Yes
HDMI version	1.4
DisplayPort version	1.2
Headphone connectivity	3.5 mm
Certification	GOST
Product color	Black
Heavy metals free	Hg (mercury), Pb (lead)
Market positioning	-
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	95 W
Annual energy consumption	90 kWh
Power consumption (standby)	0.5 W
Power consumption (typical)	60 W
Tilt angle range	-3 - 15 °
Cable lock slot type	Kensington
Number of OSD languages	16
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE
Mean time between failures (MTBF)	30000 h
RMS rated power	5 W
Package type	Box
Package depth	280 mm
Package width	980 mm
Package height	610 mm
Package weight	Weight of the packaged product in gram.
Cables included	AC, Audio (3.5mm), DisplayPort, HDMI, VGA
Operating altitude	0 - 5000 m
Non-operating altitude	0 - 12192 m
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 93 %
Operating relative humidity (H-H)	10 - 85 %
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR

Weight and Dimensions

Depth (with stand)	213.6 mm
Width (with stand)	844.6 mm
Height (with stand)	458 mm
Weight (with stand)	11600 g
Depth (without stand)	- mm
Weight (without stand)	- g
