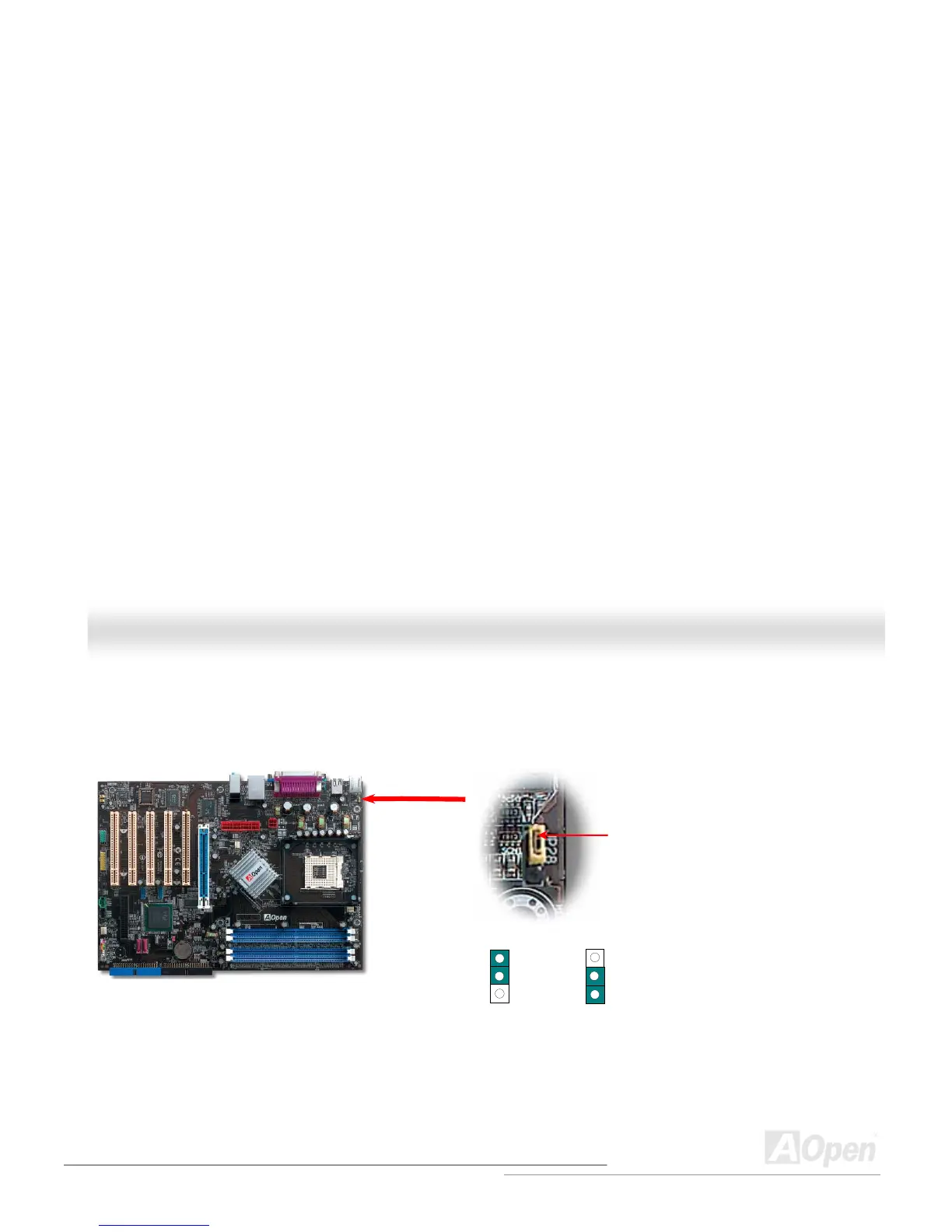

This motherboard provides PS2 keyboard / mouse wake-up function. You can use JP28 to enable or disable this function, which could
resume your system from suspend mode with keyboard or mouse. The factory default setting is set to “Disable” (1-2), and you may
enable this function by setting the jumper to 2-3.
Pin 1
1
1
Disable
(Default)
Enable
