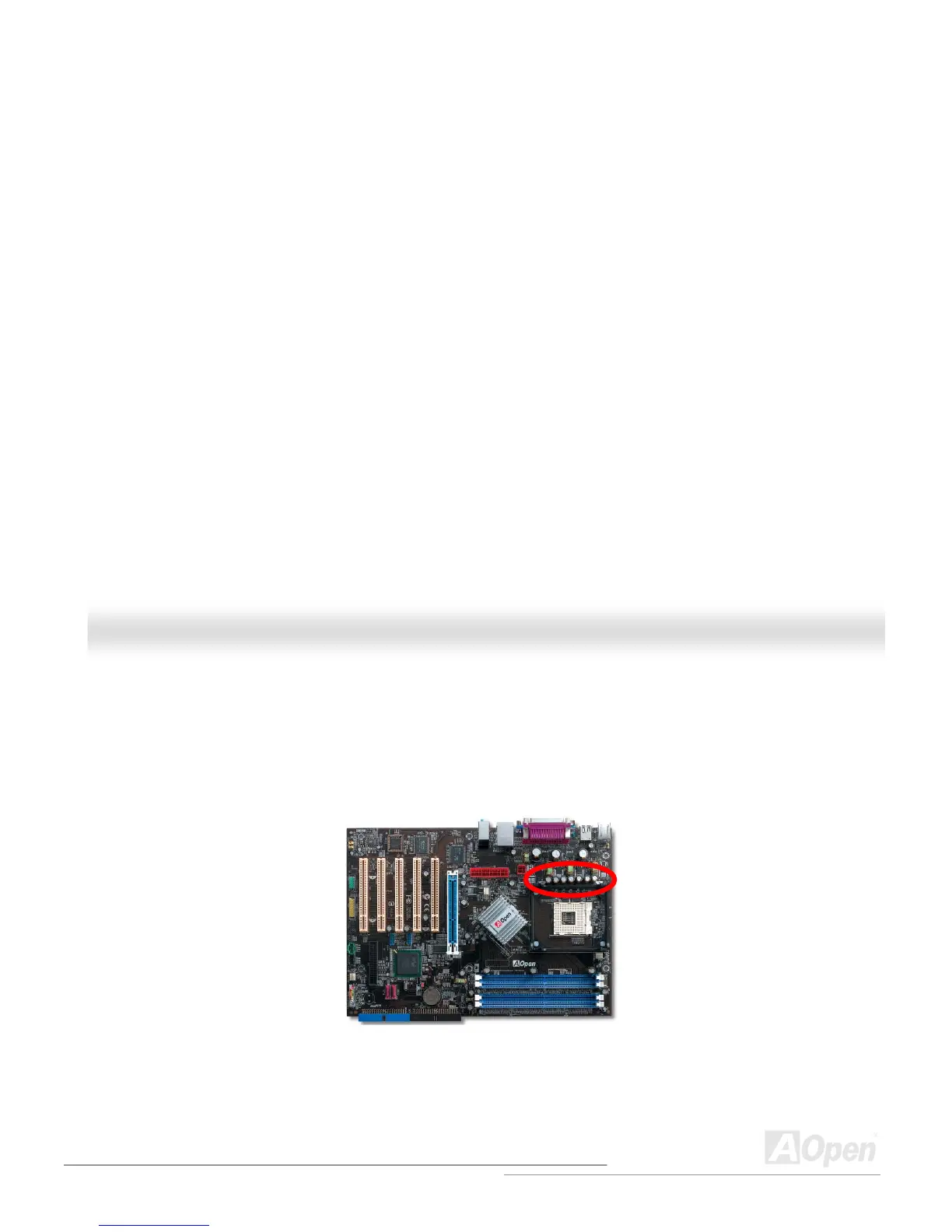

The quality of low ESR capacitor (Low Equivalent Series Resistance) during high frequency operation is very important for the stability
of CPU power. The idea of where to put these capacitors is another know-how that requires experience and detail calculation.
Not only that, AOpen i865 Family motherboards implements 2200μF capacitors, which is much larger than normal capacitor (1000 &
1500μF) and it provides better stability for CPU power.

AOpen AX4SG-U Specifications

General

Brand	AOpen
Model	AX4SG-U
Category	Motherboard
Language	English
