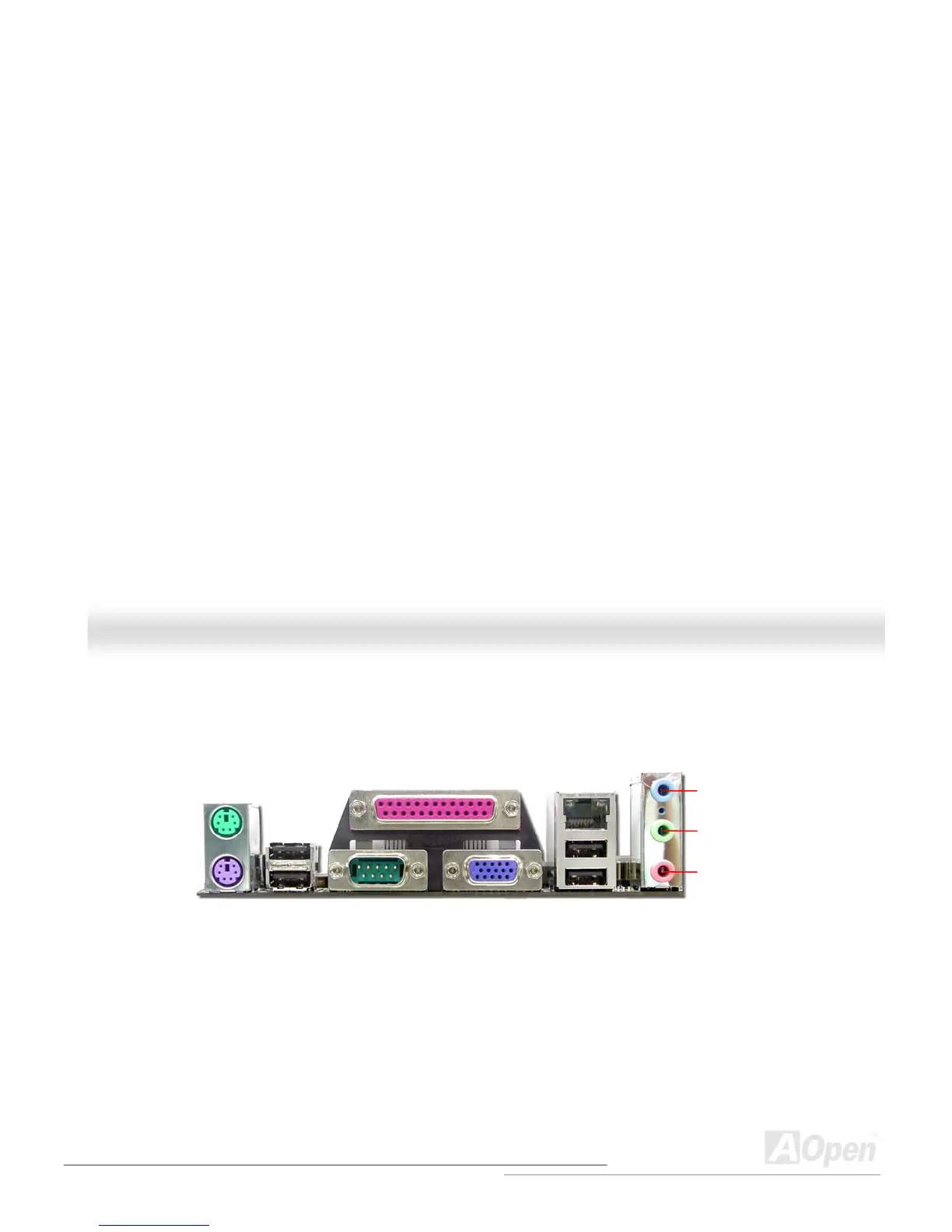

The onboard I/O devices are PS/2 Keyboard, PS/2 Mouse, RJ-45 LAN Connector, COM1, VGA port, Printer, USB, AC’97 sound and
game ports. The view angle of drawing shown here is from the back panel of the housing.
RJ45 10/100
/
1000 LAN Jack
(for –UL and –UN
Series Motherboards
)
SPP/EPP/ECP
Parallel Port
PS/2 Mouse
Connector
Line-In
USB 2.0
Ports
Speaker Out
MIC-In
USB 2.0 Ports
V
G
A
Port
(for AX4SG series only)
PS/2 Keyboard
Connector
COM 1 Port
PS/2 Keyboard: For standard keyboard, which use a PS/2 plug.
PS/2 Mouse: For PC-Mouse, which use a PS/2 plug.
USB Port: Available for connecting USB devices.
Parallel Port: To connect with SPP/ECP/EPP printer.
COM1 Port: To connect with pointing devices, modem or others serial devices.
RJ-45 LAN connector To connect Ethernet for home or office use.
VGA Connector: To connect with PC monitor.
Speaker Out: To External Speaker, Earphone or Amplifier.
Line-In: Comes from the signal sources, such as CD/Tape player.
MIC-In: From Microphone.
