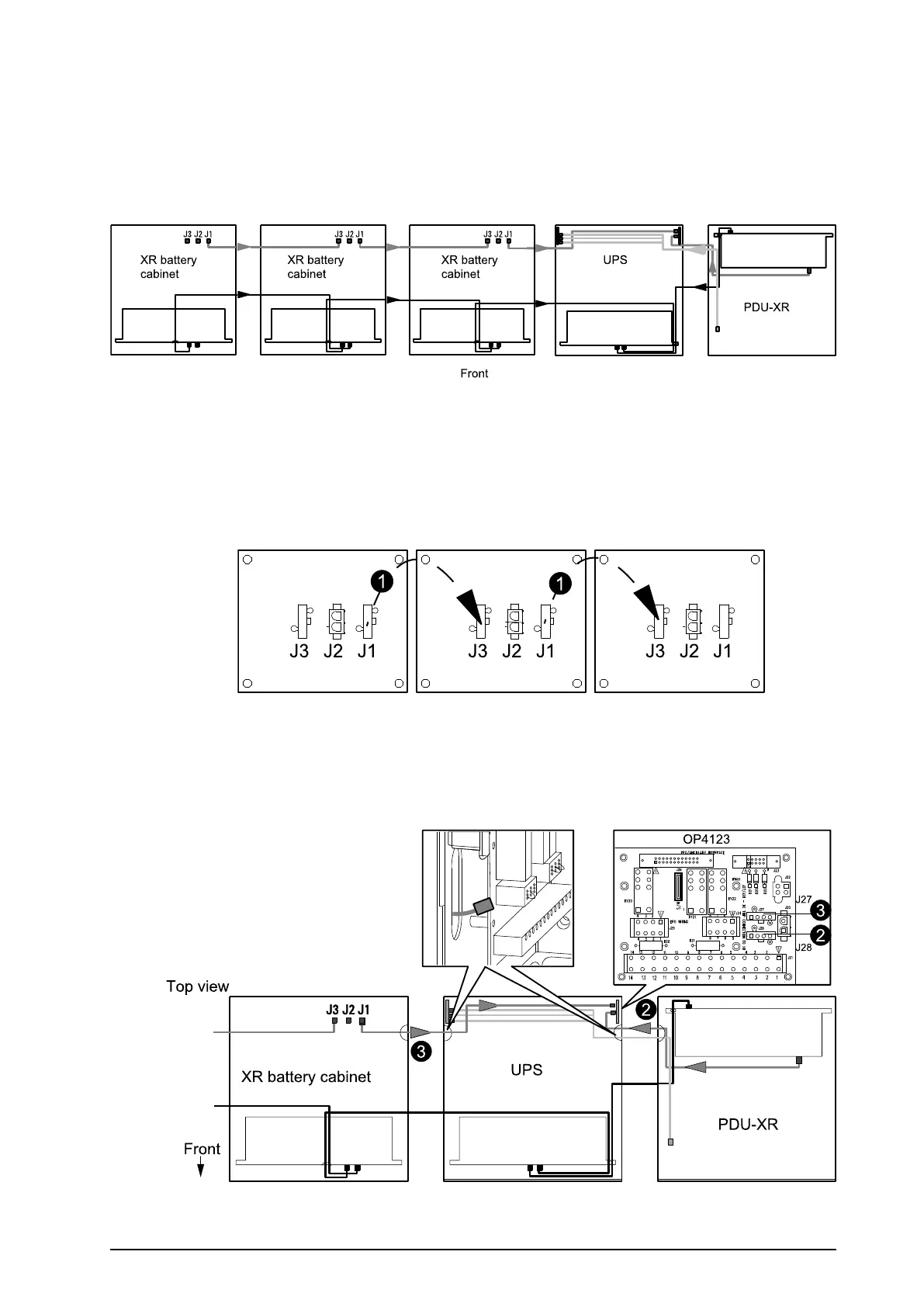

CommunicationCablesinInstallationswithPDU-XR

Movethecabinetsjustcloseenoughsothatthecommunicationcablescanreachbetweenthem.The

cabinetsshouldnotbepositionedtooclosetooneanother.Theextraspaceisneededtocompletethewiring.

Overviewofthecommunicationcables

RouteandConnecttheBatteryBreakerTripCablesand

CommunicationCables

1.RoutethebatterybreakertripcablefromJ1intherstXRbatterycabinettotheJ3portinthenext

XRbatterycabinet.RepeattheprocedureforallXRbatterycabinets.

2.RoutethebatterybreakertripcablefromthePDU-XRtoJ28ontheEPO/ancillaryinterface

board(0P4123)intheUPS.

3.RoutethebatterybreakertripcablefromJ1inthelastXRbatterycabinettoJ27onthe

EPO/ancillaryinterfaceboard(0P4123)intheUPS.

990–3017E-001

SymmetraPX96and160kW400VInstallation
