API “The BOX” Operator’s Manual
10
The basic signal flow through the input channels module is as follows:
Preamplifier ⇒ compressor ⇒ EQ/500 slot ⇒ insert ⇒ fader/mute ⇒ filter ⇒ output
The compressor can be moved to after the insert (COMP POST) to yield:
Preamplifier ⇒ EQ/500 slot ⇒ insert ⇒ compressor ⇒ fader/mute ⇒ filter ⇒ output

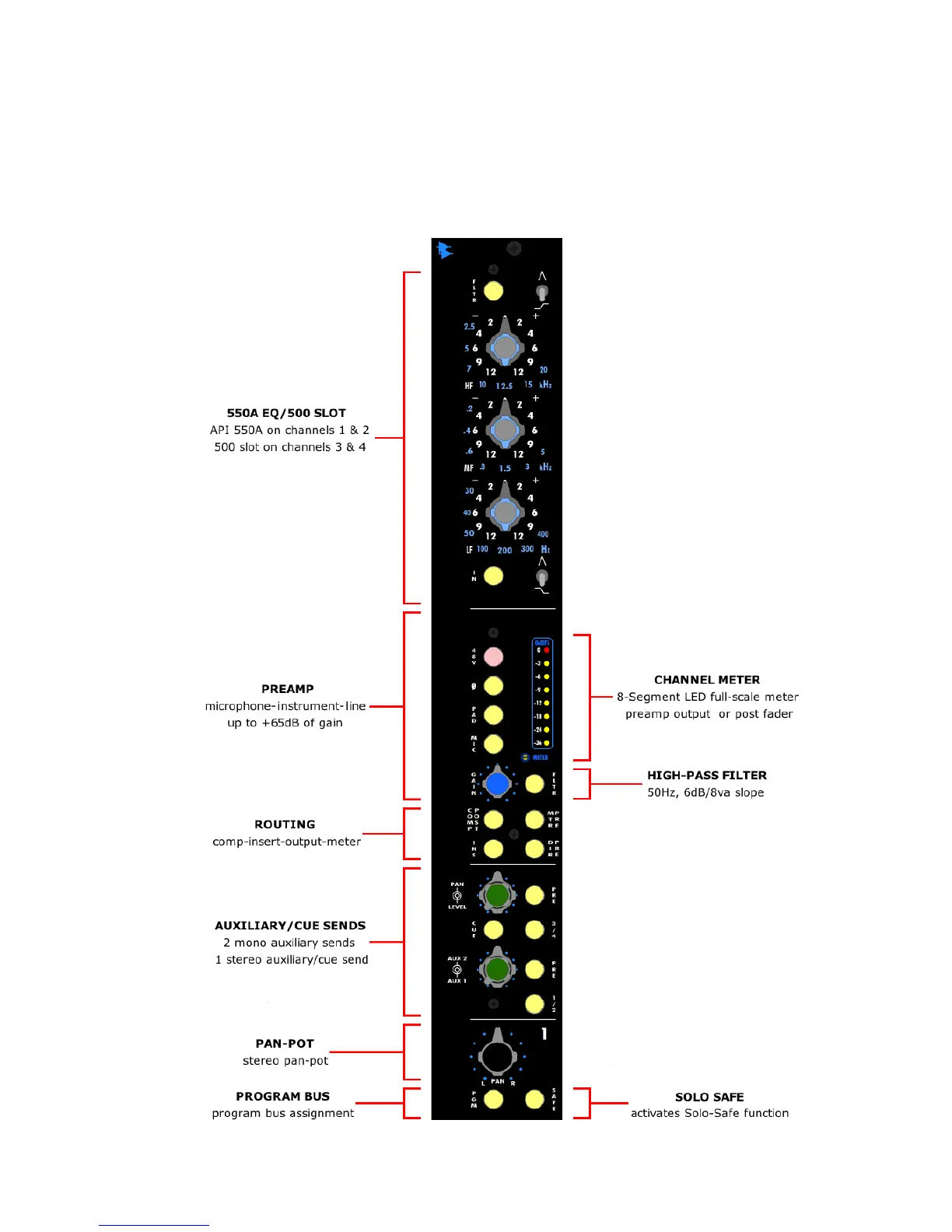

Input Channel Sections
