13.0 Rear Panel Connections
“The BOX” rear panel contains all the connections needed to interface the console with other
studio equipment.
Connections are organized in several sections:
• Input Channels 1-2: Preamp inputs, insert sent/return, direct/pre out
• Input Channels 3-4: Preamp inputs, preamp output, 500 slot input, insert sent/return,
direct/pre out
• Summing Inputs 1-16: Line inputs, insert send/return
• Program Bus: Sum inputs, insert send/return, outputs
• Aux/Cue: outputs
• Control Room/Cue Source 1-4: 2-tracks 1-4
• Control Room Loudspeakers: Main and alternate outputs
• Headphones: Headphone amp output
• AC Power: IEC connector, fuse, and power switch

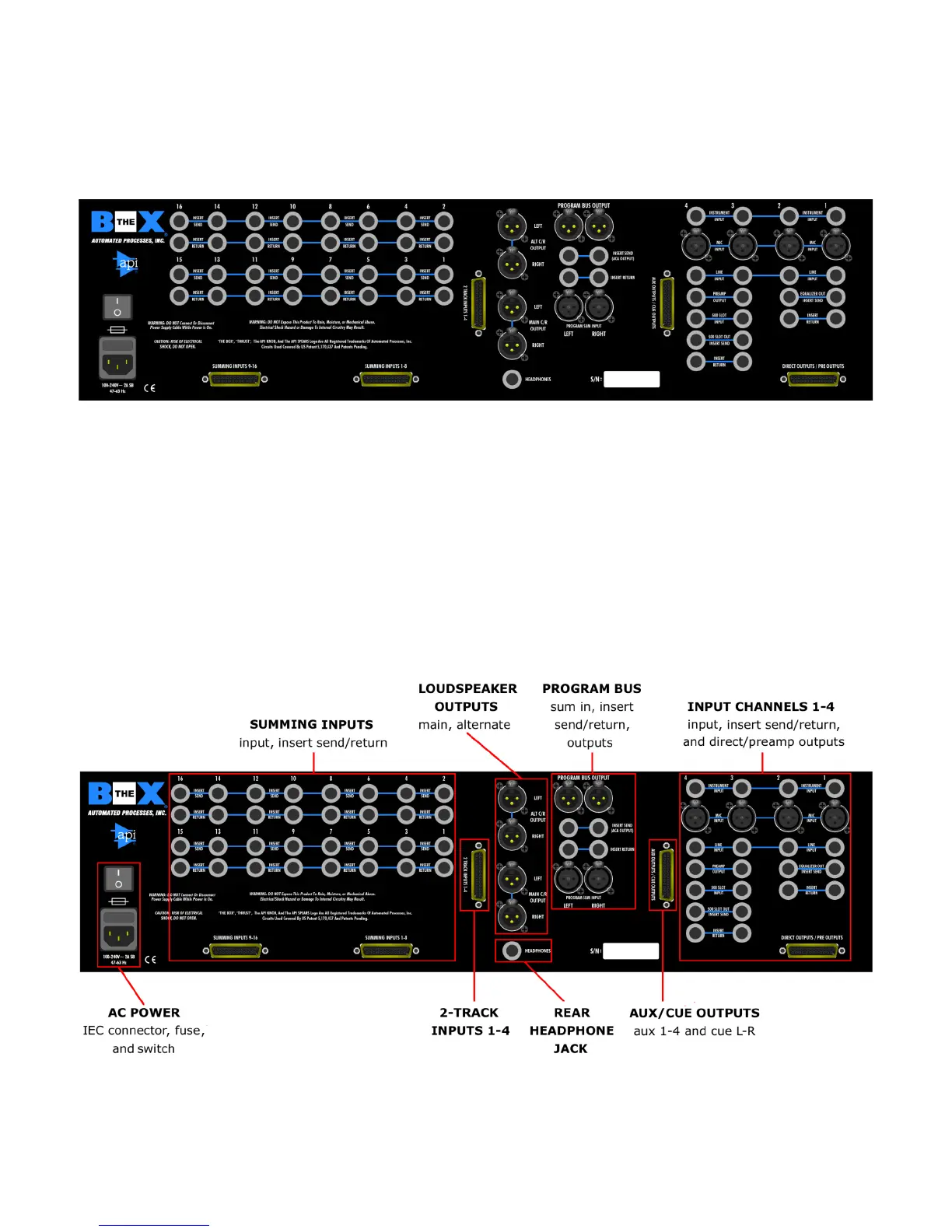

Rear Panel Sections
