API The BOX - 12 VU Meters

API “The BOX” Operator’s Manual
73
12.0 VU Meters

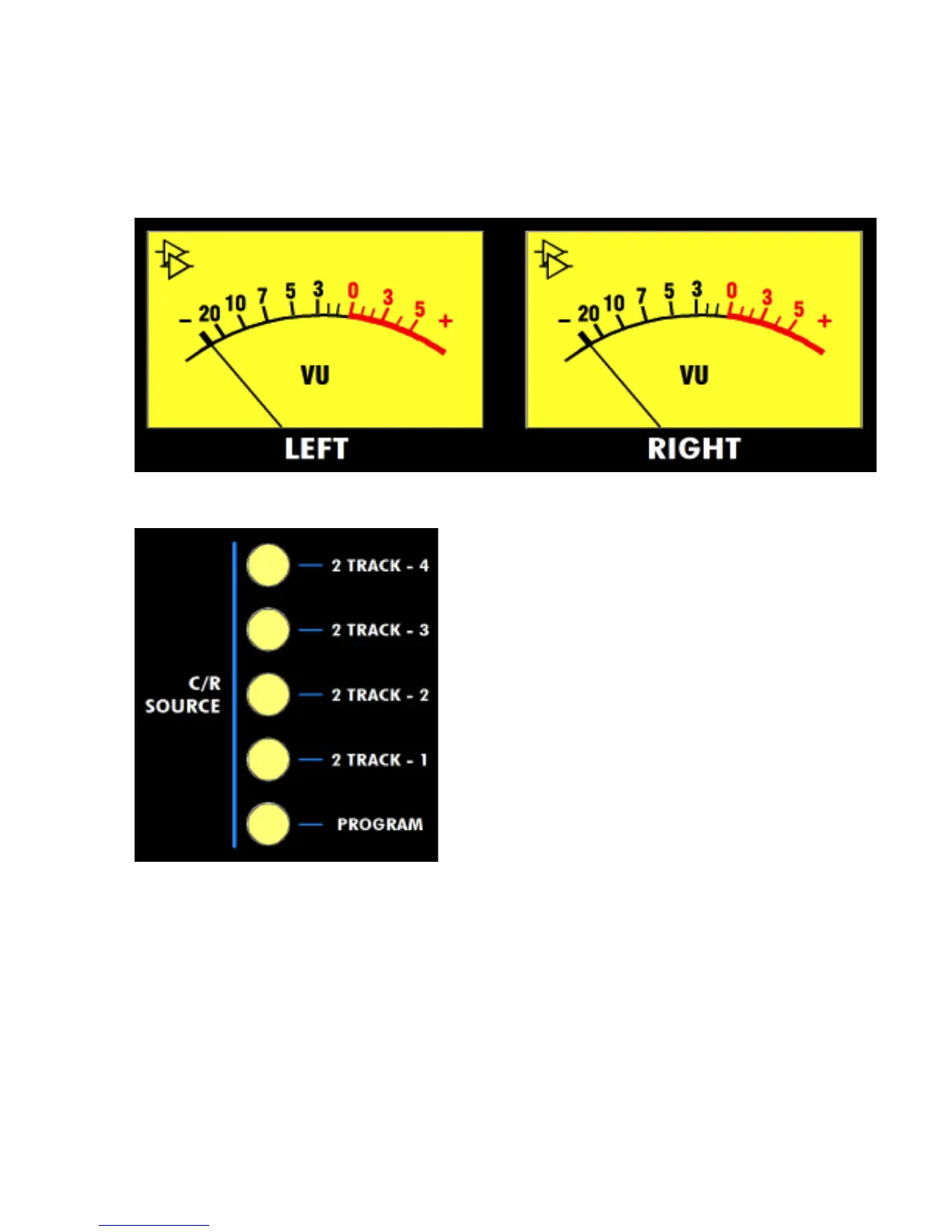

“The BOX” come equipped with a pair of LEFT and RIGHT stereo VU meters mounted above
the 527 compressors. These VU meters are back-lit and have an extended range to +5 to
accommodate high output content. 0VU = +4dBu
The meters are fed from the C/R SOURCE selectors above the control room monitors controls.
The stereo VU meters display the levels of the
sources selected for control room monitoring (C/R
SOURCE).
Refer to section 11.1 Control Room Source
Selection for additional information regarding VU
meter source selection.
