2.2 Filter, Routing, and Meter
Input channels provide a 50Hz high-pass filter, an 8-segment LED full-scale meter,
and several routing possibilities.
Routing possibilities include:
• Compressor assignment to input channels
• Compressor placement in signal flow
• Insert
• Direct output routing
• Program bus assignment
• Meter routing

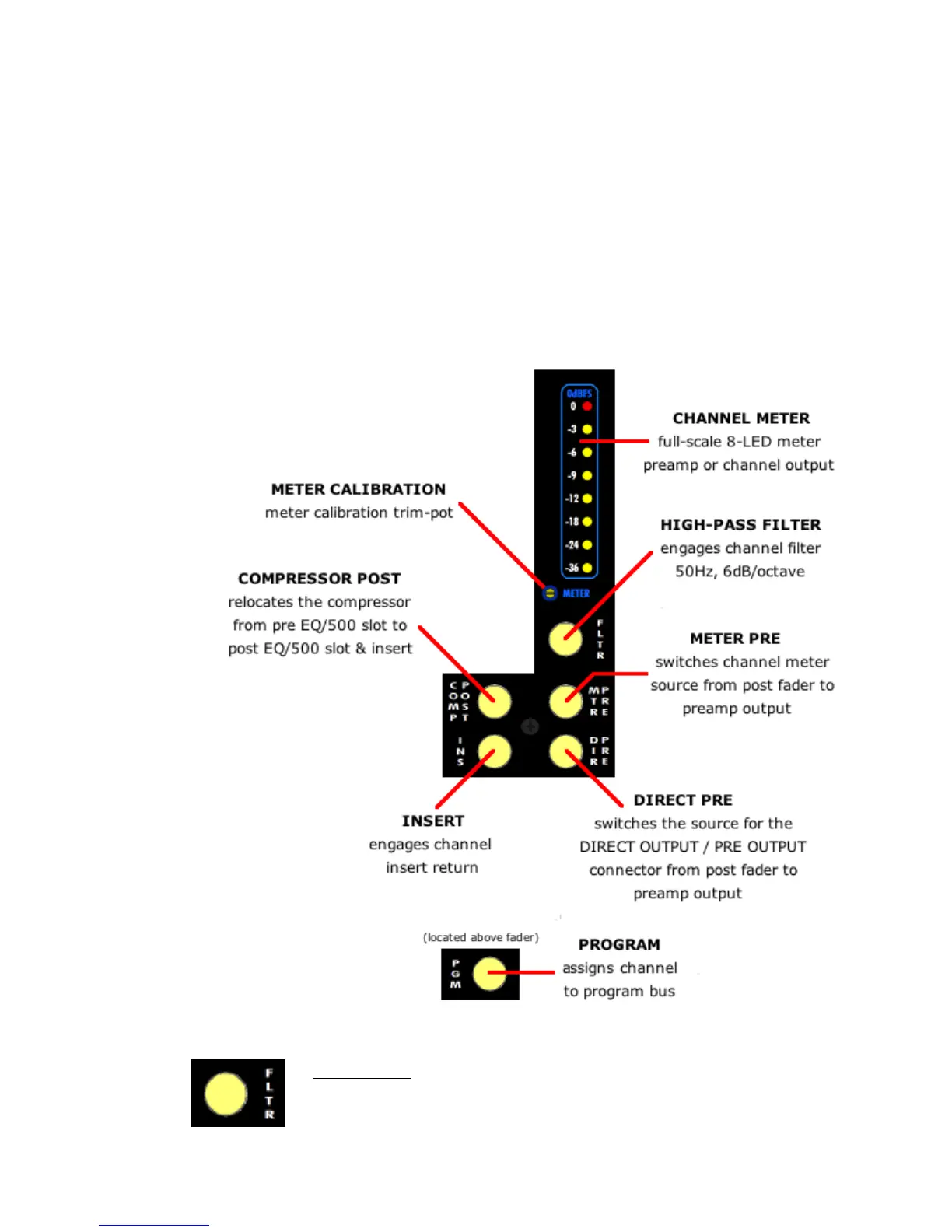

Filter, Routing, and Meter Controls:
2.2.1 High-Pass Filter
FLTR (Filter): Engages high-pass filter
• -3 dB at 50Hz
• -6dB/octave slope
• Located post-fader
• Illuminates when engaged
