9.2 Talkback Routing and Controls

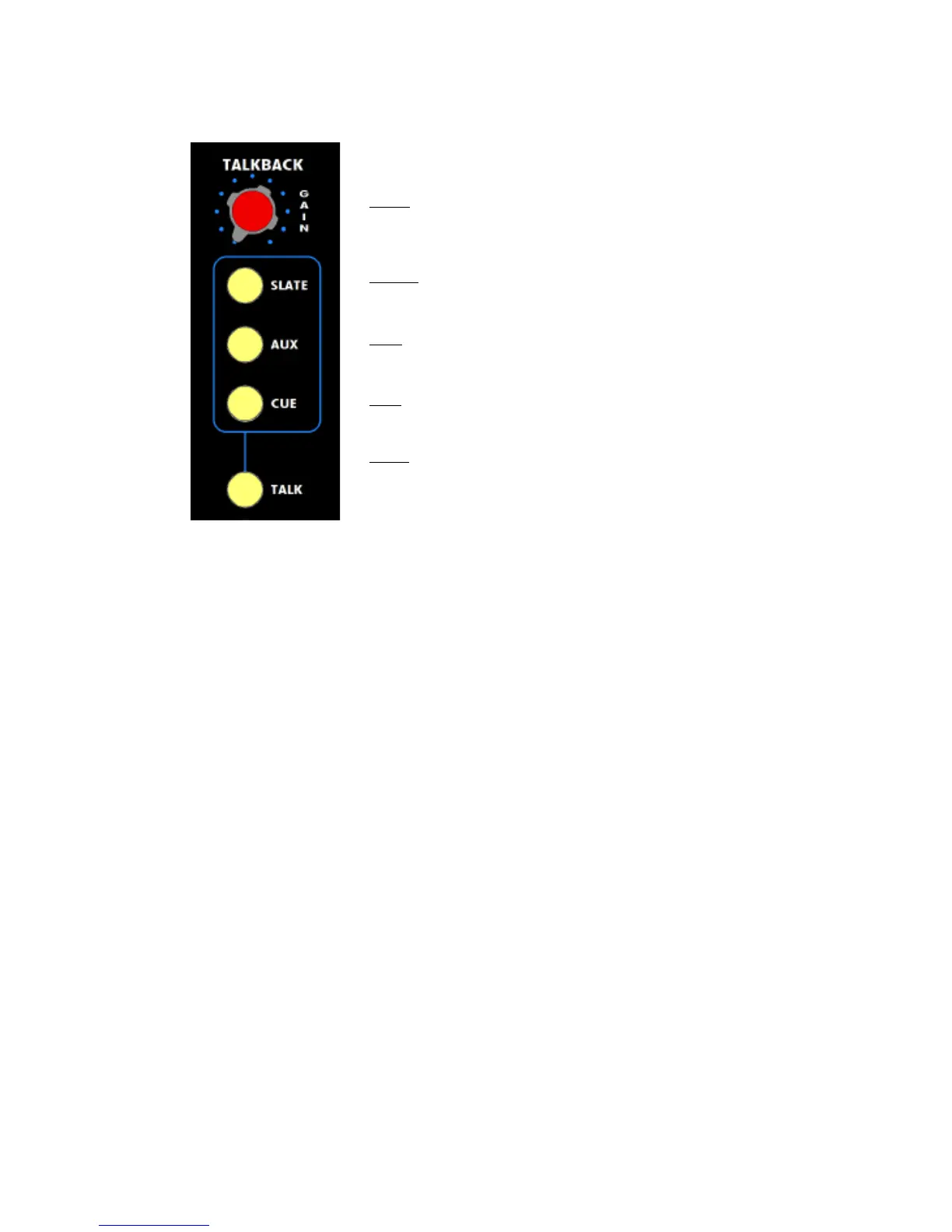

Talkback routing to the desired destination(s) is enabled using the SLATE, AUX, and
CUE switches. Talk back to these destinations is activated when the TALK switch is
pressed. The overall level to the enabled destinations is set using the GAIN control.
Levels to each destination can be trimmed using the SLATE, AUX, and CUE trim-pots.
GAIN: Talkback level control
SLATE: Enables talkback routing to the program bus
• Illuminates when engaged
AUX: Enables talkback routing to the auxiliary master
• Illuminates when engaged
CUE: Enables talkback routing to the cue master
• Illuminates when engaged
TALK: Activates talkback to the enabled destination
• Activates loudspeaker DIM function when engaged
• Momentary switch
• Illuminates when engaged
