2.2.3 Insert
A balanced insert with switch is provided on each input channel.
The insert send is fed pre-fader from the output of the EQ/500 slot and is always
active.
The insert return is located post-EQ (pre-fader) and is routed to the signal path only
when the INS switch is engaged

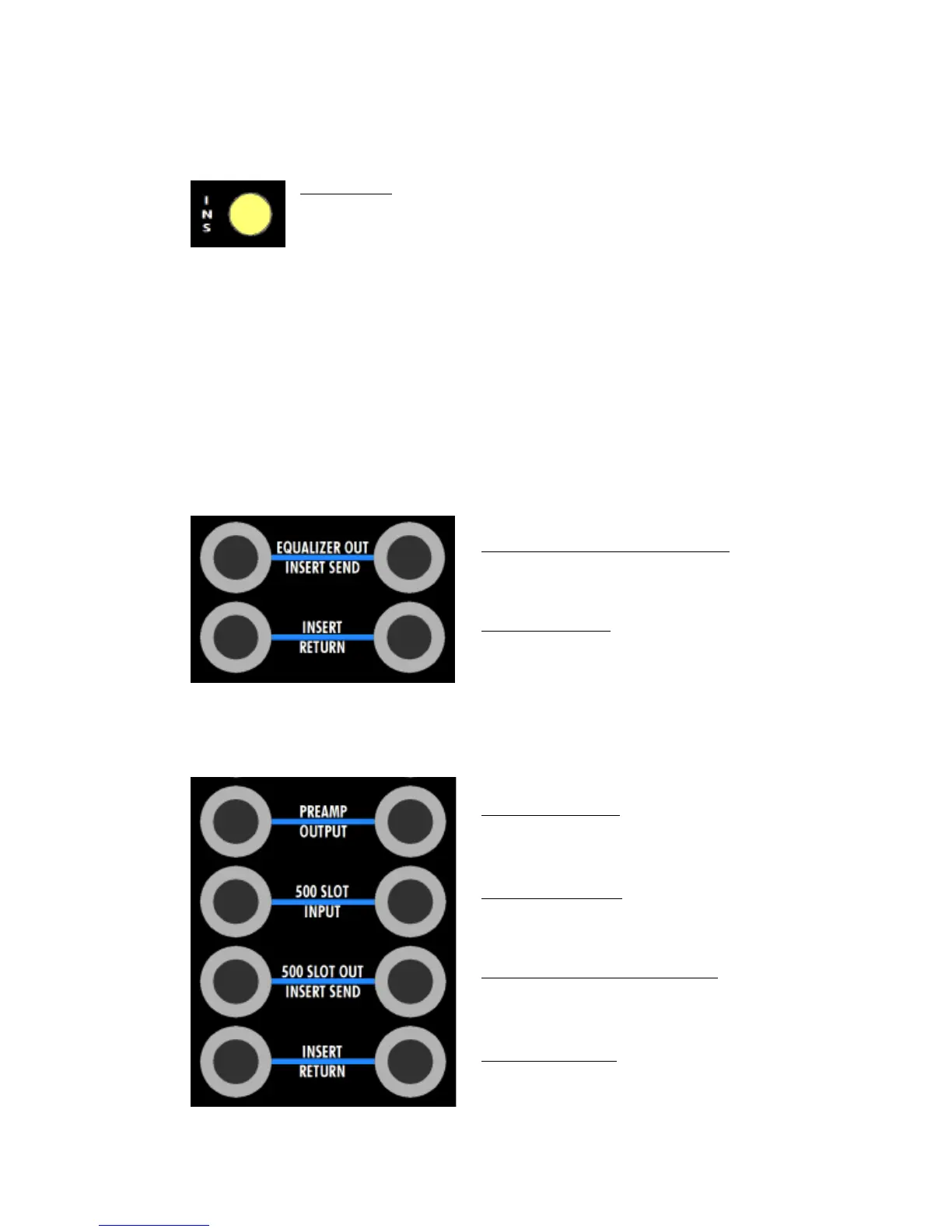

Rear Panel Insert Connections
All insert sends and returns are balanced, low-impedance, line-level signals routed via
¼” tip-ring-sleeve jacks on the rear panel.
The insert send is post-EQ on input channels 1 & 2.
The insert send is post-500 slot on input channels 3 & 4. In addition to the insert send
and return, the signal path on channels 3 & 4 can be accessed pre-500 slot via the
PREAMP OUTPUT and 500 SLOT INPUT jacks on the rear panel.
INS (insert): Routes the insert return to the signal path
• The insert return is active only when the INS switch is engaged
• Illuminates when engaged
EQUALIZER OUT-INSERT SEND: ¼” tip-ring-sleeve,
balanced, low-impedance, line-level
INSERT RETURN: ¼” tip-ring-sleeve, balanced, low-
impedance, line-level
PREAMP OUTPUT: ¼” tip-ring-sleeve, balanced,
low-impedance, line-level
500 SLOT INPUT: ¼” tip-ring-sleeve, balanced,
low-impedance, line-level
500 SLOT OUT- INSERT SEND: ¼” tip-ring-sleeve,
balanced, low-impedance, line-level
INSERT RETURN: ¼” tip-ring-sleeve, balanced,
low-impedance, line-level
