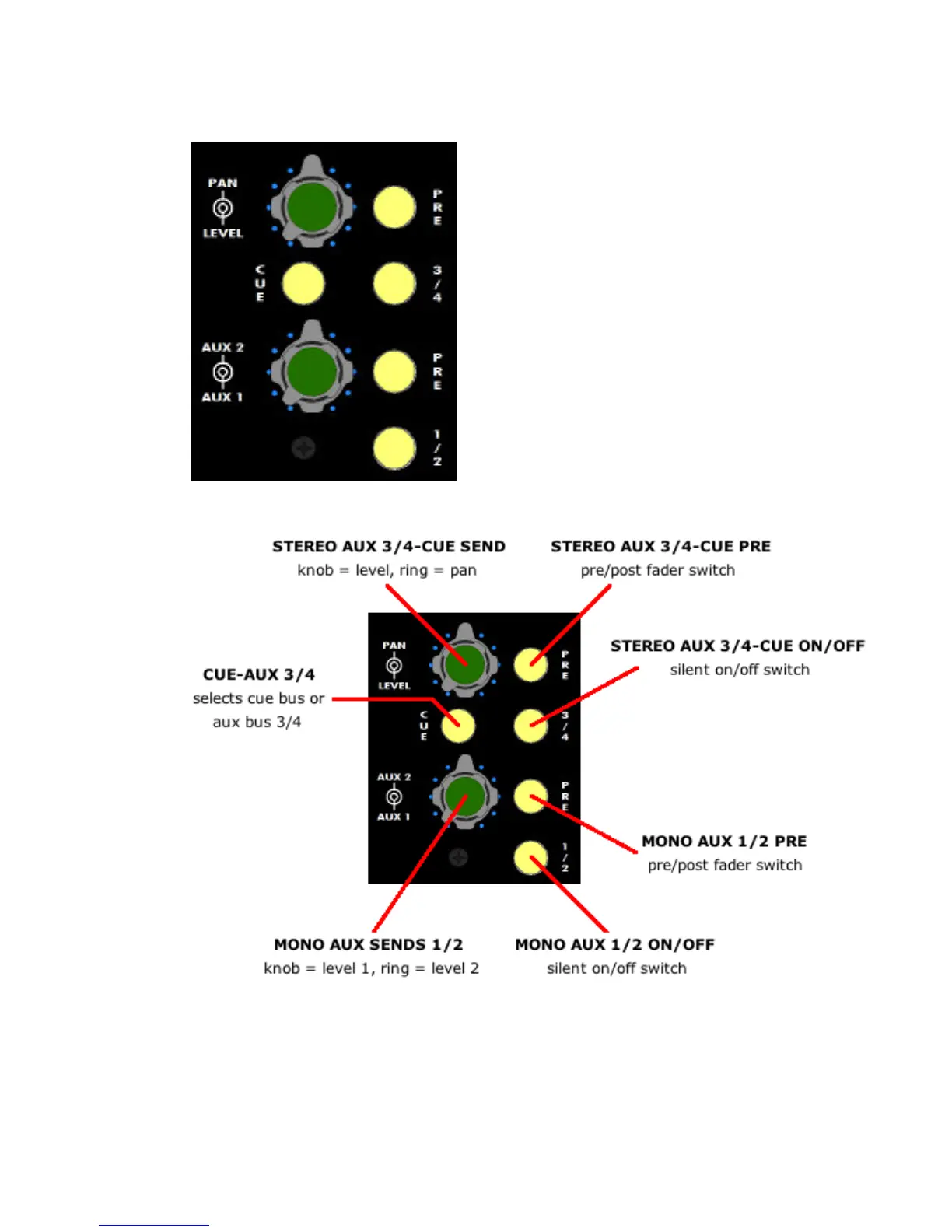

“The BOX” is equipped with four (4) auxiliary
sends fed by two (2) mono auxiliary sends
(1/2), and one (1) stereo auxiliary/cue send
(3/4).
Each pair of sends has pre/post-fader routing
and an on/off switch. The stereo aux send (3/4)
can be routed to feed the stereo cue bus instead
of aux buses 3 & 4.
To support these sends, “The BOX” is equipped
with four auxiliary buses, a stereo cue bus, and
corresponding masters with balanced outputs.
