API “The BOX” Operator’s Manual
48

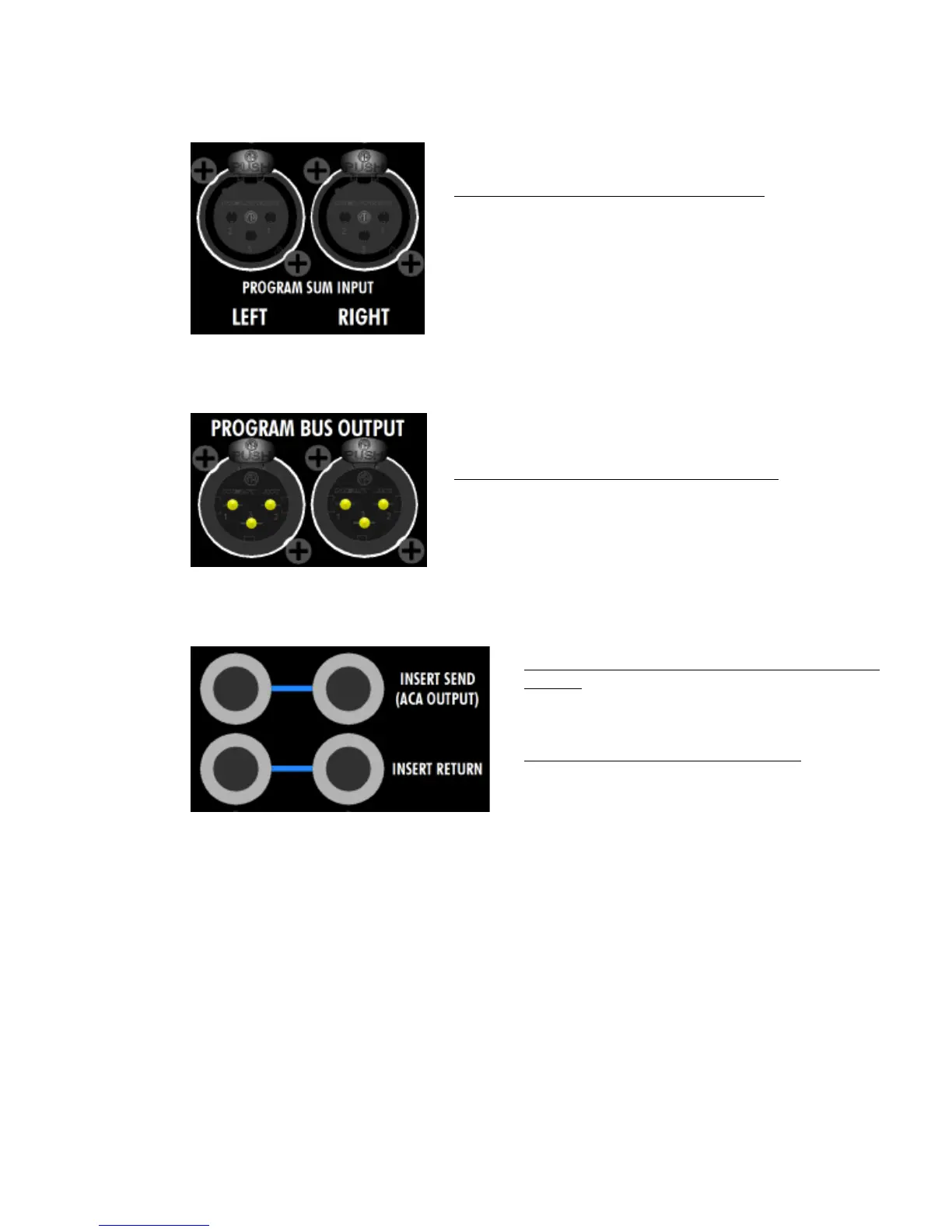

5.6.1 Program Sum Input Connections
5.6.2 Program Bus Outputs
5.6.3 Rear Panel Program Insert Connections
PROGRAM BUS OUTPUT (LEFT & RIGHT): 3-pin male
XLR, balanced, low-impedance, line-level
• Located post-master fader
PROGRAM SUM INPUT (LEFT & RIGHT): 3-pin female
XLR, balanced, low-impedance, line-level
• Located pre-insert and compressor
INSERT SEND (ACA OUTPUT) (LEFT &
RIGHT): ¼” tip-ring-sleeve, balanced, low-
impedance, line-level
INSERT RETURN (LEFT & RIGHT): ¼” tip-
ring-sleeve, balanced, low-impedance, line-
level
