API “The BOX” Operator’s Manual
81

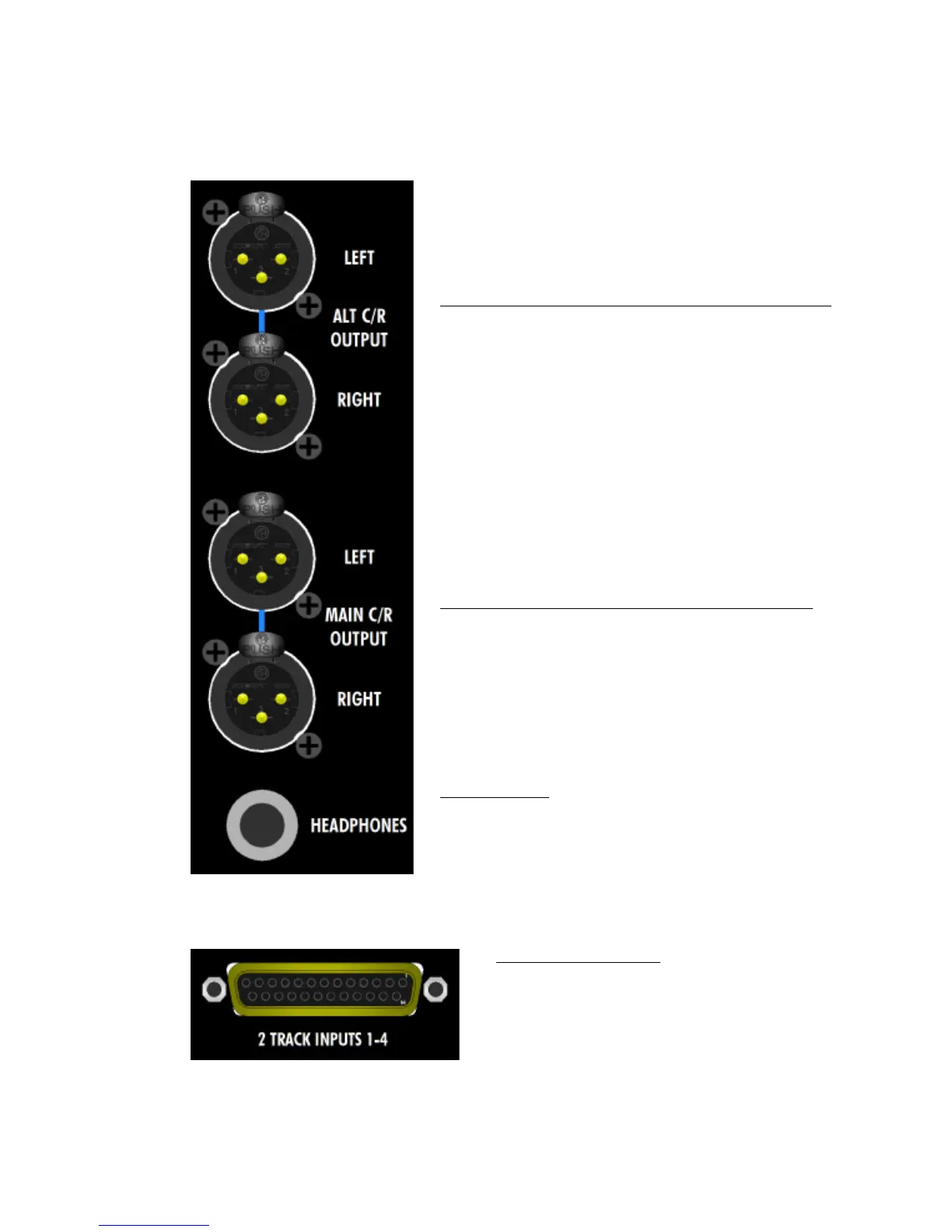

13.5 Control Room Monitor/Headphone Output Connections
Loudspeaker and Headphone Output Connections
External 2-Track Input Connections
ALT C/R OUTPUT (alternate control room outputs): 3-
pin male XLR, balanced, low-impedance, line-level
• LEFT & RIGHT stereo outputs
• Fed from the C/R LEVEL and ALT TRIM when
ALT is engaged
MAIN C/R OUTPUT (main control room outputs): 3-
pin male XLR, balanced, low-impedance, line-level
• LEFT & RIGHT stereo outputs
• Fed from the C/R LEVEL when ALT is not
engaged
HEADPHONES: ¼” tip-ring-sleeve headphone jack
• LEFT & RIGHT stereo output
• Fed from headphone amp outputs when ON is
engaged
• Second headphone jack under armrest
2 TRACK INPUTS 1-4: DB-25, balanced, low-
impedance, line-level
• Standard pin-out: 1-2=2-TRACK 1, 3-4=
2-TRACK 2, 5-6=2-TRACK 3, 8-7=2-TRACK 4
• Routed to the C/R SOURCE and CUE
SOURCE selectors
