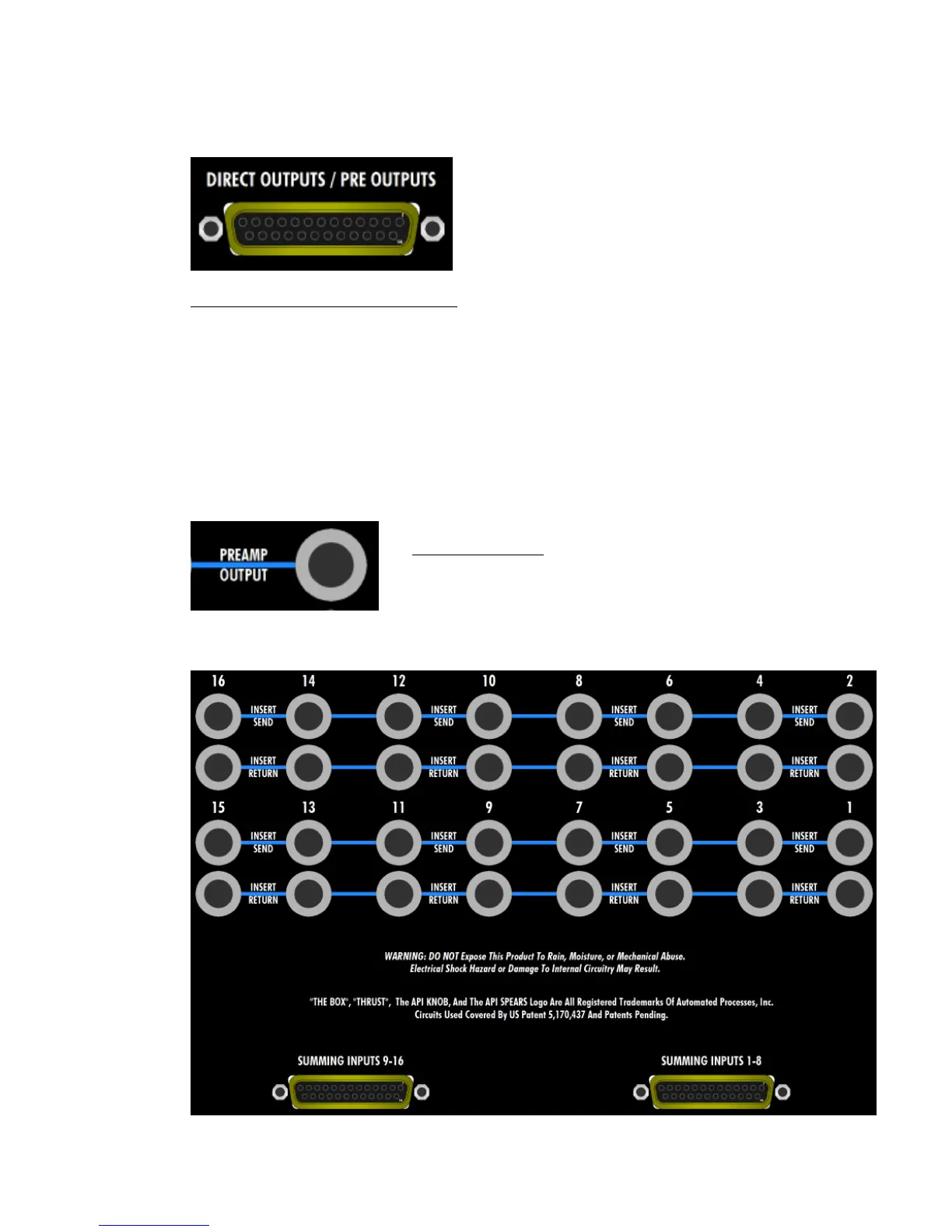

Input Channel Direct and Preamp Output Connections
DIRECT OUTPUTS / PRE OUTPUTS: DB-25, balanced, low-impedance, line-level
• Outputs 1-4: Direct out (post-fader) or preamp output from input channels 1-4
o Fed post-fader/mute by default (direct output)
o Preamp output replaces post-fader output if DIR PRE is engaged
• Outputs 5 & 6: Insert send from input channels 1 & 2
• Outputs 7 & 8: Preamp outputs from input channels 3 & 4
• Standard pin-out: 1-4=direct or preamp outputs 1-4, 5-6=insert send 1-2, 7-8=preamp
outputs 3-4
In addition to the DB-25 connector, input channels 3 & 4 have a separate preamp
output that’s part of an extra set of connections that support the 500 slots.
13.2 Summing Inputs 1-16 Connections
The DIRECT OUTPUTS / PRE OUTPUTS connector
carries direct or preamp outputs from input
channels 1-4, as well as the insert send from
input channels 1 & 2 and the preamp outputs
from input channels 3 & 4.
PREAMP OUTPUT: ¼” tip-ring-sleeve, balanced, low-
impedance, line-level
• ¼” preamp output is available on input channels 3 & 4
