API The BOX - 3.2 Fader, Mute, Solo, and Solo-Safe

API “The BOX” Operator’s Manual
35
3.2 Fader, Mute, Solo, and Solo-Safe
Summing Fader Controls

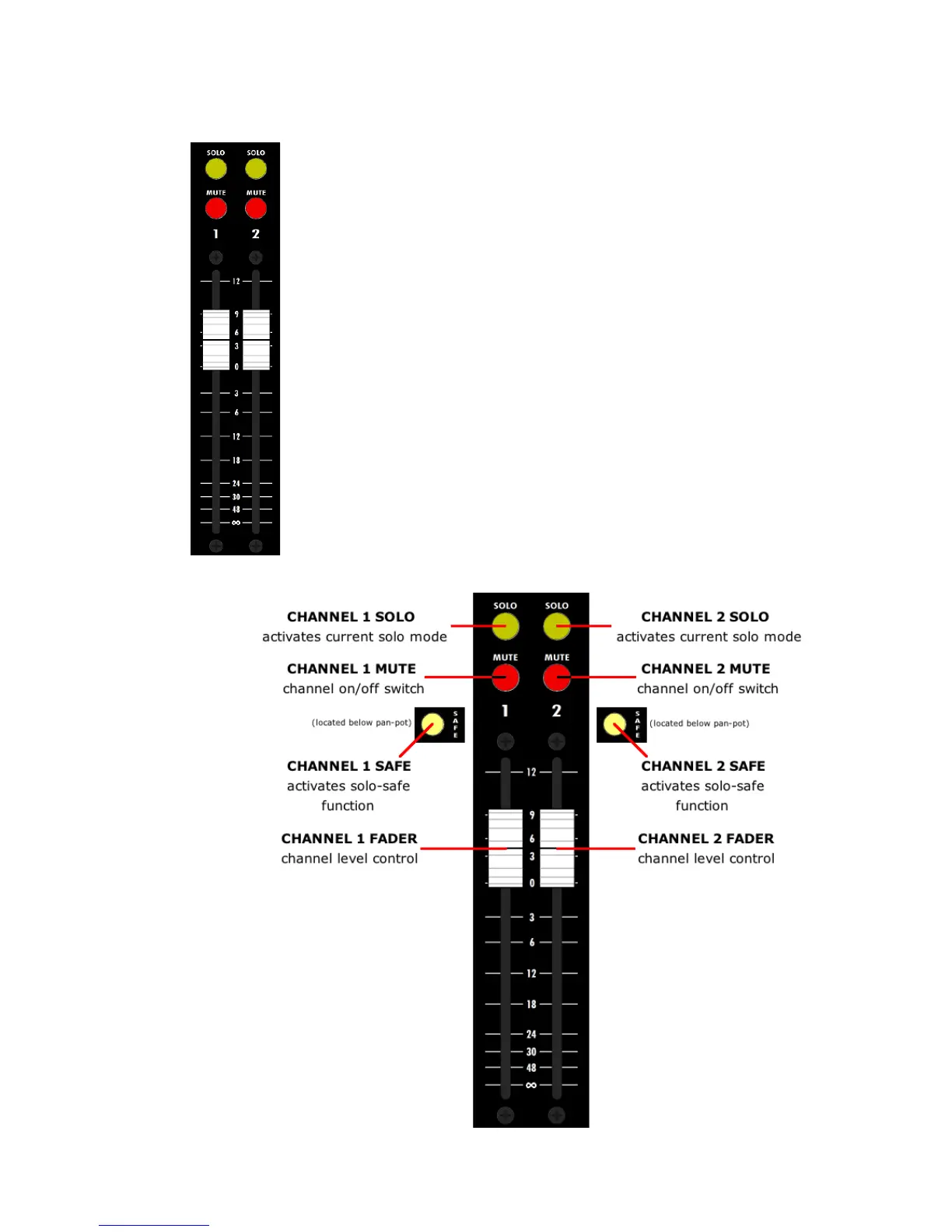

The fader modules with white fader caps contain the faders, MUTE and
SOLO switches for summing inputs 1-16 (1 & 2 shown). The summing
input fader controls for each pair of channels are arranged in a side-by-
side configuration.
These faders are the primary output level controls for the summing
inputs.
The summing input faders can be routed to feed:
• Program bus
• Post-fader auxiliary/cue sends
