API “The BOX” Operator’s Manual

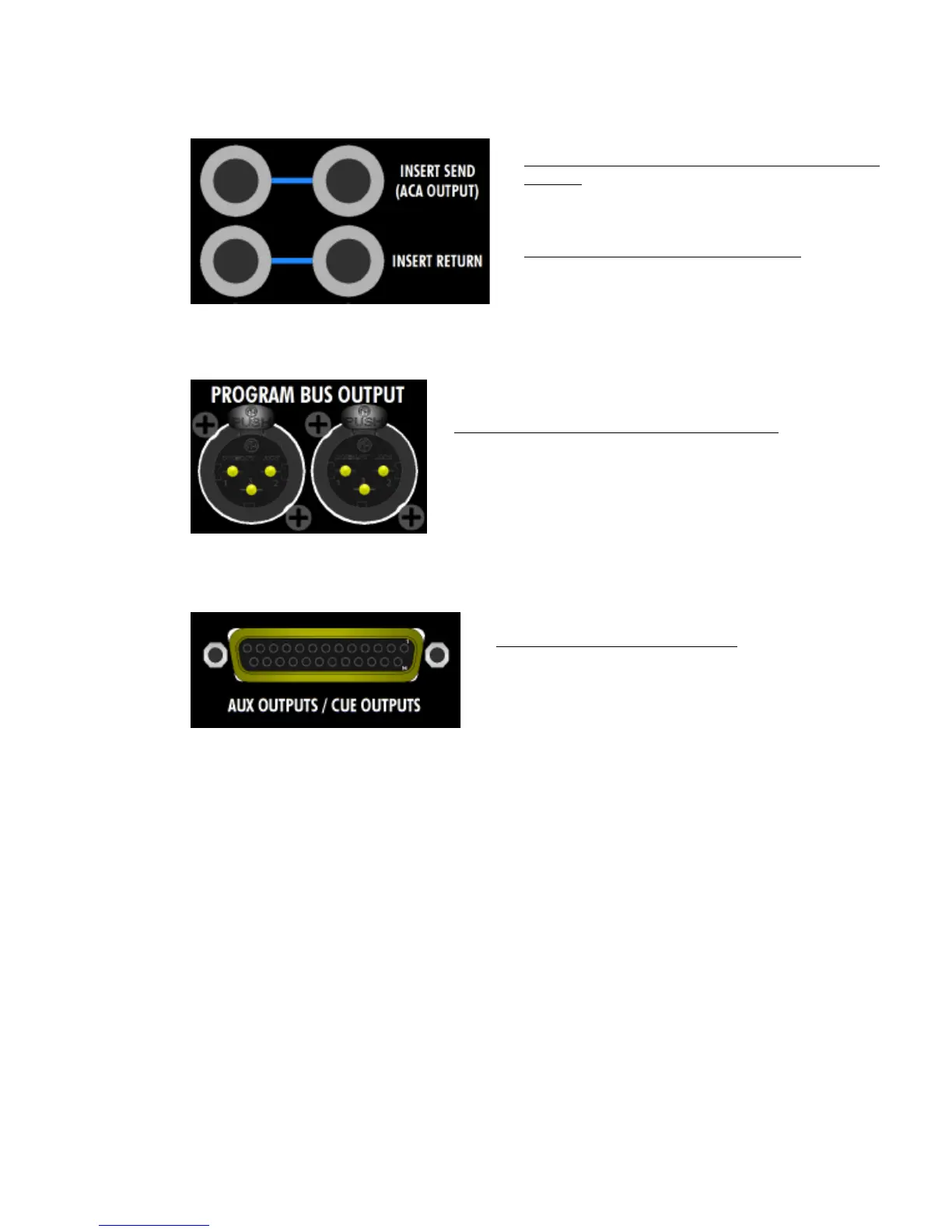

Program Bus Insert Connections
Program Bus Output Connections
13.4 Auxiliary & Cue Connections
INSERT SEND (ACA OUTPUT) (LEFT &
RIGHT): ¼” tip-ring-sleeve, balanced, low-
impedance, line-level
INSERT RETURN (LEFT & RIGHT): ¼” tip-
ring-sleeve, balanced, low-impedance, line-
level
AUX OUTPUTS / CUE OUTPUTS: DB-25, balanced,
low-impedance, line-level
• Fed from the aux and cue masters
• Standard pin-out: 1-4=aux outputs 1-4,
5-6=cue outputs L-R
PROGRAM BUS OUTPUT (LEFT & RIGHT): 3-pin male
XLR, balanced, low-impedance, line-level
• Located post-master fader
