API “The BOX” Operator’s Manual
79

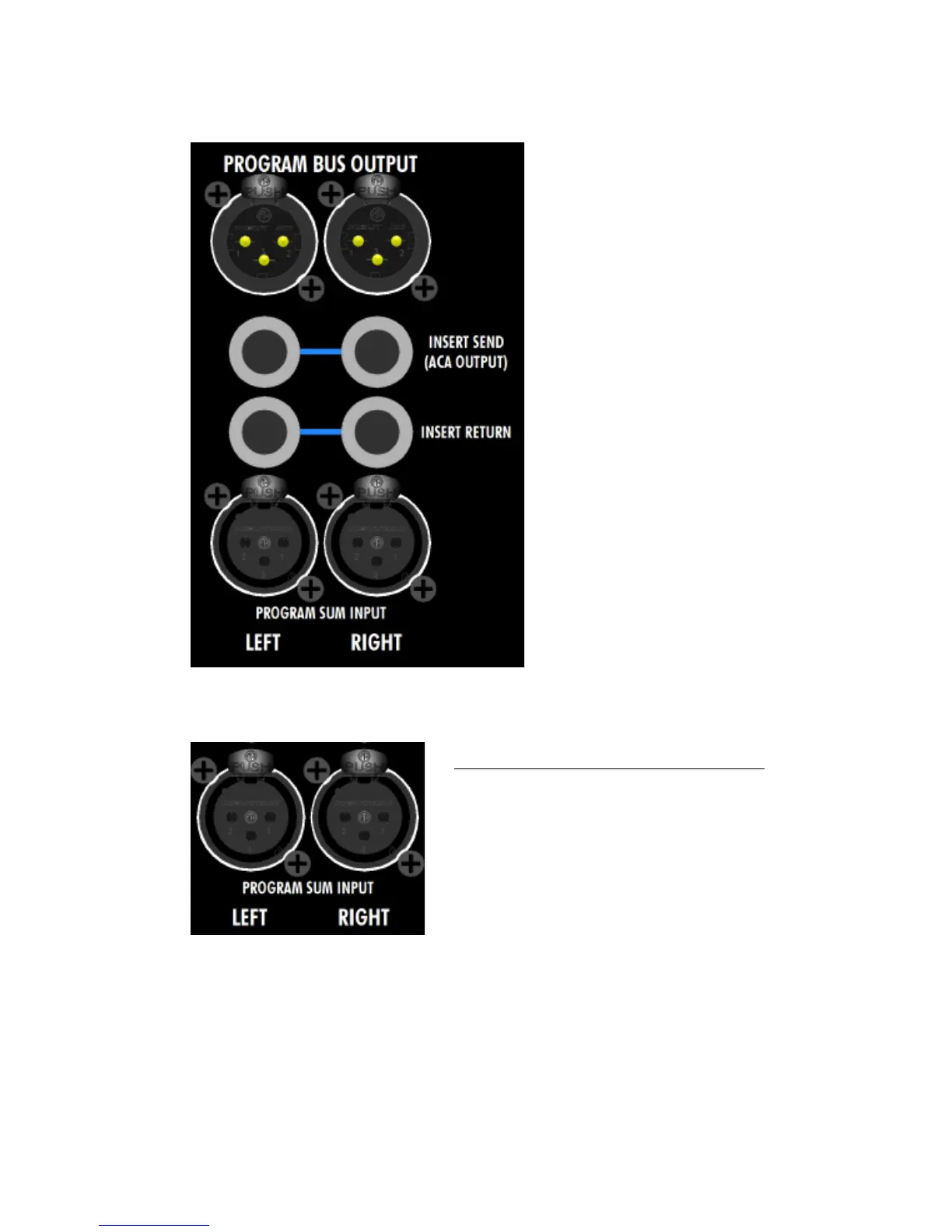

13.3 Program Bus Connections
Program Bus Sum Input Connections
PROGRAM SUM INPUT (LEFT & RIGHT): 3-pin female
XLR, balanced, low-impedance, line-level
• Located pre-insert
The rear panel provides a comprehensive
and flexible set of stereo program master
connections. LEFT and RIGHT program
bus connections include:
• Program bus outputs
• Insert sends
• Insert returns
• Program sum input
