API “The BOX” Operator’s Manual

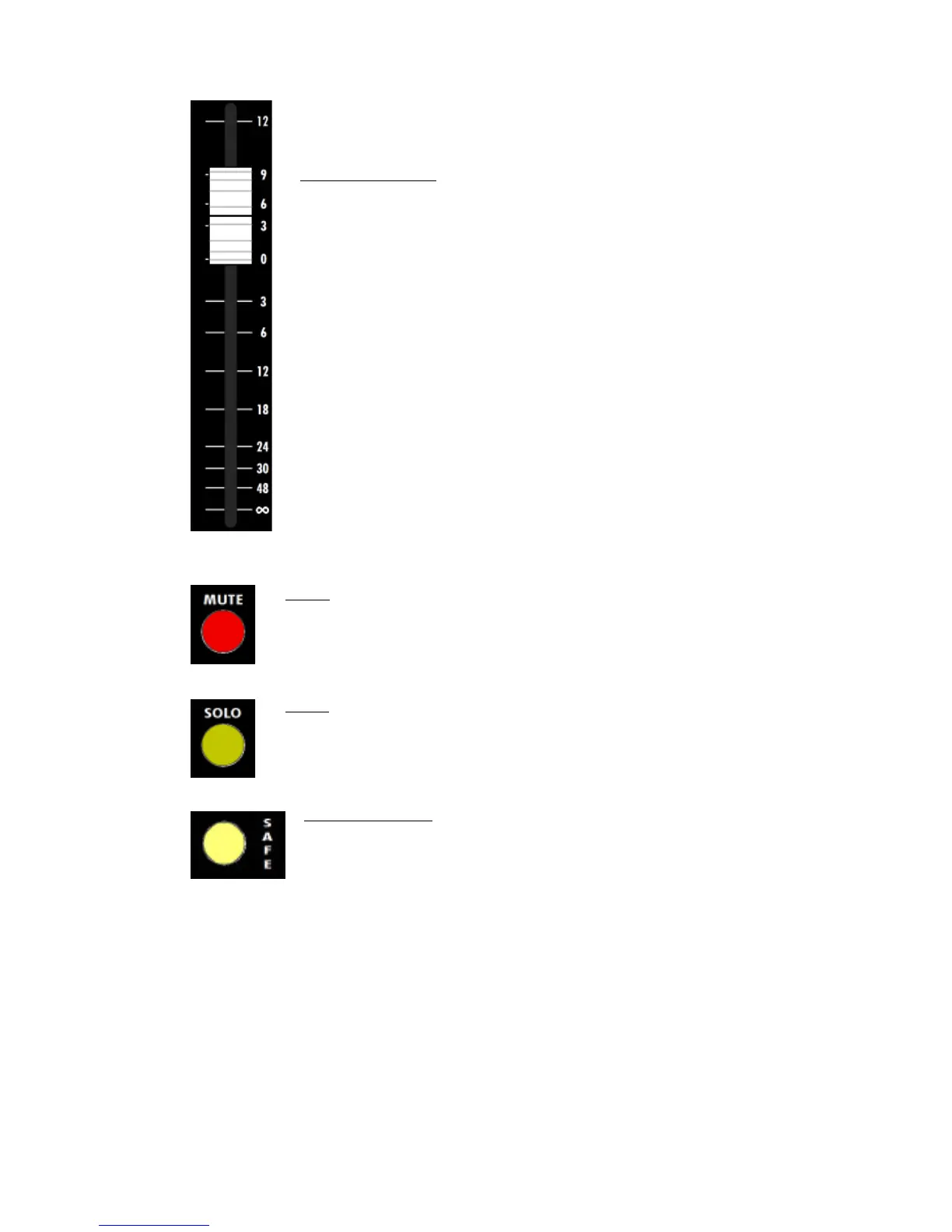

The summing input MUTE and SOLO switches are located just above the fader.
NOTE: The SAFE switch is located below the pan-pot.
Refer to section 9.0 Solo Master for more information regarding the solo system.
MUTE: Cuts the channel output
• Located post-fader in the signal flow
• Illuminates in red when engaged
• Activates on release
SOLO: Activates the current solo function on that channel
• PFL, AFL, or solo-in-place (PFL is default)
• Can be cleared by pressing the SOLO CLEAR switch
• Illuminates in orange when engaged
SAFE (solo safe): Activates the solo-safe function on that channel
• SAFE prevents muting when Solo-In-Place is active and another
channel is soloed.
• Illuminates when engaged
SUMMING FADER: Primary output level control
• 100mm full-size audio-taper fader
• -∞dB to +12dB range
• 0dB is unity gain
• White fader cap
