API “The BOX” Operator’s Manual
94

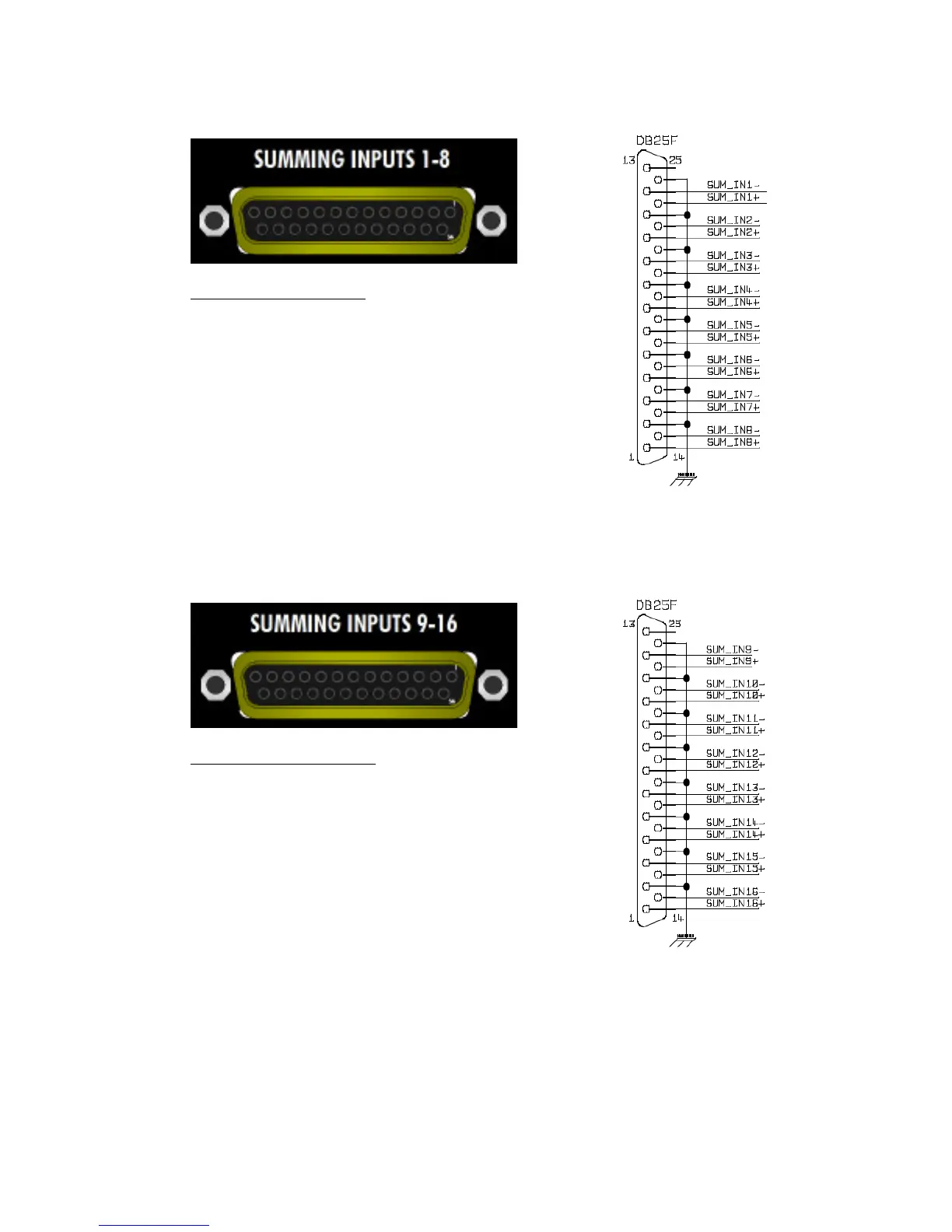

Summing Input Line Input Connections
SUMMING INPUTS 1-8: Standard = API
• 1 = Summing Line Input 1
• 2 = Summing Line Input 2
• 3 = Summing Line Input 3
• 4 = Summing Line Input 4
• 5 = Summing Line Input 5
• 6 = Summing Line Input 6
• 7 = Summing Line Input 7
• 8 = Summing Line Input 8
SUMMING INPUTS 9-16: Standard = API
• 1 = Summing Line Input 9
• 2 = Summing Line Input 10
• 3 = Summing Line Input 11
• 4 = Summing Line Input 12
• 5 = Summing Line Input 13
• 6 = Summing Line Input 14
• 7 = Summing Line Input 15
• 8 = Summing Line Input 16
