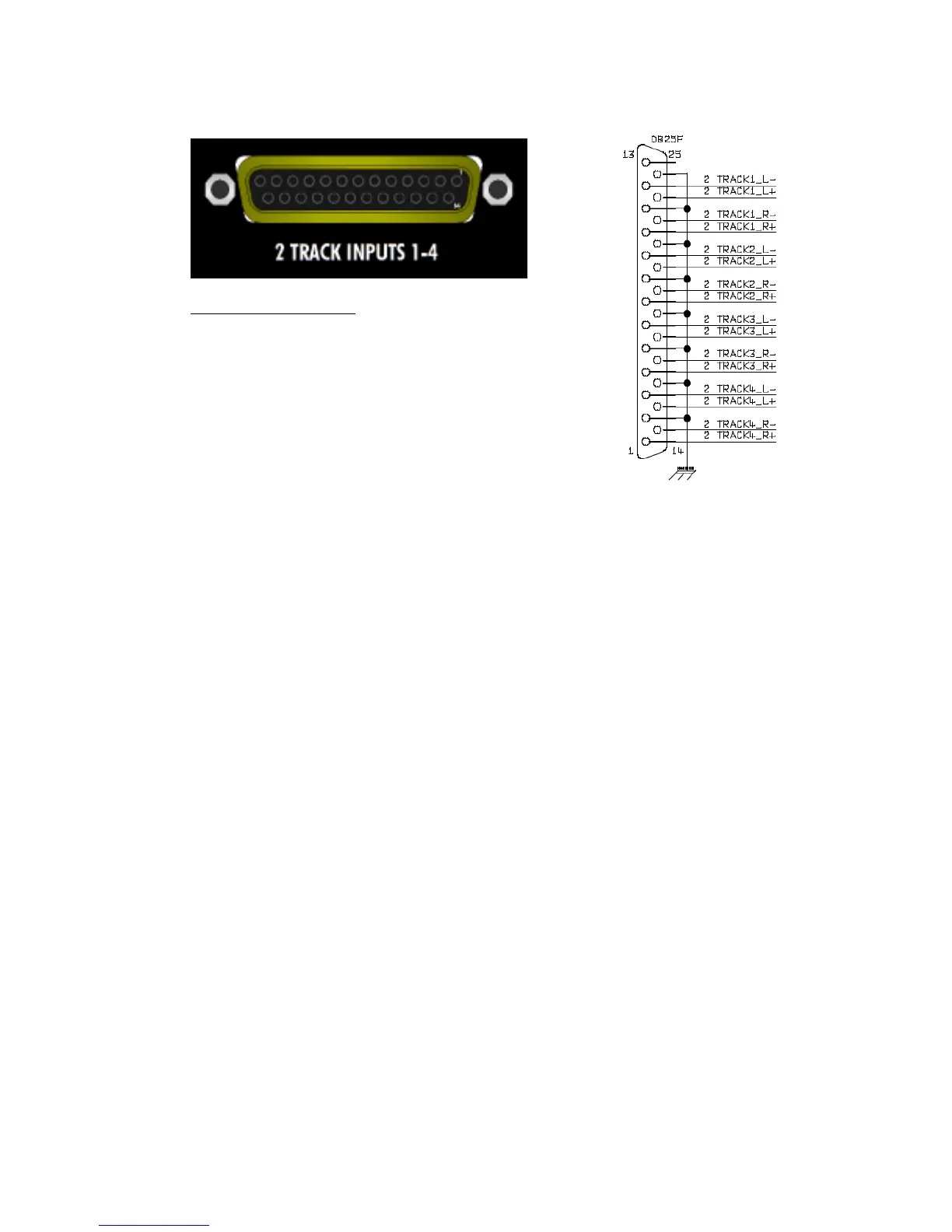

External 2-Track Input Connections
2 TRACK INPUTS 1-4:
• 1 = 2-TRACK 1 Input LEFT
• 2 = 2-TRACK 1 Input RIGHT
• 3 = 2-TRACK 2 Input LEFT
• 4 = 2-TRACK 2 Input RIGHT
• 5 = 2-TRACK 3 Input LEFT
• 6 = 2-TRACK 3 Input RIGHT
• 7 = 2-TRACK 4 Input LEFT
• 8 = 2-TRACK 5 Input RIGHT
