Aplisens APC-2000ALW - Fig. 13. Example: How to Install the Apr-2000 Alw Transmitter with a Valve Manifold to a 2 Pipe; Fig. 12. Example: How to Install the APR-2000 ALW Transmitter on a Vertical or Horizontal Pipe

A1 53 DTR.APC.APR.ALW.03 (ENG)
O
2
"
72
97
161,5

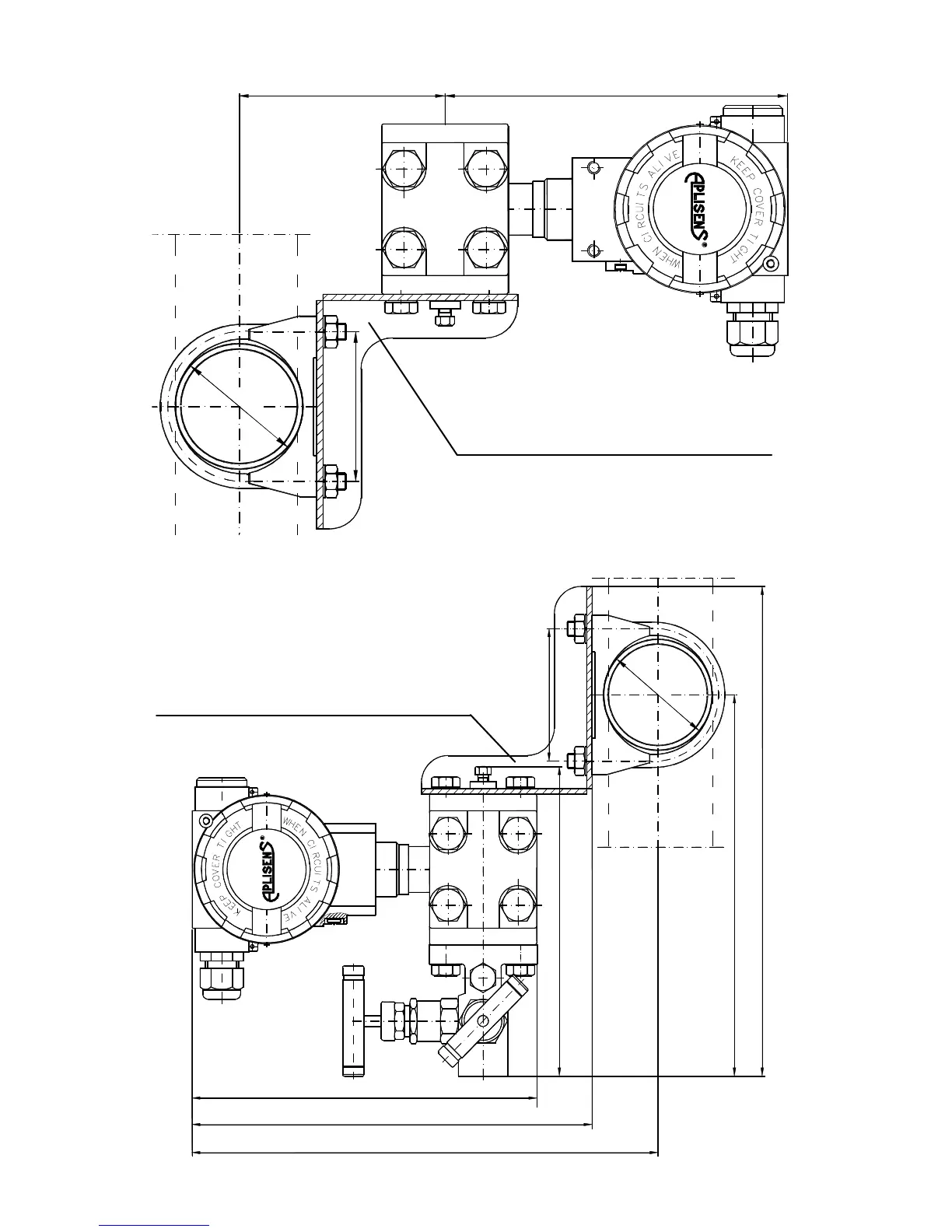

Fig. 12. Example: how to install the APR-2000ALW transmitter on a vertical or horizontal pipe.
223
260
192
166
206
72
265
2
"
∅
Fig. 13. Example: how to install the APR-2000ALW transmitter with a valve manifold to a 2” pipe.
Fastener C2 for fitting differential pressure
transmitters with C-type connection
to a 2” pipe or to a wall.
see catalogue cards „Fitting accessories”
Fastener C2 for fitting differential pressure
transmitters with a valve manifold
to a 2” pipe
see catalogue cards „Fitting accessories”
