Aplisens APC-2000ALW - Fig. 14. APR-2200 ALW Differential Pressure Transmitter with Two Remote Diaphragm Seals (Examples); Fig. 15. APR-2200 ALW Differential Pressure Transmitter with Direct and Remote Diaphragm Seal (Examples)

A1 54 DTR.APC.APR.ALW.03 (ENG)
S-TK type tube flanged
remote diaphragm seal
remote diaphragm seal
S-PK type flush flanged
∅51
S-CompK P-type or
S-CompK GP-type or
remote diaphragm seal
S-CompK -type
M20x1,5
(P-type)
(GP-type)
∅51
G1/2"
∅50, ∅65, ∅80
S-DINK type
remote diaphragm seal

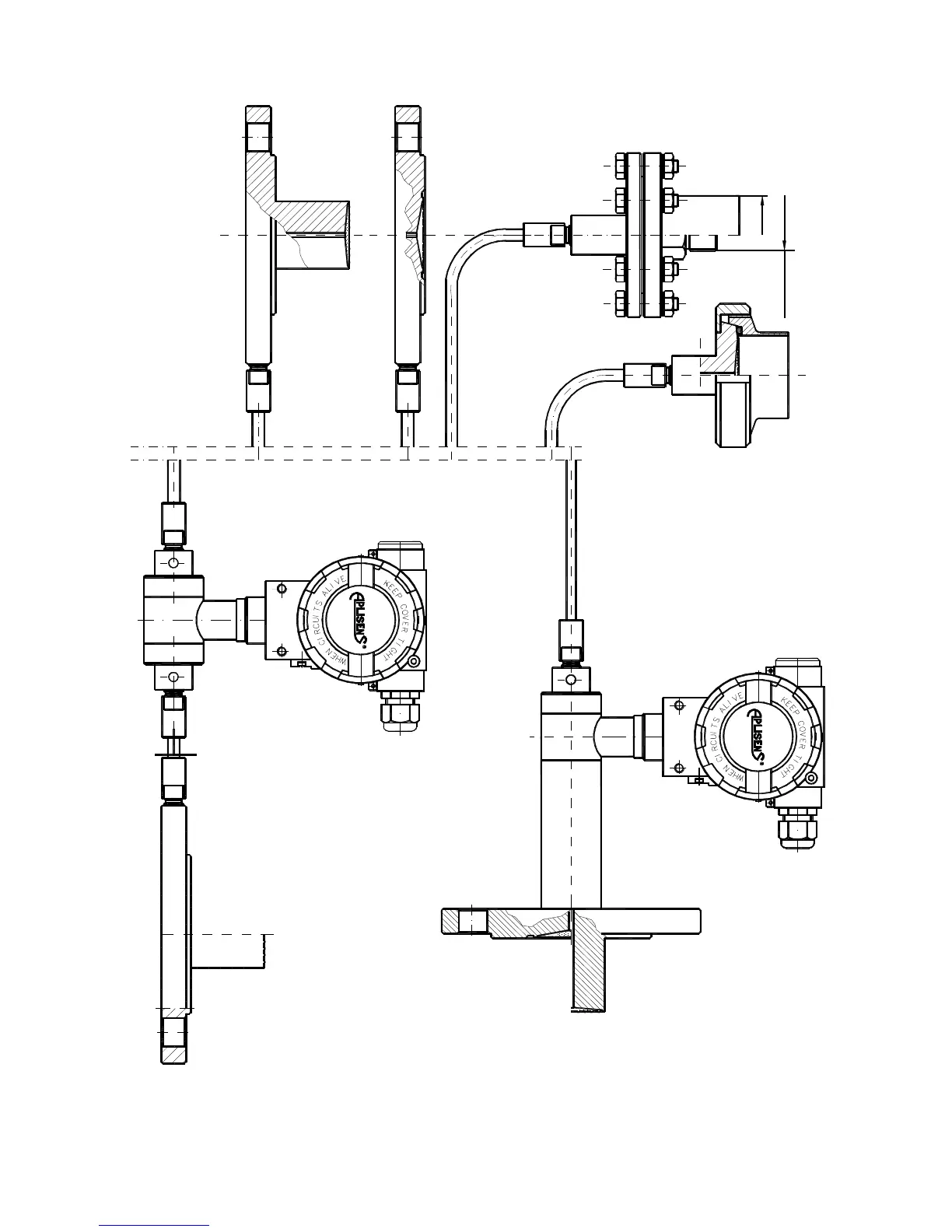

Fig. 14. APR-2200ALW differential pressure
transmitter with two remote diaphragm seals
(examples)
Fig. 15. APR-2200ALW differential pressure
transmitter with direct and remote
diaphragm seal (examples)
