About the Dual 96 Sample Block Module
GeneAmp PCR System 9700 Dual 96 Sample Block Module User Guide 1-3
Module Features
The Dual 96 Sample Block Module is shown below (Figure 1-1).
Sample Blocks
There are two sample blocks in the Dual 96 Sample Block Module. Each holds one
96-well reaction plate.
IMPORTANT! The right sample block is the primary control block. If you are using
only one reaction plate:
• Place the reaction plate you are using in the right sample block.
• Place an empty reaction plate in the left sample block.
POWER
F1
F
2
F
3
F4
F
5
STOP
1
2
3
4
5
6
7
8
9
E
NTER
0
CE
GR2255
GeneAmp
®
PCR System 9700

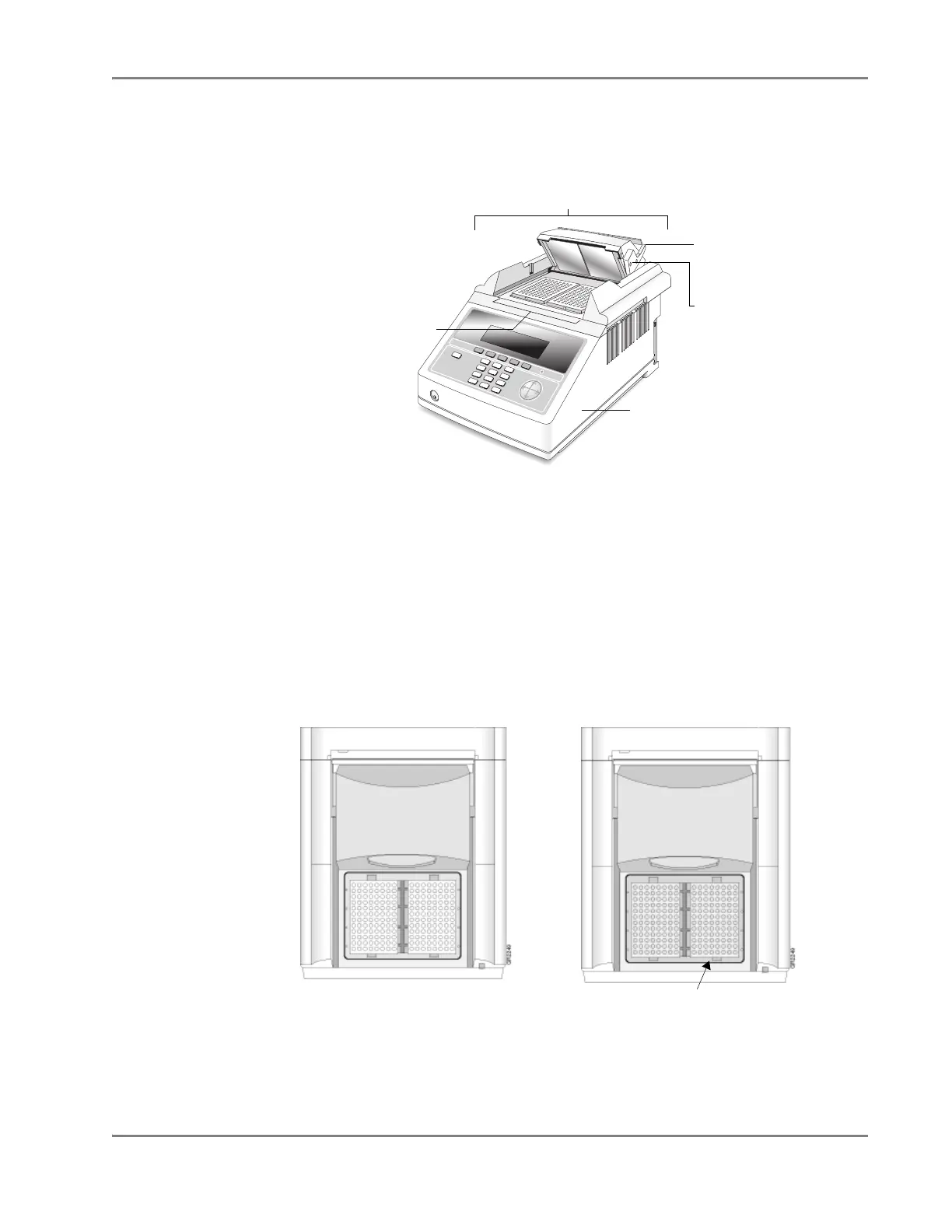

Figure 1-1 Dual 96 Sample Block Module on the GeneAmp
®
PCR System
9700 Base Module
Heated cover
Lever used to move the
lid
Dual 96 Sample Block Module
GeneAmp
®
PCR System 9700
Base Module
Dual 96 sample blocks
Using reaction plates on both sides
If you use just one reaction plate, place it on
the right. Place an empty plate on the left.
