Applus Technologies, Inc. Smog DADdy User Manual VER 8.2 Page 19 of 55

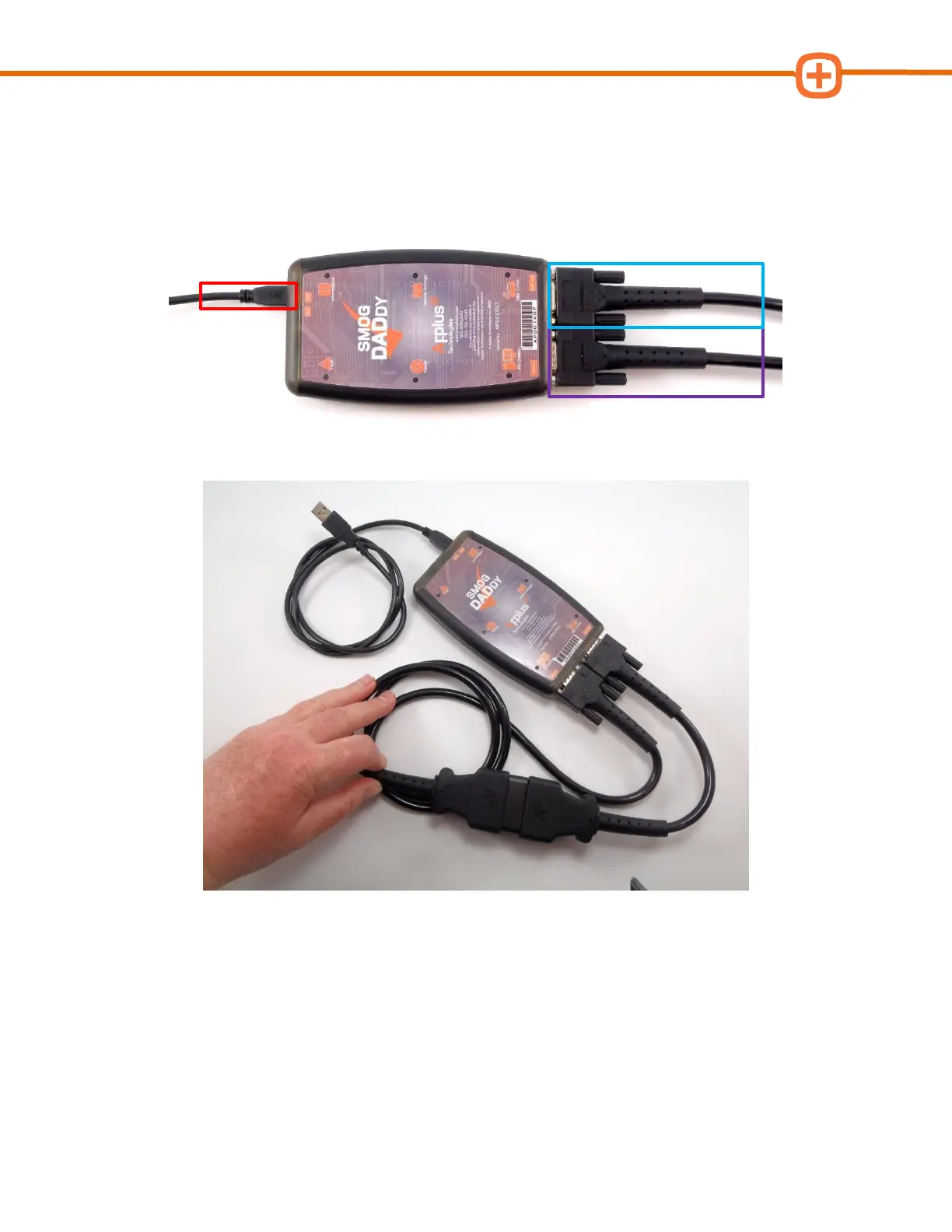

3. Connect the smaller end of the self-test cable to the Smog DADdy self-test port.
4. Connect the larger end of the vehicle DLC cable to the 1 ft. self-test cable.
Vehicle DLC Cable
Self-Test Cable
USB to PC
