CHANGING THE HEADLIGHT BULBS

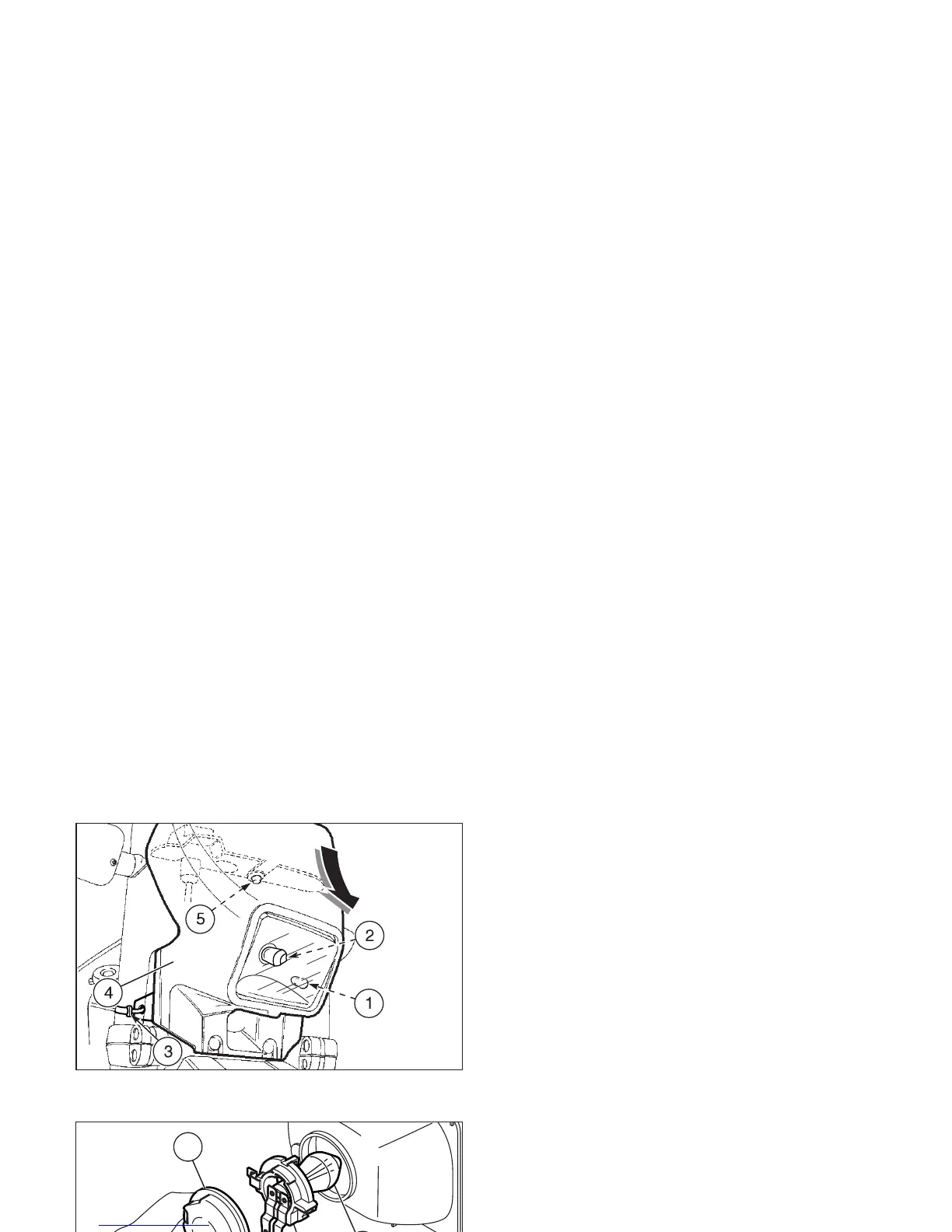

(Fig. 63)
To change the low and high beam bulbs, proceed
as follows:
To extract the bulb electric connector, do
not pull its electric wires.
The headlight contains:
◆ A parking light bulb (1).
◆ A low beam/high beam bulb (halogenous) (2).
To change the bulbs, proceed as follows:
The front part of the fairing (4), complete
with the headlight, remains connected to
the electric wires; do not pull them.
◆ Remove the two ties (3), used to secure front fai-
ring to frame, from forks.
Handle the plastic components with care
and avoid scraping or damaging them.
◆ Withdraw the front part of the fairing (4), complete
with the headlight, downwards and disconnect it
from the pin (5) provided on the dashboard.
Fig. 63
Fig. 64
