APsystems YC500-A Installation/User Manual 5 5
The APsystems 500 series microinverters connect with the split-phase
grid, and operate with most 60 and 72 cell PV modules. For more
information, please see the Technical Data page (p.19) of this manual.
The APsystems YC500 has two independent DC inputs,
each with independent MPPT control and data monitoring.

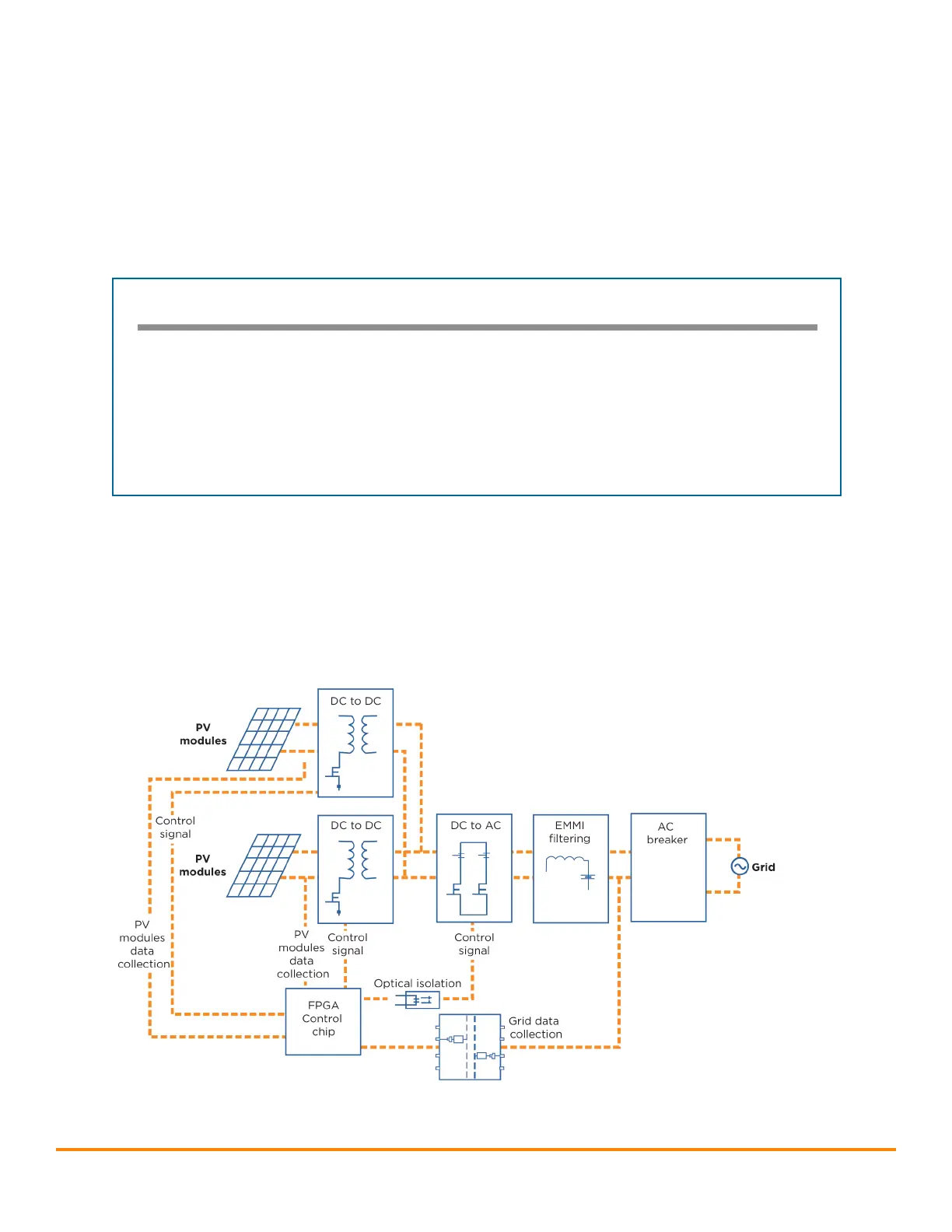

The following gure shows the APsystems YC500 microinverter
schematic:
Figure 2
MODEL NUMBER AC GRID PV MODULE MODULE CONNECTOR
YC500 60Hz/240V 60,72 Cell MC-4 Type or Customize
Maximum units per branch of YC500
Max. parallel combination of APsystems modules = 7/branch for 20A breaker (14 PV modules)
