APT VEYRON E 8KW - LCD Display Icons and Information; Battery Information Display

14
Touchable Function Keys
ESC, USB/Timer setting priorities
Scroll up selection
Scroll down selection
Confirm selection, Enter setting mode

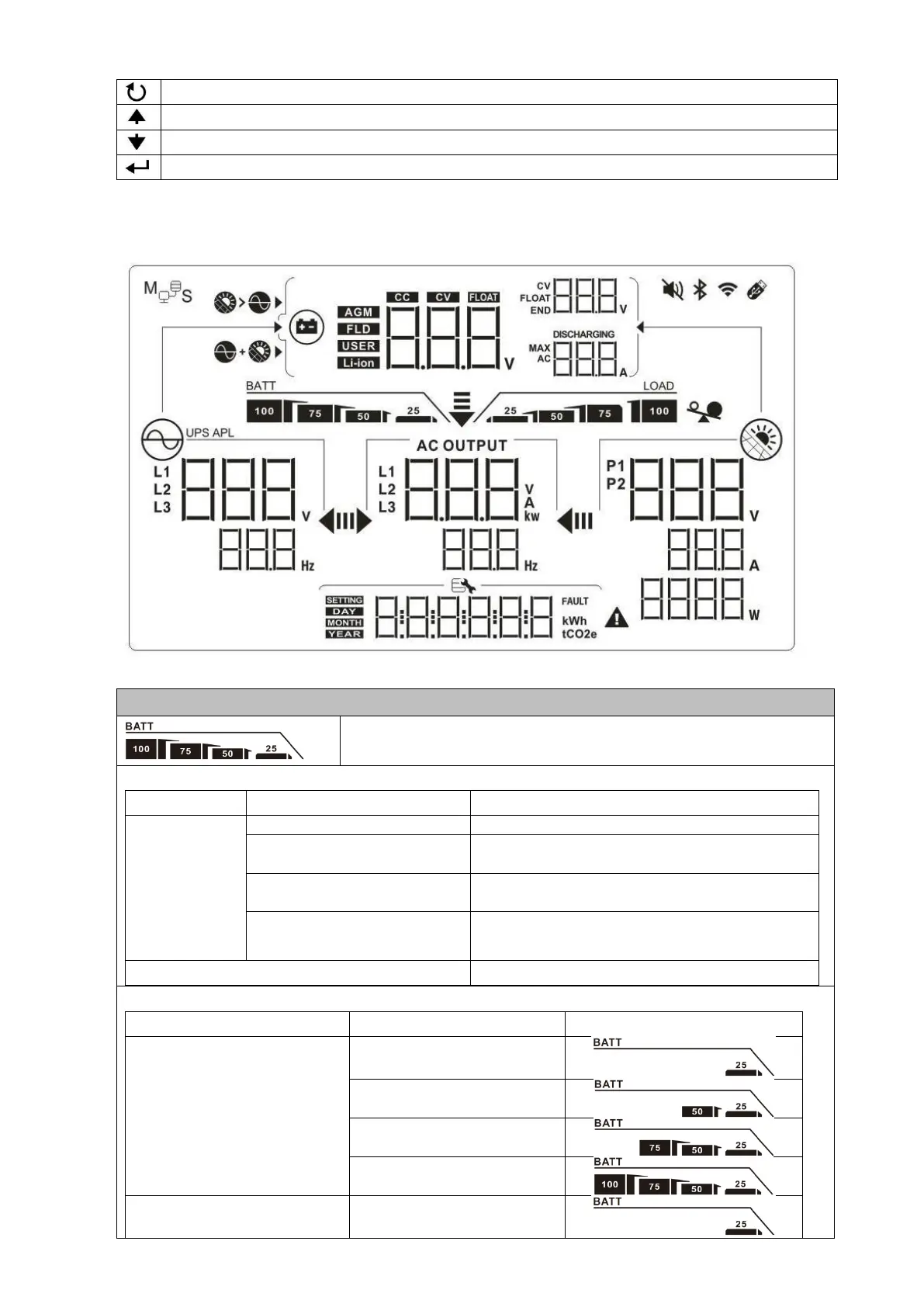

LCD Display Icons
Battery Information
Indicates battery level in battery mode and charging status in line
mode by 0-24%, 25-49%, 50-74% and 75-100%.
When battery is charging, it will present battery charging status.
Status
Battery voltage
LCD Display
Constant
Current mode /
Constant
Voltage mode
<2V/cell
4 bars will flash in turns.
2 ~ 2.083V/cell
The right bar will be on and the other three bars
will flash in turns.
2.083 ~ 2.167V/cell
The right two bars will be on and the other two
bars will flash in turns.
> 2.167 V/cell
The right three bars will be on and the left bar
will flash.
Floating mode. Batteries are fully charged.
4 bars will be on.
In battery mode, it will present battery capacity.
Load Percentage
Battery Voltage
LCD Display
Load >50%
< 1.85V/cell
1.85V/cell ~ 1.933V/cell
1.933V/cell ~ 2.017V/cell
> 2.017V/cell
Load < 50%
< 1.892V/cell
