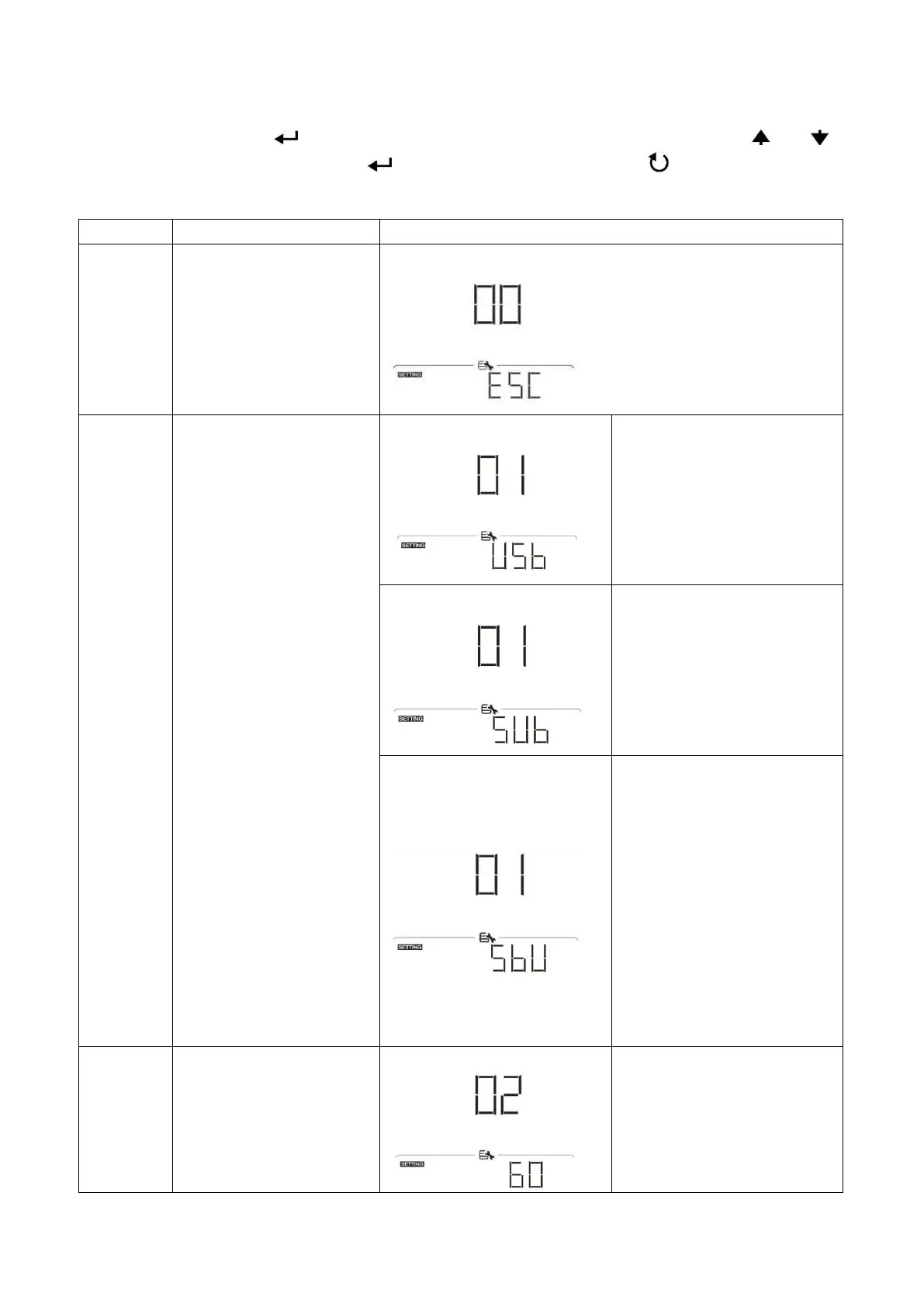

LCD Setting
General Setting
After pressing and holding “ ” button for 3 seconds, the unit will enter the Setup Mode. Press “ ” or “ ”
button to select setting programs. Press “ ” button to confirm you selection or “ ” button to exit.
Setting Programs:
Output source priority:
To configure load power
source priority
Utility will provide power to the
loads as first priority.
Solar and battery energy will
provide power to the loads
only when utility power is not
available.
Solar energy provides power to
the loads as first priority.
If solar energy is not sufficient
to power all connected loads,
Utility energy will supply power
to the loads at the same time.
Solar energy provides power to
the loads as first priority.
If solar energy is not sufficient
to power all connected loads,
battery energy will supply
power to the loads at the same
time.
Utility provides power to the
loads only when battery
voltage drops to either low-
level warning voltage or the
setting point in program 12.
Maximum charging current:
To configure total charging
current for solar and utility
chargers.
(Max. charging current =
utility charging current +
solar charging current)
Setting range is from 10A to
120A. Increment of each click
is 10A.
To Next Page
