3

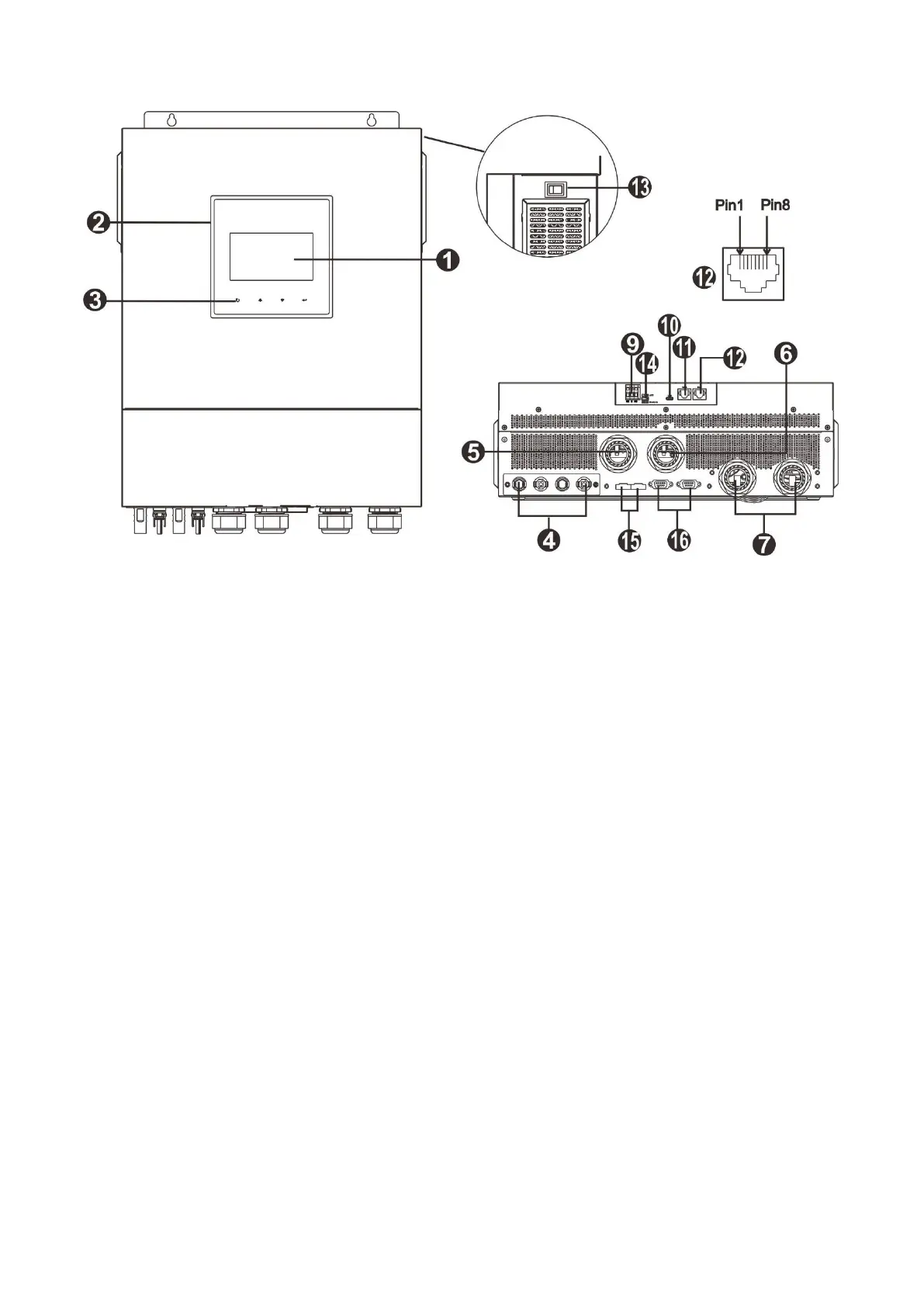

Product Overview
NOTE: For parallel installation and operation, please check
Appendix I.
1. LCD display
2. RGB LED bar (refer to LCD Setting section for the details)
3. Touchable function keys
4. PV connectors
5. AC input connectors
6. AC output connectors (Load connection)
7. Battery connectors
8. Circuit breaker
9. Dry contact
10. USB port as USB communication port and USB function port
11. RS-232 communication port
12. BMS communication port: CAN, RS-485 or RS-232
13. Power on/off switch
14. Bluetooth / WiFi switch
15. Current sharing port
16. Parallel communication port
