Aputure Sidus One - CRMX Receiver in to Wired DMX out

18
3.1.3 Wired DMX OUT
3.2 CRMX Receiver IN to Wired DMX OUT

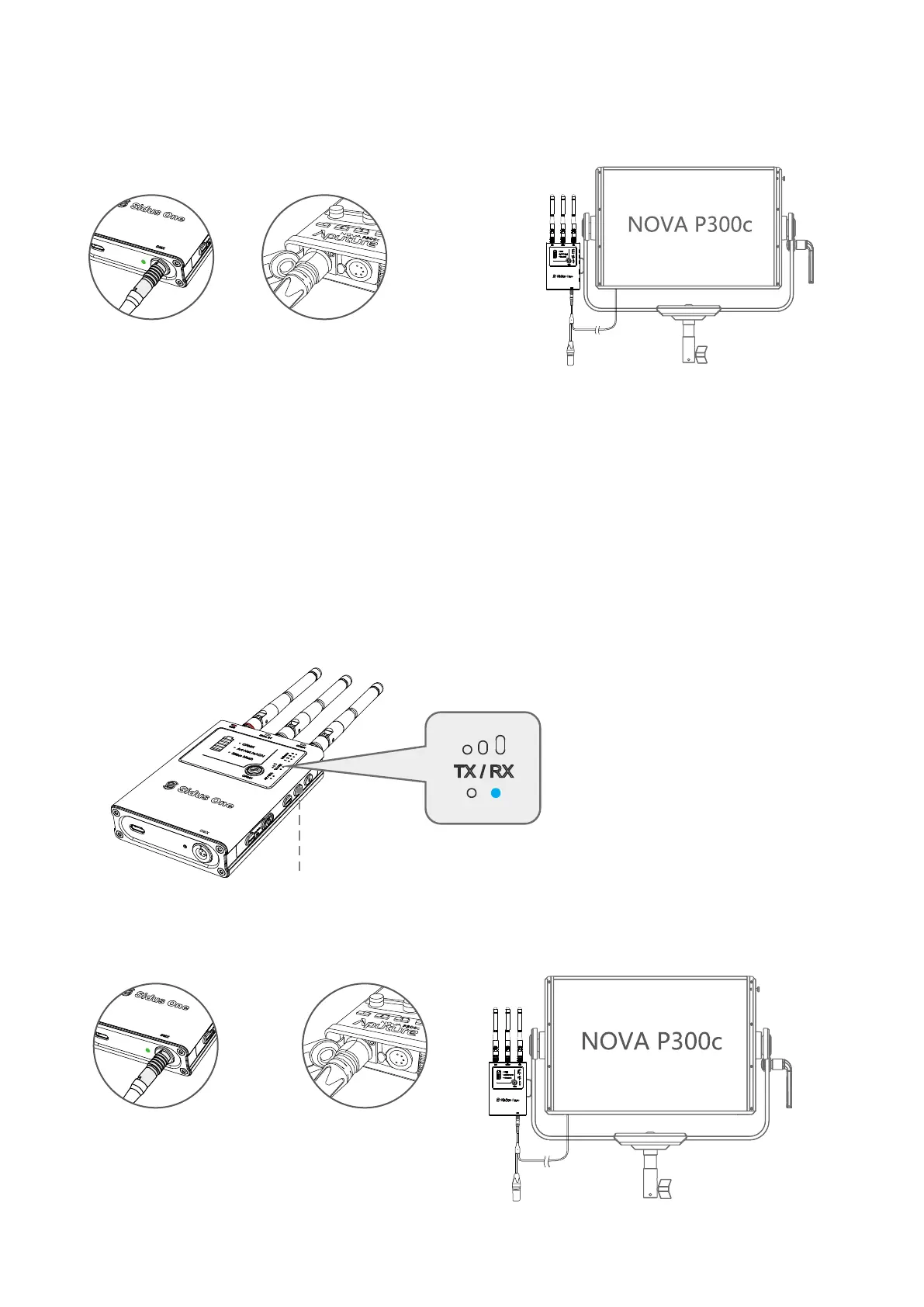

(1) Press and Hold TX/RX button to set to RX mode
(2) Connect Sidus One to the DMX IN/OUT Adapter. Connect the 5 Pin DMX OUT to the fixture's DMX IN port.
*Note: When used with Aputure fixtures that utilize a USB Port for DMX, an Aputure Active DMX Adapter
must be used on the Light. If the product is amaran, an amaran DMX Adapter must be used on the light.
(Sidus One does not receive or transmit data via its USB-C port.)
② Plug the 5 Pin Female Out
cable into a Light's DMX IN
port.
① Insert DMX IN/OUT Adapter
into the DMX Port on the bottom
of the Sidus One.
① Insert DMX Adapter into the DMX
Port on the bottom of the Sidus One.
② Plug the 5 Pin Female cable
into a Light's DMX IN port.
DMX512
Press and Hold to switch between TX/RX mode
DMX512
