23
Step Description Explanation/illustration
5 Fasten the hexagon shaft equipped with
the dispersion plates onto the soil tillage
implement at a distance of 40 cm from
the ground.
6 Connect the hoses to the dispersion
plates, see Connecting the hoses On
page 23 for more information.
4.4 Connecting the hoses
Purpose
The hoses convey the seed from the seed drill onto the field. Before initial operation,
the hoses have to be cut to the required length and installed on the dispersion plates
and the seed drill.
Requirements
The following requirement must be fulfilled for this work step:
• None
Required components, tools and materials
For this work step, the following components, tools and materials are required:
 Hose roll
 Cutting tool
 Hexagon key WAF17 or Torx screwdriver TX 25
 Silicone spray
Procedure
This is how you connect the hoses to the seed drill:
Version 1 (Standard PS and MG):

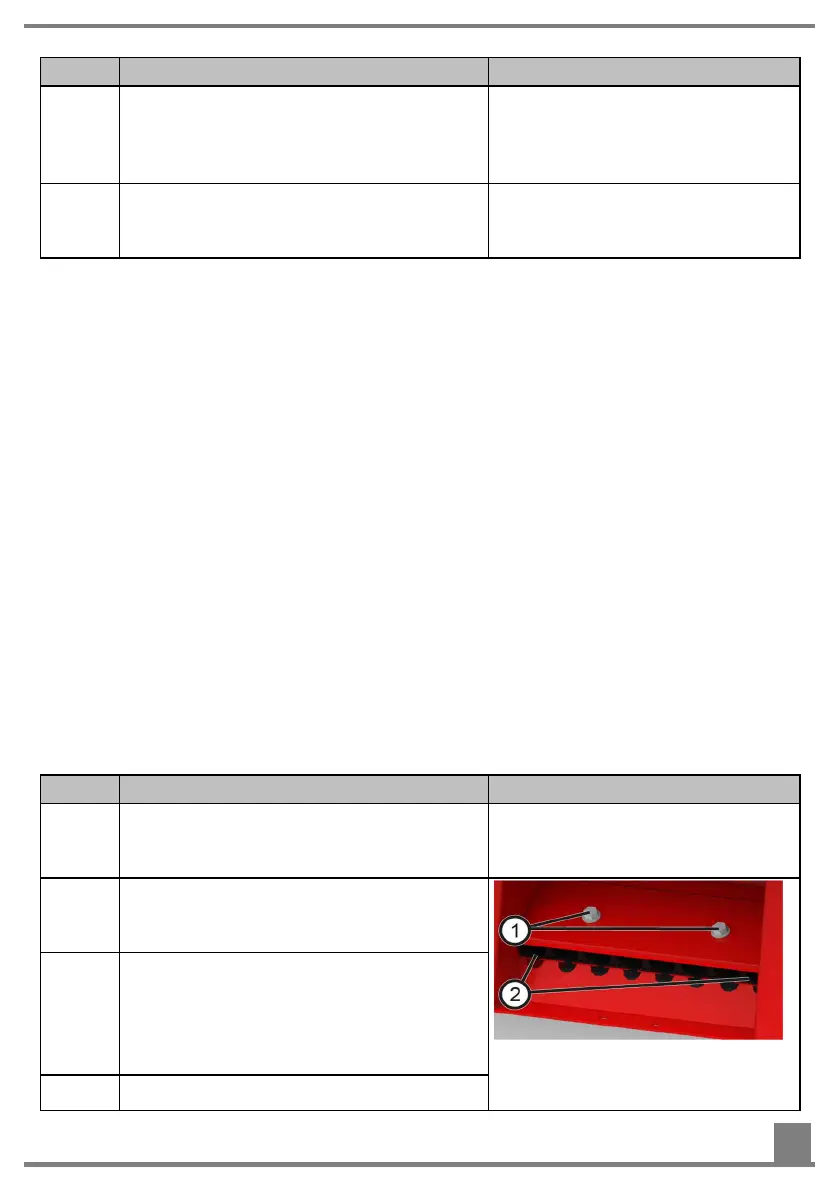

Step Description Illustration
1 Using the cutting tool, cut eight pieces
from the hose roll in the respectively re-
quired lengths.
2 Slightly loosen the clamping screws (1)
on the clamping plate with a WAF17
hexagon key.
3 Insert the ends of the hoses into the
transition pieces (2) up to the stop.
NOTE: If it is too difficult to insert the
hoses, use silicone spray on the outside
of the hose.
4 Tighten the clamping screws (1).
