prevent damage to the seeding shaft. In addition, a flex seeding shaft must be used

for coarse seed types to prevent damage to the seeding shaft or the seed.

Requirements

The following requirements must be fulfilled for this work step:

• The implement is disconnected from the power source, see Disconnecting the

seed drill from the power source On page 40.

Required components, tools and materials

For this work step, the following components, tools and materials are required:

 Hexagon key

 Torx screwdriver TX 30

Procedure

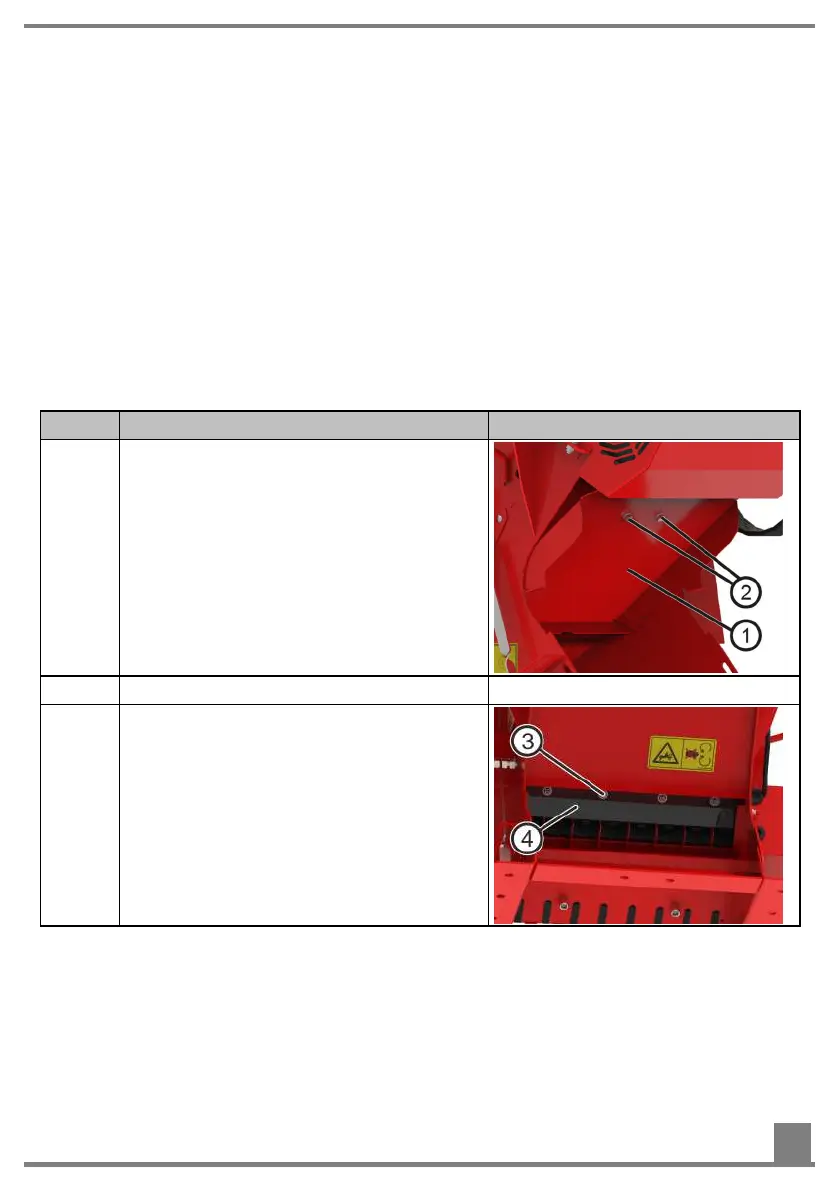

This is how you remove the swell air plate:

Step Description Explanation

1 Loosen the hexagonal bolt (2) on the

calibration slide (1).

2 Remove the calibration slide.

3 Loosen the Torx screws (3) and remove

the swell air plate (4).

4.6 Connecting the hydraulic fan (HF)

Purpose

The hydraulic fan is used for operation with working widths up to 12 m or for higher

spread rates of e.g. wheat.
